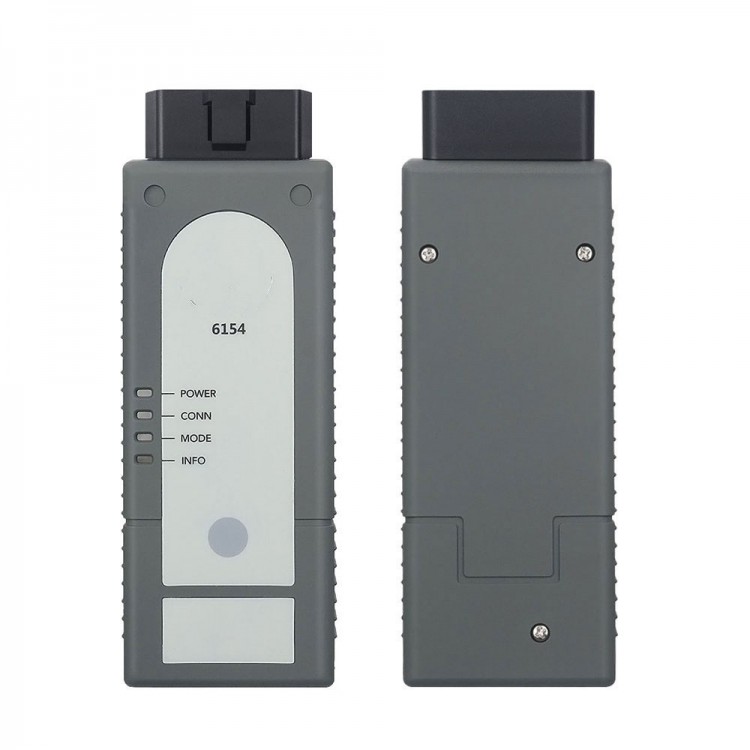

Wifi VAS6154 ODIS Diagnostic Tool (with CD) Upgradable Hardware Version 1.9 for WIN10

Wifi VAS6154 ODIS Diagnostic Tool (with CD) Upgradable Hardware Version 1.9 for WIN10

Description:
WIFI VAS6154 is VAG full system diagnostic and programming interface for VW AUDI, which can read and clear code, dynamic data flow, programming,coding, and personalized settings,including maintenance information systems, technical briefings, circuit diagrams, component drawings, diagnostic guidelines, etc. The latest software is V6.2, which can support WIFI and USB Connection, supporting multi-language. And it also can work with VAS6150 and VAS6160A.

Top Reasons to Get VAS6154:
- Latest diagnostic and programming interface for the applications VAG ODIS-S (Service) and ODIS-E (Engineering), can replace the VAS 5054A and VAS 5055.
- Available for Off-board Diagnostic Information Engineering from V6.2 onward and Off-board Diagnostic Information Service from V3.0.3 onward.
- Support for all VW Audi Skoda vehicles from 2000 onward including NEW & FUTURE MODLES under production.
- Support WIFI & USB Connection: With wireless communication technology, can achieve wireless communication of the vehicle and diagnostic interface. The following countries/areas can use both WIFI & USB Connection: Australia, Bosnia and Herzegovina, Brazil, Canada, Switzerland, Cyprus, Czech, Danmark, Estonia, Finland, Greece, Hong Kong, Israel, India, Ireland, Italy, Lativia, Mexico, Netherland, New Zealand, Poland, Russia, Argentina, Korea, Singapore, Slovenia, Turkish, Ukraine, UAE, United States, United Kingdom. Also support USB module transmission, to ensure the reliability of diagnostic interface data transmission. If your country is not on the above authorized countries, you just can use USB Connection Module.
- Support Multi-language: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech, Russian, Greek, Chinese
- Update by CD: Latest Version is V4.3.3. Note: Do not support Old V19 Software.
- If you want it to work for Seat, Bentley and Lamborghini, please buy VAS 5054A with Old V19 Software. Note: when install the software, please choose 5054A.

VAS6154 ODIS V4.3.3 Computer Windows System Requirements:
- Windows System Language: American English
- Win 7 Professional version
- System C:// have to be NTFS format
- C:// need to have at least 40GB space for installing VAS 5054A

VAS6154 Infrastructure Mode:
- In infrastructure mode, several network-capable devices can be connected together (network subscribers).
- For a wireless network, a WLAN access point is required. This access point forms the connection to WLAN-ready subscribers.

VAS6154 Point-to-Point Connection:
- With point-to-point connection via a wireless network, VAS 6154 creates a radio network. VAS 6154 thereby adopts the role of a radio access point (Access Point). A direct connection is made between the diagnosis unit and the diagnosis interface VAS 6154.
- VAS 6154 is configured using the web-based user interface.

VAS6154 ODIS 4.13 Software New Functions:
- Estimated remaining times are shown for ECU flash operations.
- Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view,used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests
- The measured value display has been improved.
- Documents in GFF are displayed in separate windows.
- One message box will be shown at the beginning of the test drive mode.
- GFF hotfixes can be integrated during diagnostic sessions.
- Danger messages have been revised.
- Stopping of diagnostic sessions may be interrupted.
- Automatic deletion of autosave diagnostic protocols after successful transmission.
- Selection of PassThru diagnostic hardware has been improved.
- ODIS Service Software update has been stabilized.

Technical Data:
- Dimensions: approx. 136x48x25mm
- Weight: approx. 150g
- Power supply: 8-18V via vehicle connector
- Output: approx. 5W
- Temperature range: Storage -20°C to +85°C, operation -20°C to +40°C
- PC interface (wired): USB 2.0 High Speed, 480Mbit/s or Fast Ethernet, 100Mbit/s (via LAN module)
- PC interfaces (wireless): WLAN 802.11 ab/b/g/n 2T2R 300Mbit/s Client Mode (WPA2 EAP-TLS, WPA2 PSK)
- AP mode (WPA2 PSK)

Package Included:
- 1 x Diagnosis Interface VAS 6154
- 1 x USB Cable
- 1 x CD

Note:
- Free software in the CD is version 5.1.6.
