WIT 16-Channel Steering Gear Servo Motor Controller Board Development Board Driver Wireless Bluetooth

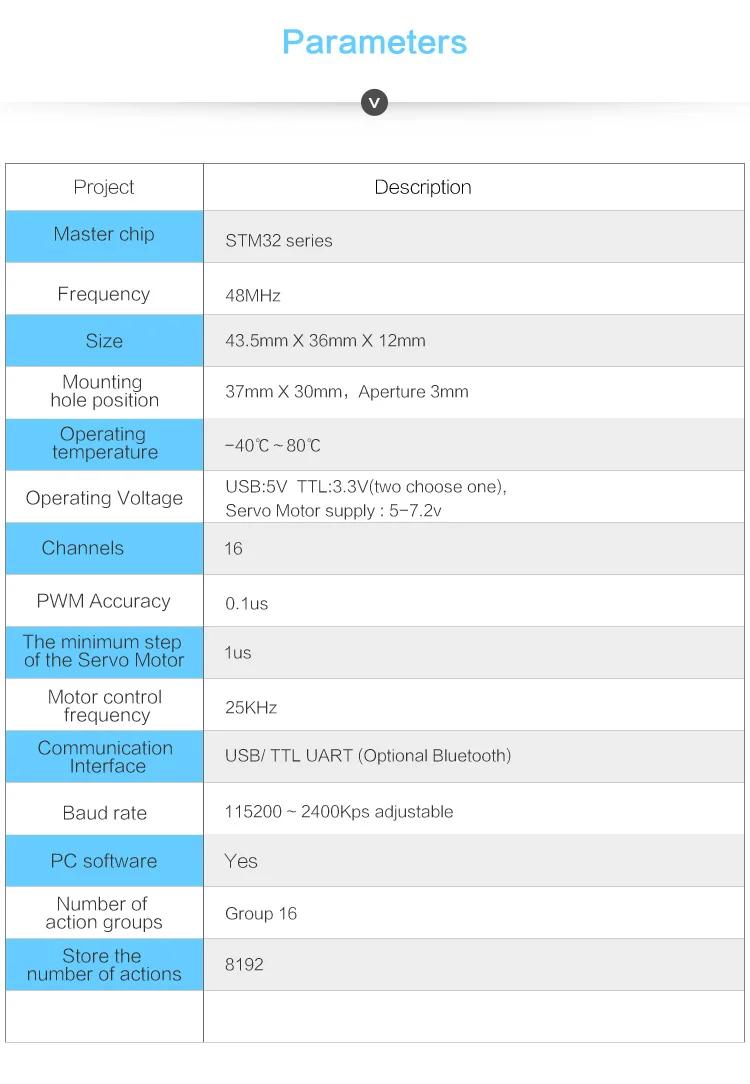

Specification:

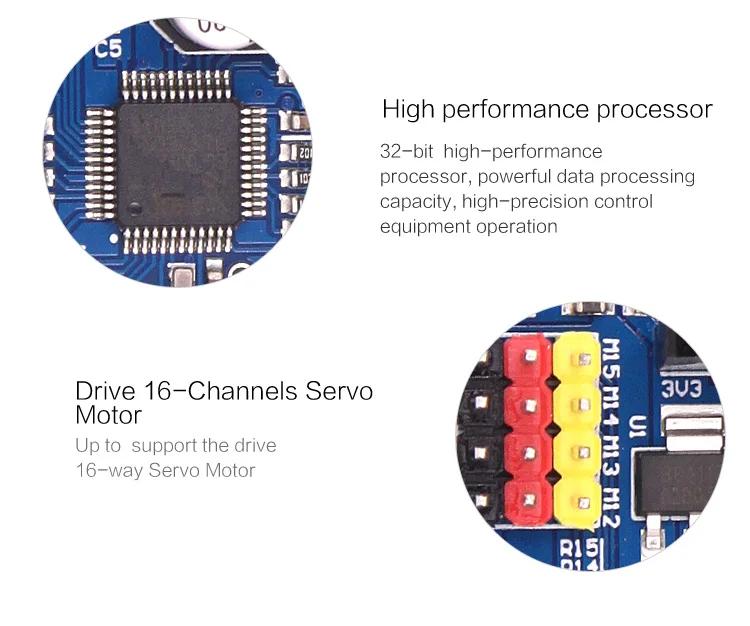

- Master chip: STM32
- Main frequency: 48MHz

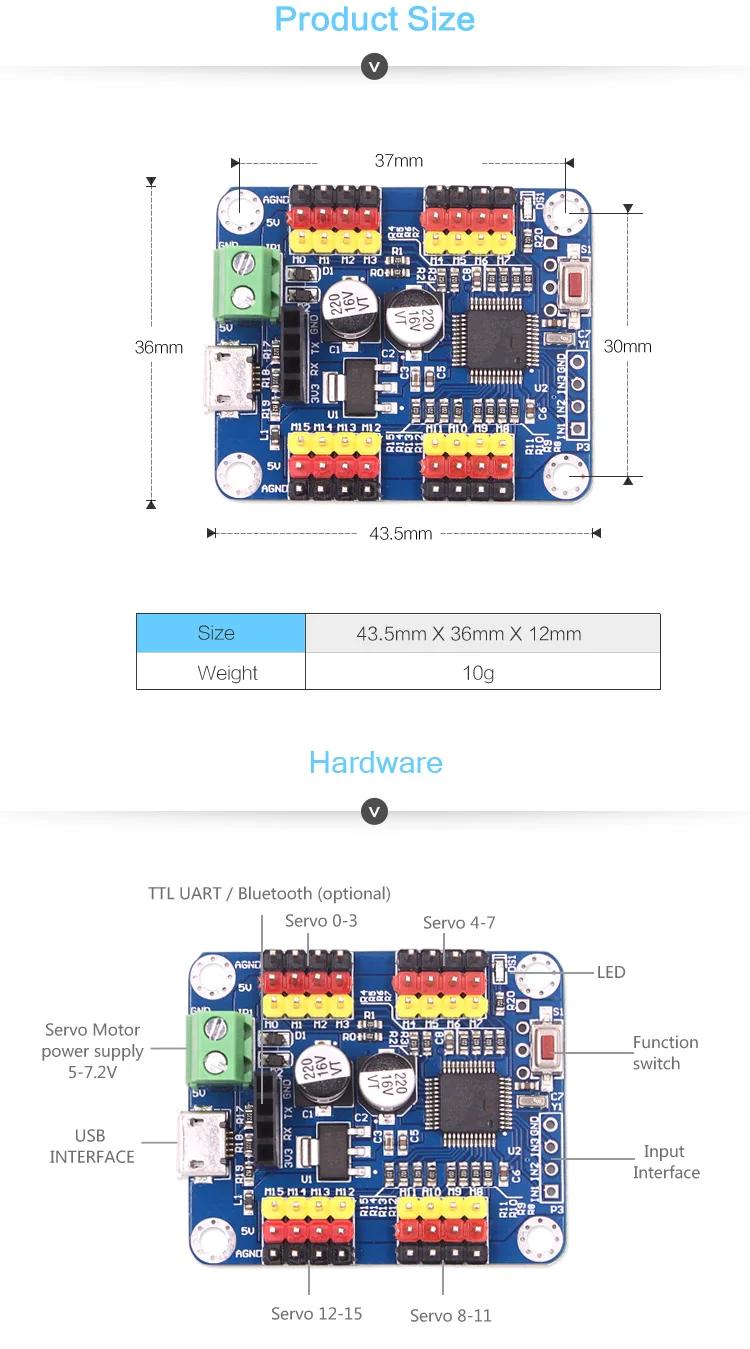

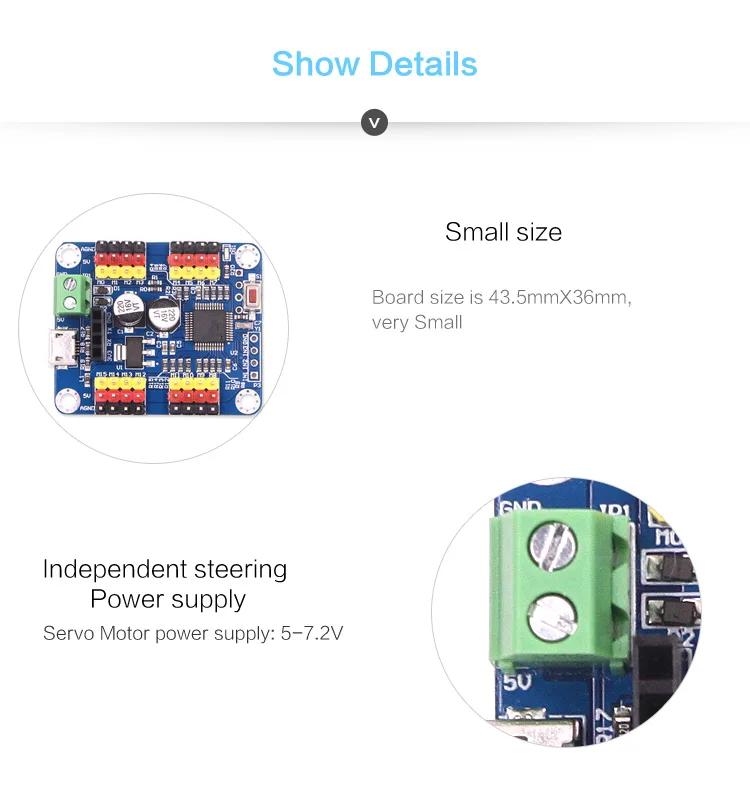

- Size: 43.5 x 36 x 12mm
- Installation hole: 37 x 30mm, hole diameter of 3mm
- Using voltage: USB power supply 5V, servo motor power supply 5 ~ 7.2V
- Using temperature: -40 ~ 80°C
- Motor channel: 16 channels
- PWM precision: 0.1us
- Servo step length: 1us

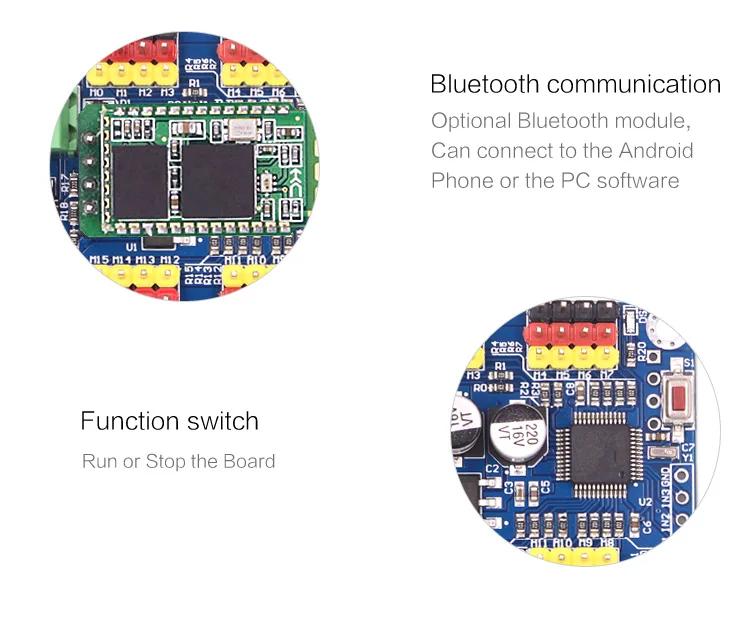

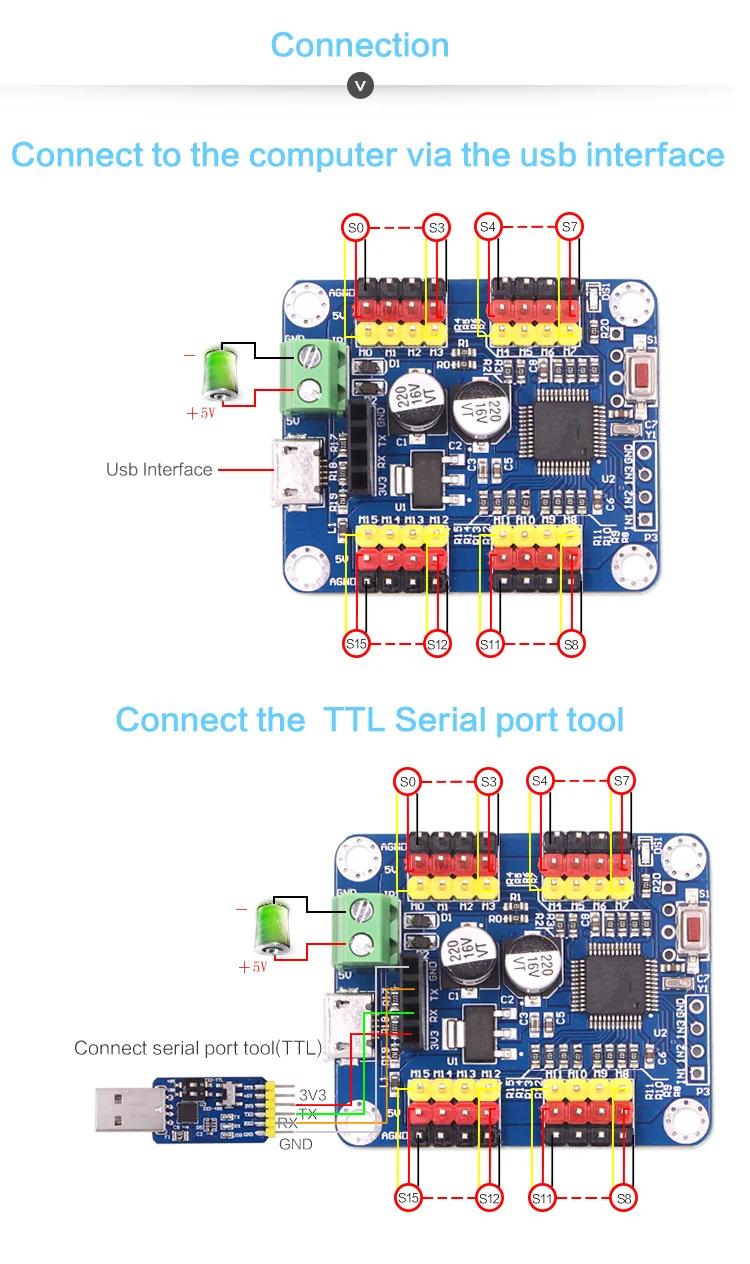

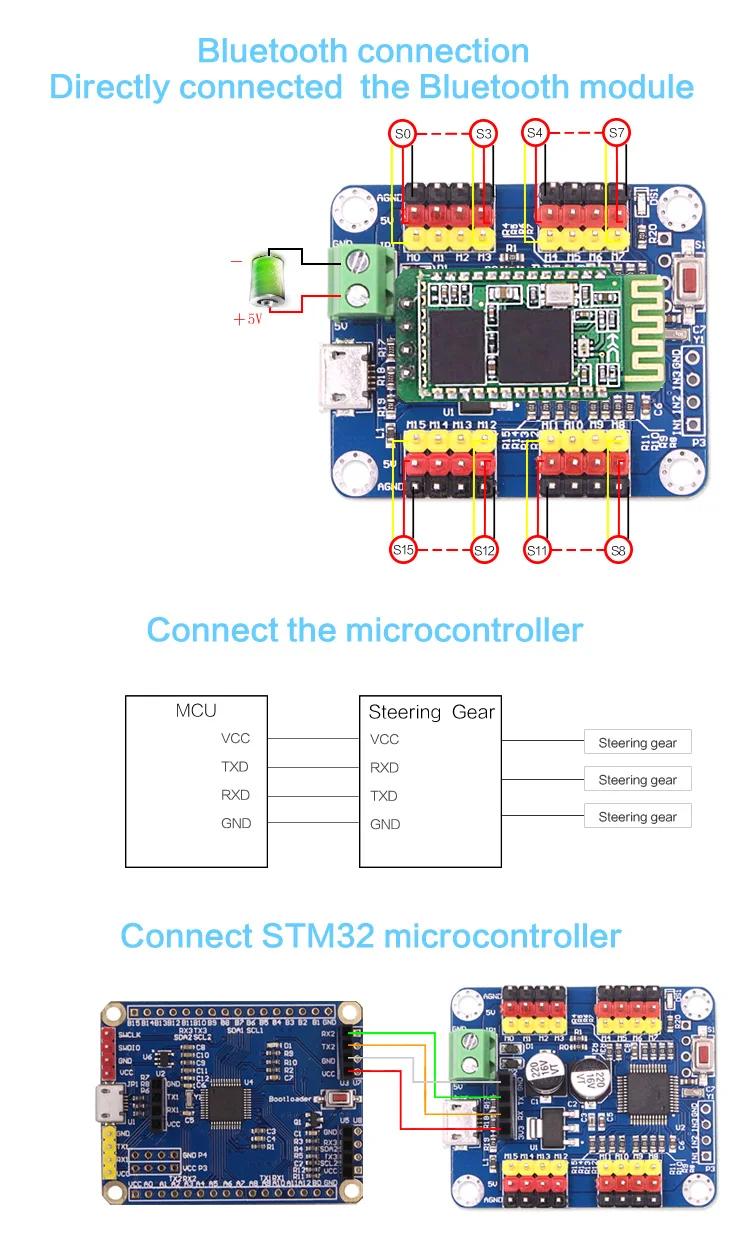

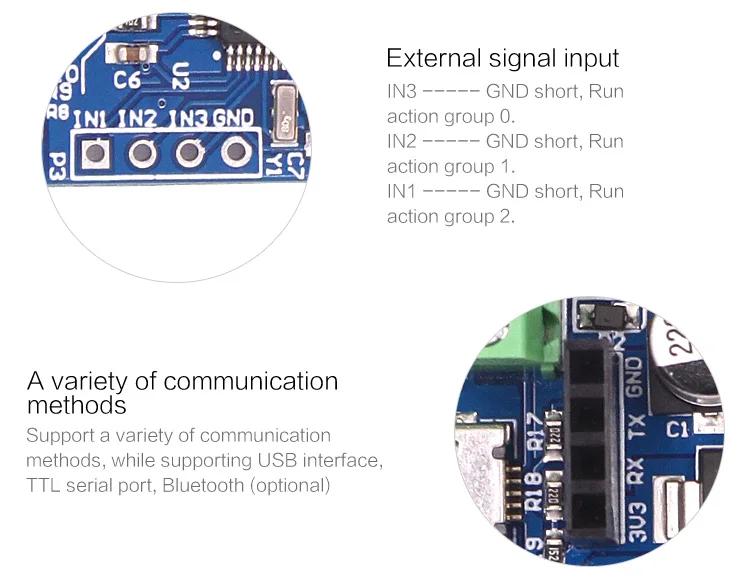

- Communication method: Type-C/Bluetooth program
- Baud rate: 9600

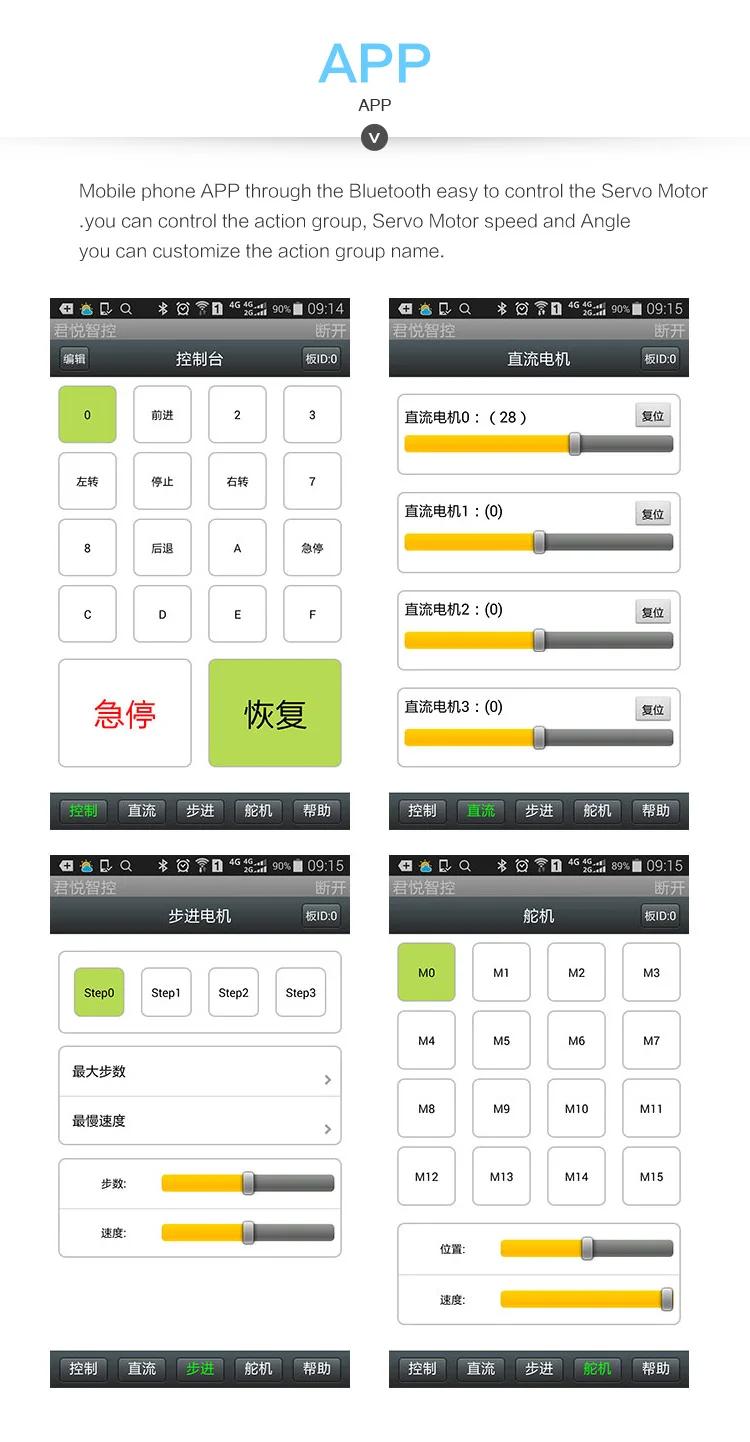

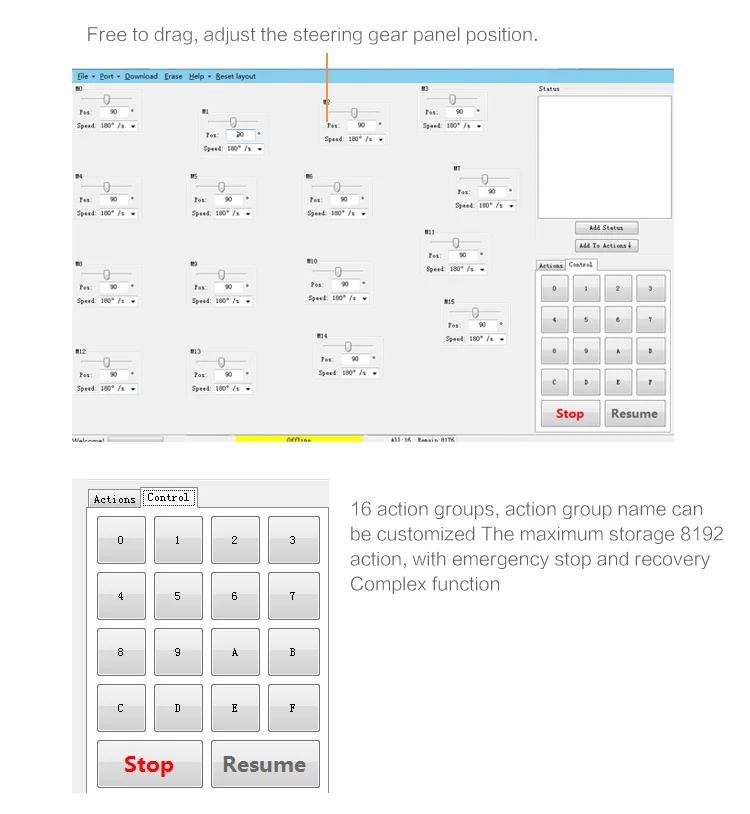

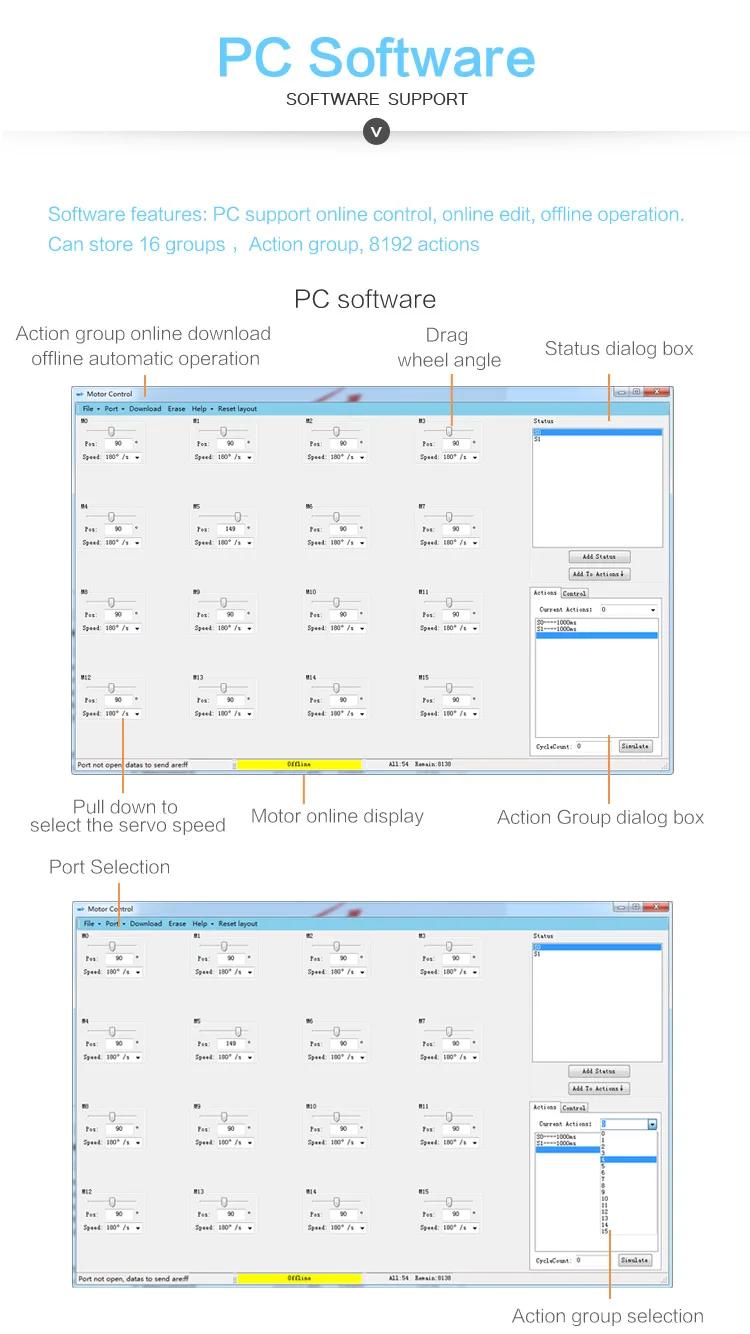

- Upper computer software: upper computer, mini program

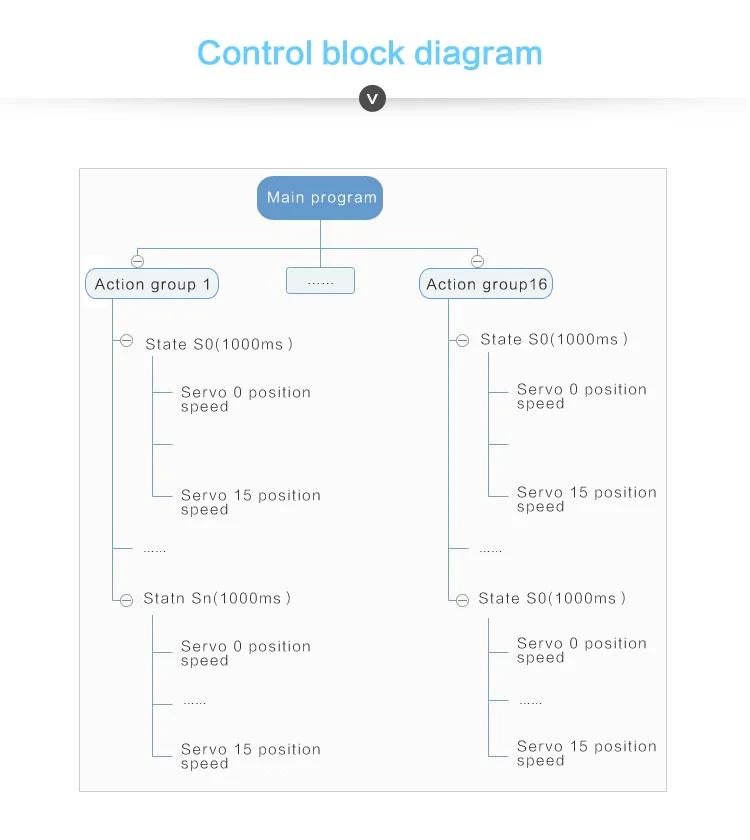

- Action group number: 16 groups
- Storage action number: 8192
- Multi slice cascading expansion: support
Package Included:
- 1 x Servo Controller Board
