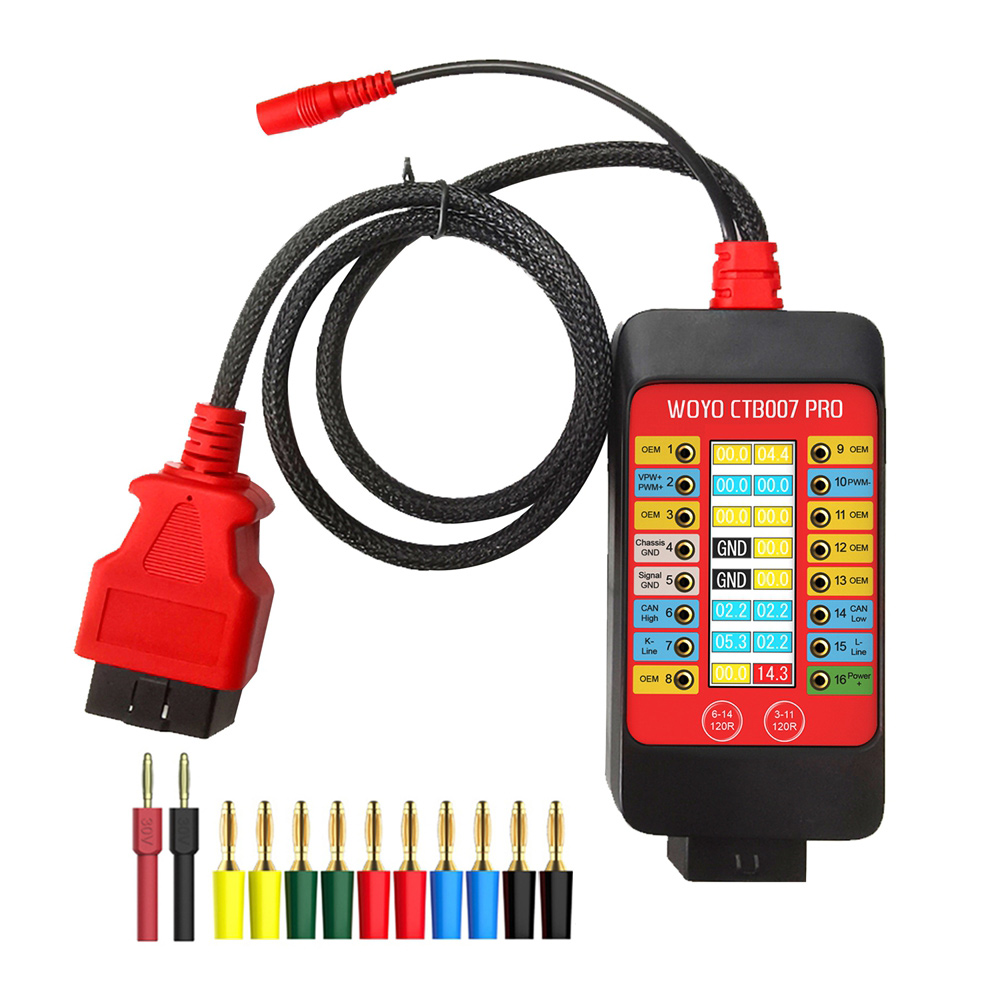

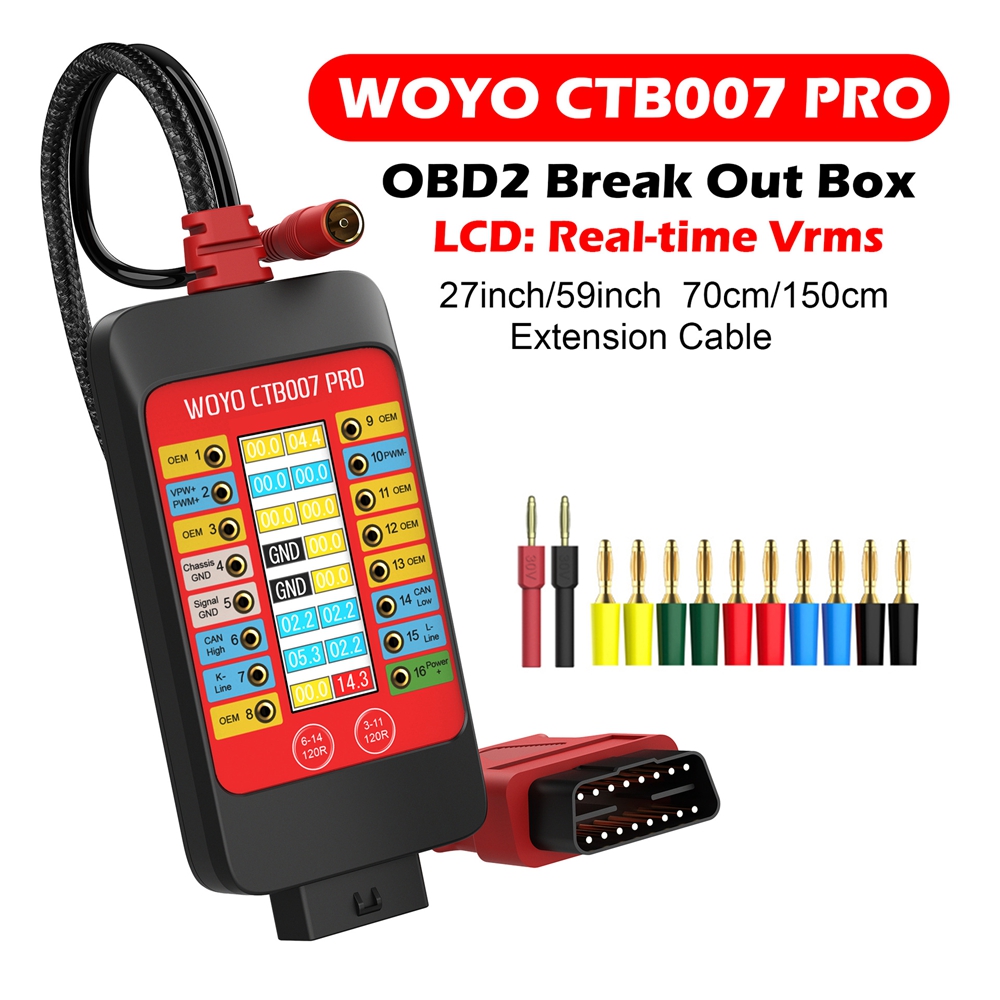

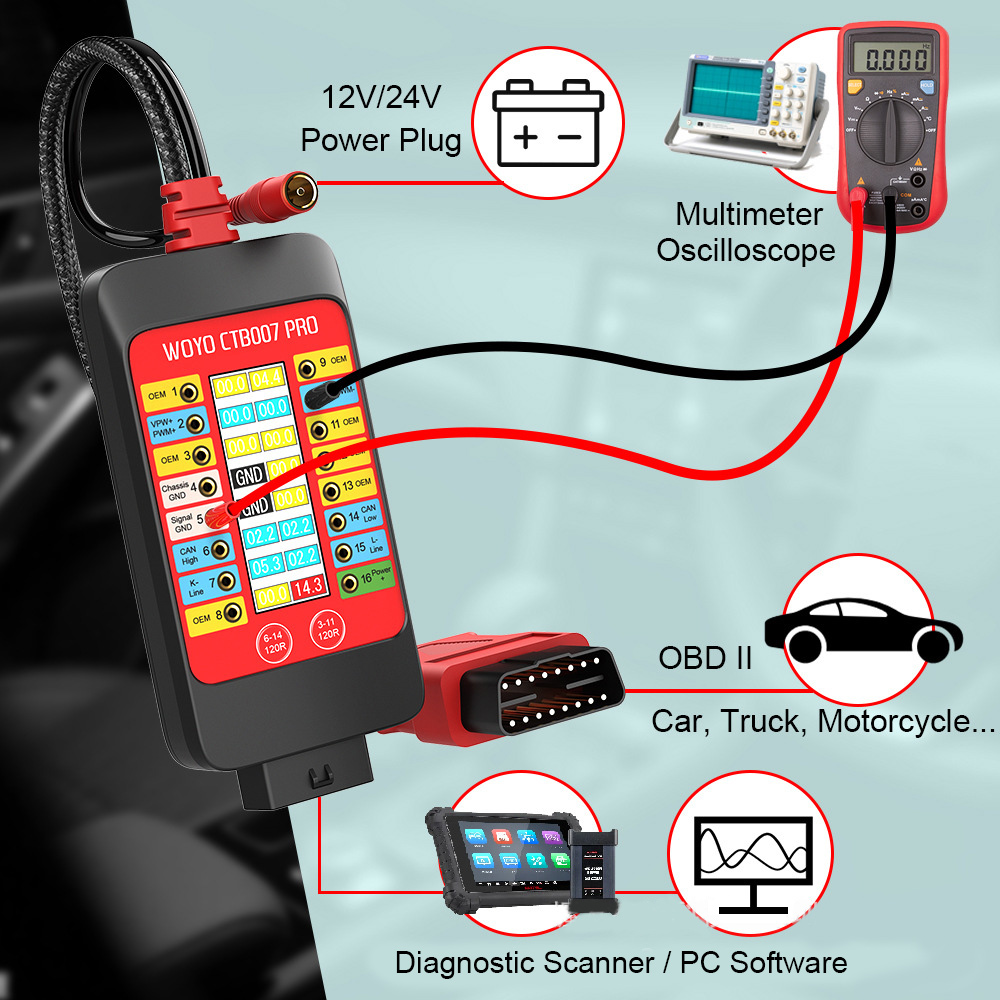

WOYO CTB007PRO OBD2 Universal Jumper Box Digital Display Break Out Box with 70cm Extension Cable
Description:

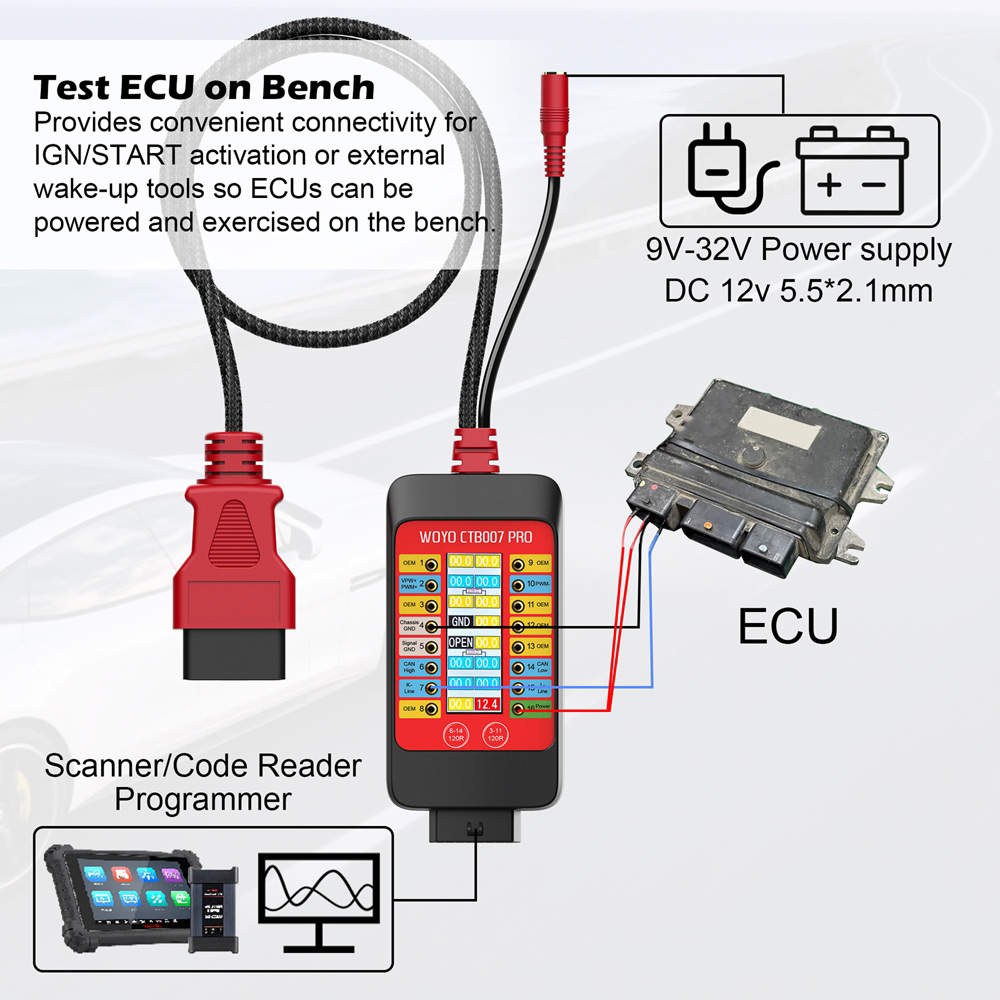

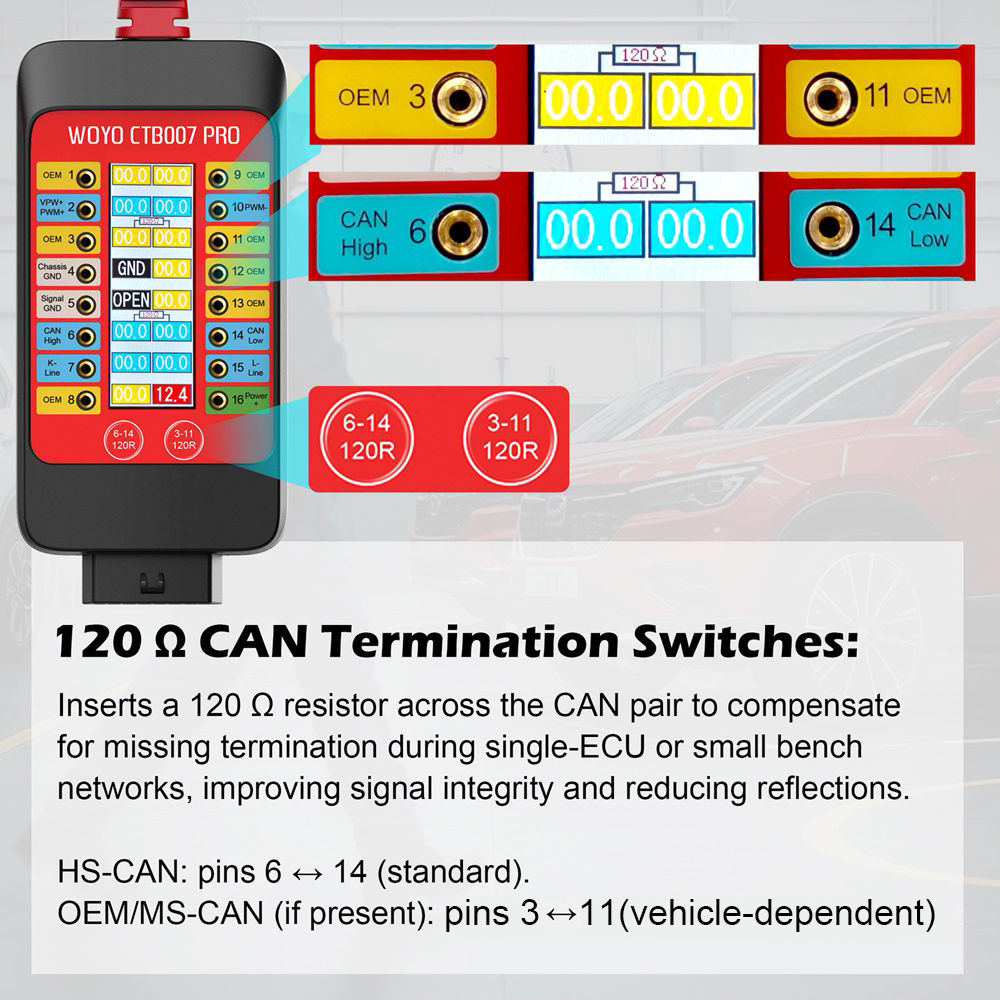

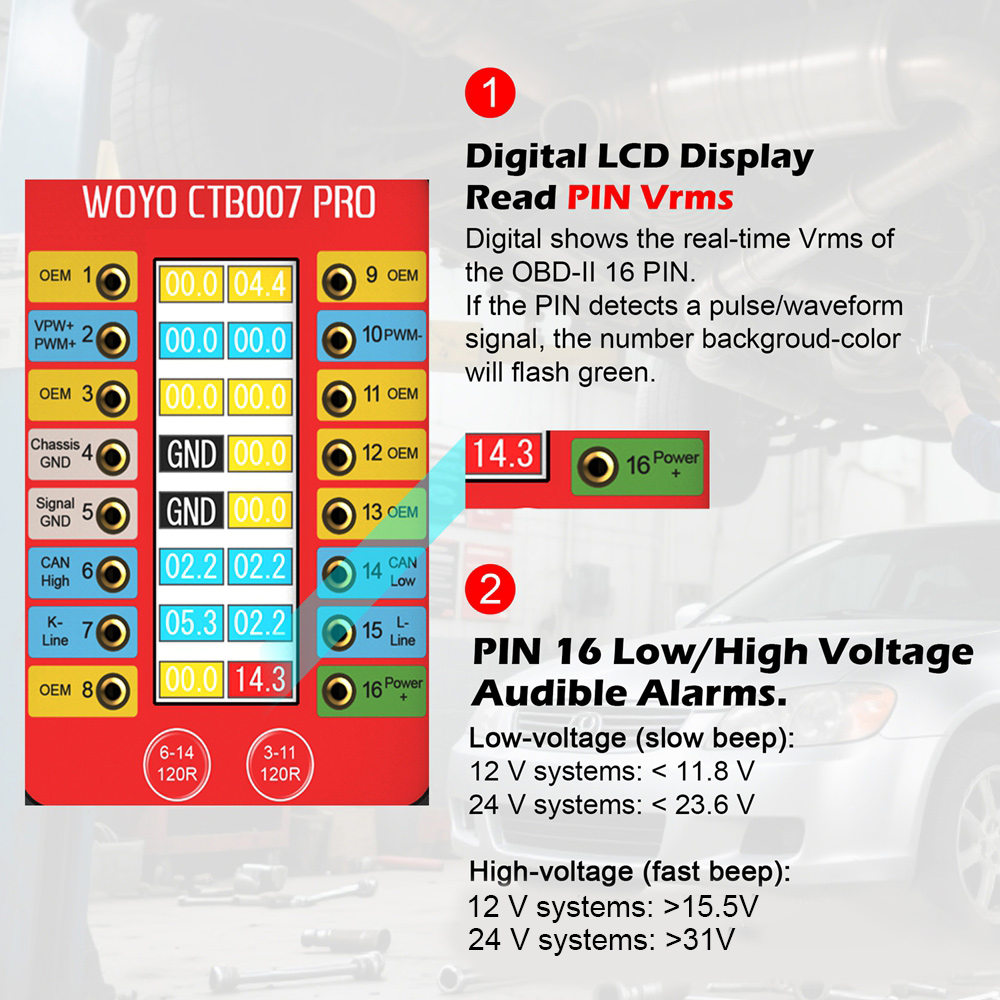

- A professional 12V/24V circuit-test and signal-access tool for diagnostics, development, and bench testing. It exposes every OBD-II pin, monitors live voltages (true RMS), provides optional CAN termination, and supports safe, fast hookup of other diagnostic/programming devices.

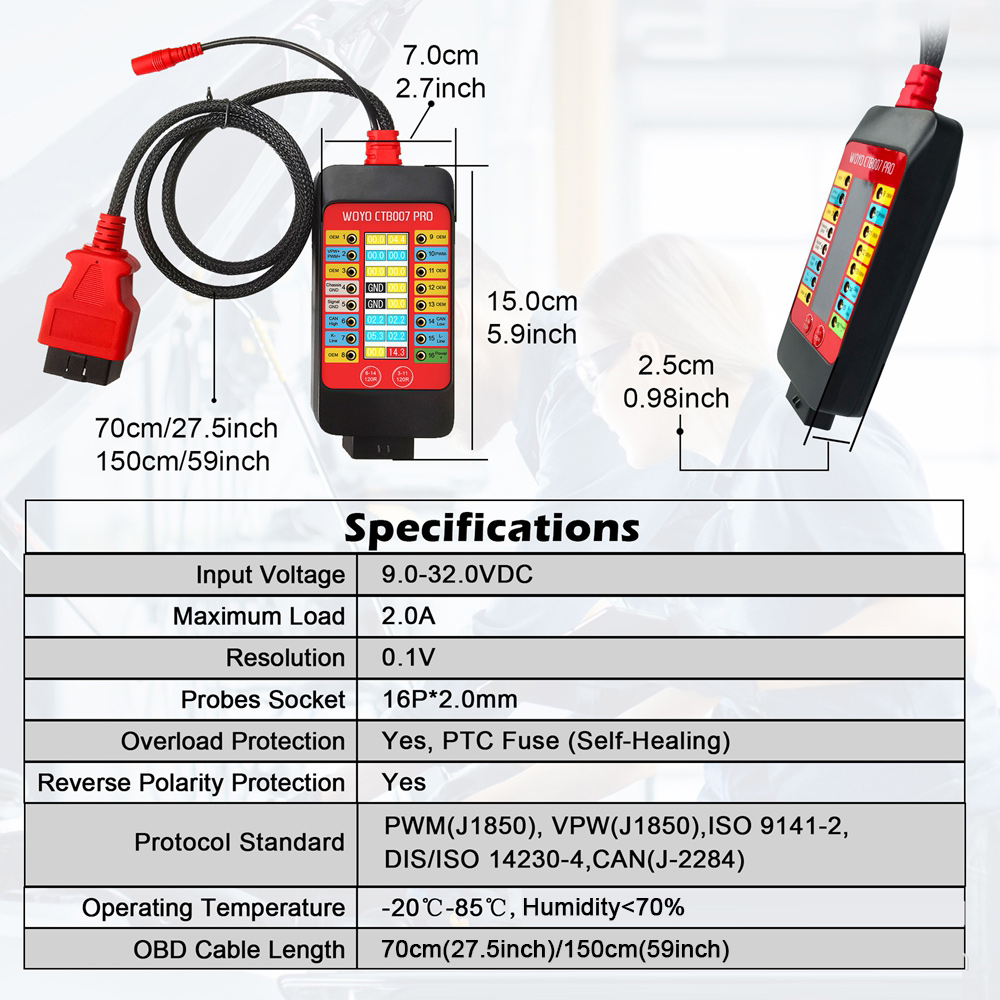

Specification:

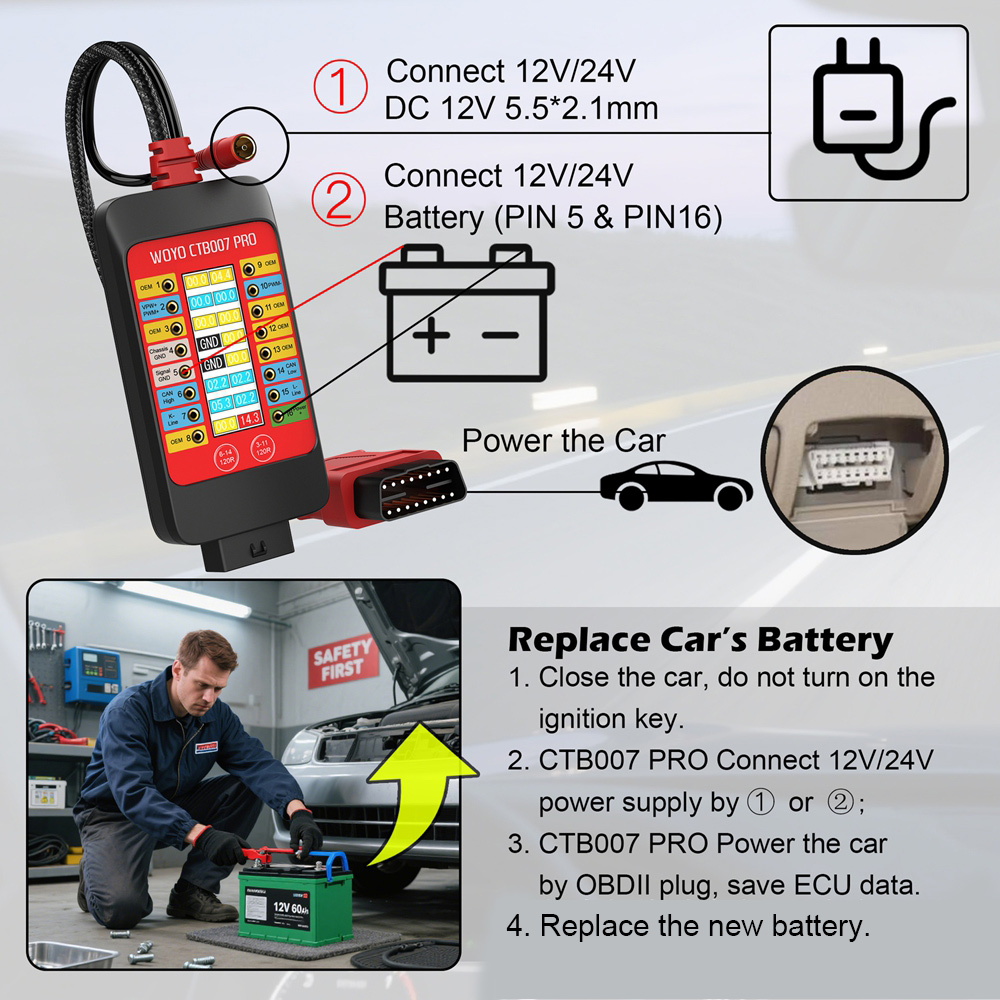

- Input voltage: 9 - 32V DC
- Maximum load: 2A
- Resolution: 0.1V
- Probe socket: 16P x 2.0mm
- Overload protection: yes, PTC fuse (self-healing)
- Reverse polarity protection: yes
- Protocol standard: PWM (J1850), VPW (J1850), ISO 9141-2, DIS/ISO 14230-4, CAN (J-2284)
- Operating temperature: -20℃ to 85℃, humidity < 70%

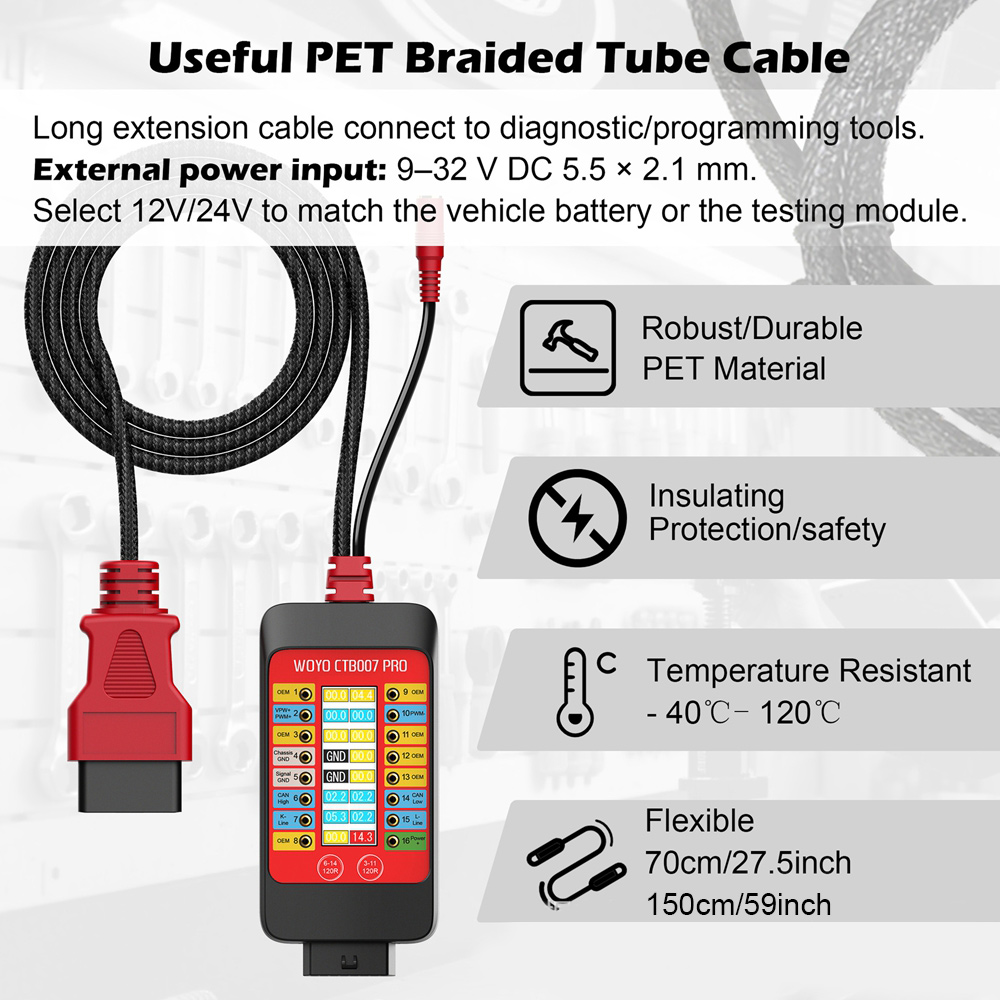

- OBD cable length: 70cm/27.5inch
Package Included:
- 1 x OBD Break Out Box
