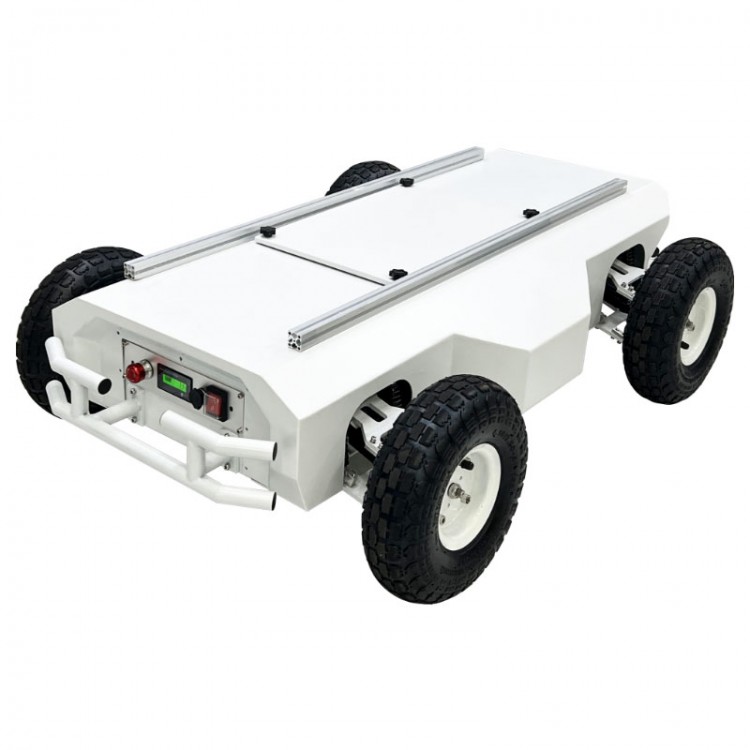

WR200X Linear Control Differential Steering Robotic Chassis 50KG Load Capacity for ROS Robot Opensource Development
Description:
- This product adopts a golden ratio body size, differential steering, and four-wheel independent suspension design, which is suitable for rapid expansion of secondary development and can provide intelligent robot applications to quickly build modular solutions.
Specification:

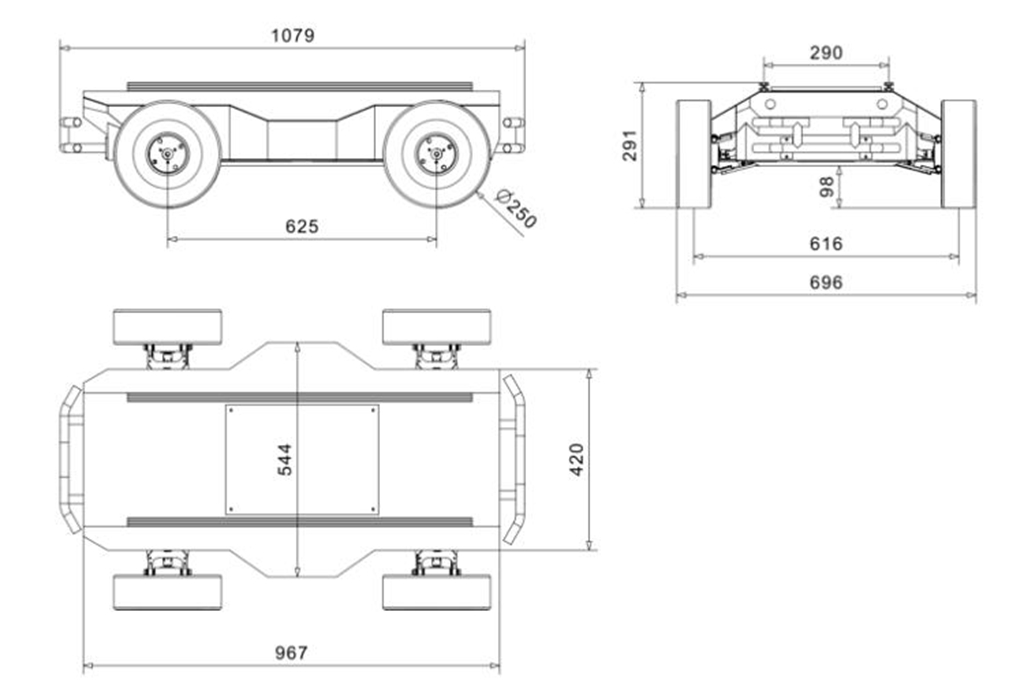

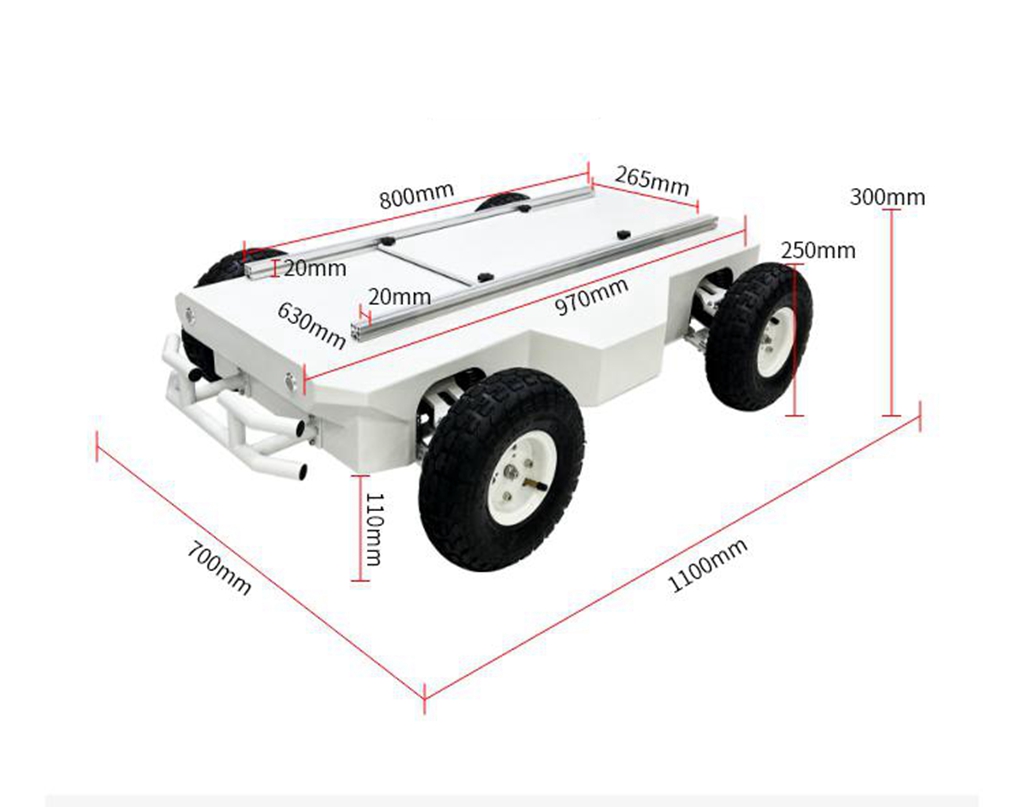

- Product size: 1100 x 700 x 300mm
- Net weight: about 49kg
- Operating speed: 0 - 1.2m/s
- Wheel diameter: 250mm
- Turning radius: 0m
- Rated load capacity: 50kg
- Shaft diameter: 625mm
- Track width: 616mm

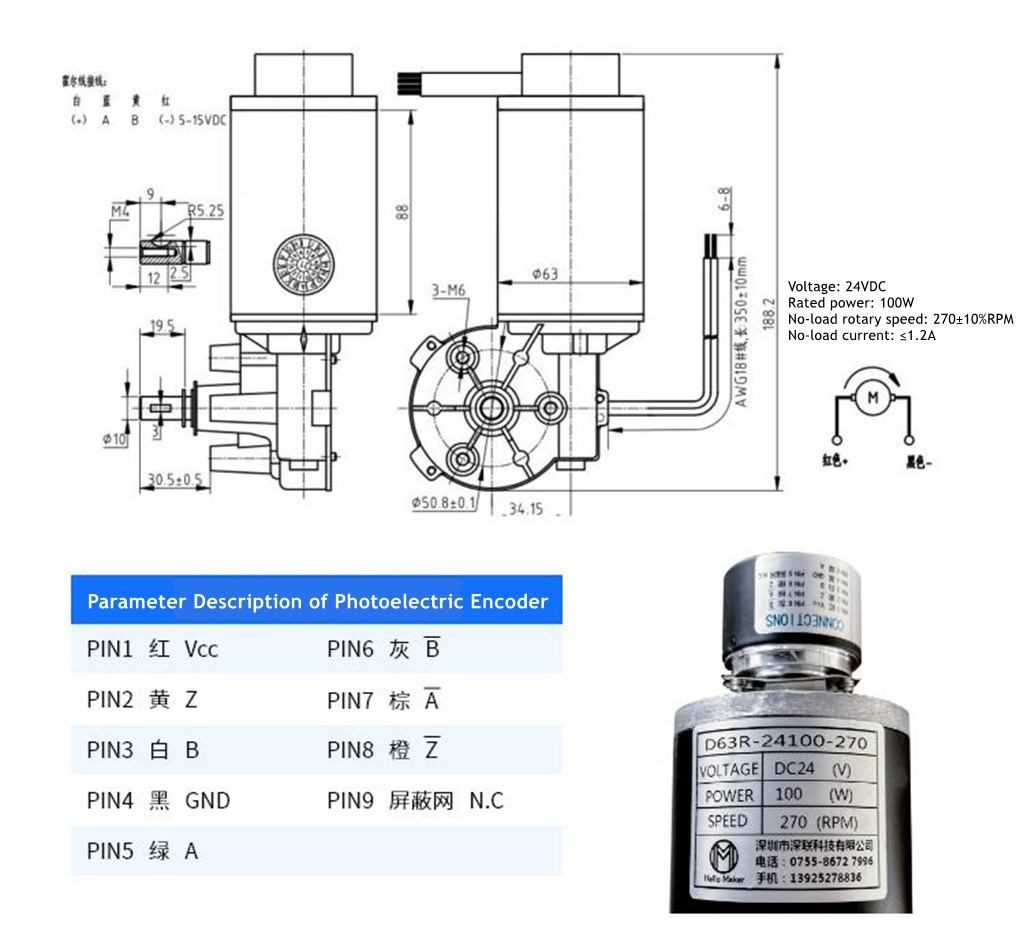

- Motor: 24V 100W DC brushed motor
- Encoder: 1000 incremental photoelectric encoder
- Battery: 24V 40AH lithium battery with over-charging and over-discharging protection (not included)
- Charger: independent 220V aviation charger
- Motion form: turn in place, four-wheel drive
- Shockproof suspension: four-wheel independent suspension
- Ground clearance: 115mm
- Vertical obstacle crossing height: ≤100mm
- Maximum climbing angle under full load: 30°
- Duration: 3 - 4 hours
- Control method: standard 2.4G model airplane remote control, with a control distance of about 100-200 meters. (open area)
Package Included:
- 1 x Chassis
- 4 x 24V 100W DC Brushed Motor
- 4 x 1000 Linear Incremental Photoelectric Encoder
Note:
- It is assembled and ready to use.
- The electronic control kit is not included.
- The battery is not included.
