WYDZ-Balun-100K-500MHz 1:1 Transmission Line Transformer RF Balun Transformer SMA Female Connectors

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.95
  • Price in reward points: 190 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.57 $18.19 $17.62 $16.87 Contact US
Quantity:
Buy it now Add cart

You might like

  • $0.00
  • $0.00
  • $0.00
WYDZ-Balun-10M-6GHz 1:1 Transmission Line Transformer Supports Clock Sine Wave and Square Wave

WYDZ-Balun-10M-6GHz 1:1 Transmission Line Transformer Supports Clock Sine Wave and Square Wave

$25.28

(0)
WYDZ-Balun-10M-8GHz 1:1 Transmission Line Transformer RF Balun Transformer w/ SMA Female Connectors

WYDZ-Balun-10M-8GHz 1:1 Transmission Line Transformer RF Balun Transformer w/ SMA Female Connectors

$22.17

(0)
WYDZ-Balun-4.5M-3GHz Transmission Line Transformer RF Balun Transformer for Sine Wave Square Wave

WYDZ-Balun-4.5M-3GHz Transmission Line Transformer RF Balun Transformer for Sine Wave Square Wave

$20.62

(0)
100K-50MHz RTL-SDR Supporting Long Antenna 9:1 Impedance Transformer Balun BNC

100K-50MHz RTL-SDR Supporting Long Antenna 9:1 Impedance Transformer Balun BNC

$11.21

(0)
MR300 Digital Shortwave HF Antenna Analyzer Meter Tester 1M to 60M for Ham Radio

MR300 Digital Shortwave HF Antenna Analyzer Meter Tester 1M to 60M for Ham Radio

$95.93

(0)
End Fed Antenna Field SDR HF Antenna 50W 1:64 Balun 6-Band 1.8-50Mhz 1.8Mhz 7Mhz 14Mhz 21Mhz 28Mhz

End Fed Antenna Field SDR HF Antenna 50W 1:64 Balun 6-Band 1.8-50Mhz 1.8Mhz 7Mhz 14Mhz 21Mhz 28Mhz

$35.30

(0)
GUSTARD U18 High-Performance USB Digital Interface USB Audio Interface XU216 AS338 DSD512 Silver

GUSTARD U18 High-Performance USB Digital Interface USB Audio Interface XU216 AS338 DSD512 Silver

$437.73

(0)
ES3070 10A 10uohm-50Kohm Portable Handheld Transformer DC Resistance Tester Fast Grounding Conductivity Tester

ES3070 10A 10uohm-50Kohm Portable Handheld Transformer DC Resistance Tester Fast Grounding Conductivity Tester

$415.38

(0)

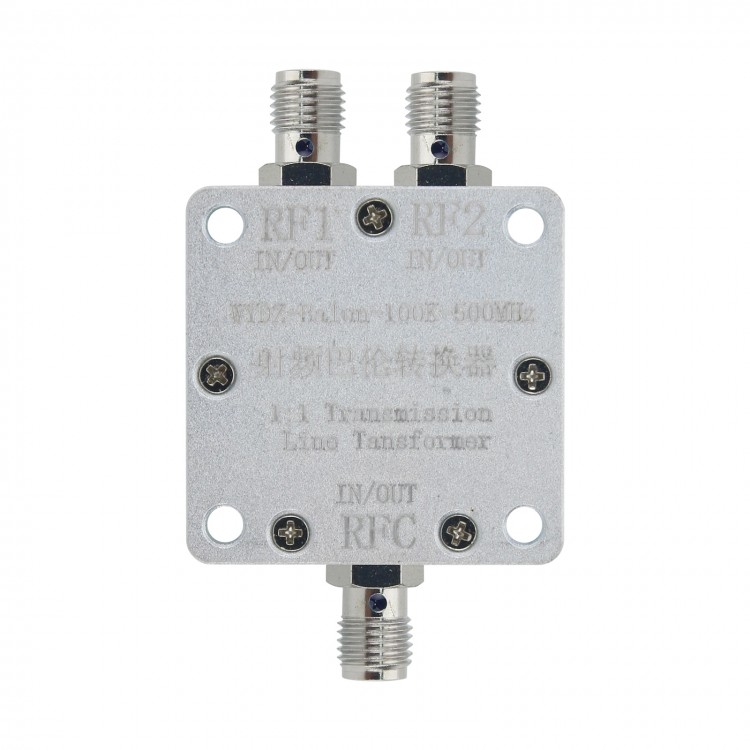

WYDZ-Balun-100K-500MHz 1:1 Transmission Line Transformer RF Balun Transformer SMA Female Connectors

Module Function:
- Single-ended signal to differential signal
- Differential signal to single-ended signal

Module Parameters:
- Maximum input power: 30dBm (1W)
- Input and output impedance: 50Ω
- Frequency range: 100KHz to 500MHz
- Input and output connectors: SMA female connectors
- Module size: 30 x 30 x 12mm/1.2 x 1.2 x 0.5" (without the sizes of connectors)
- Operating temperature: -25°C to +85°C
- Storage temperature: -55°C to +100°C

Package Included:
- 1 x Transmission Line Transformer

Packaging Details:
- G.W.: 0.15kg
