| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $28.77 | $28.19 | $27.30 | $26.13 | Contact US |
BPF-10.7M Bandpass Filter 10.7M+/-0.5M 50ohms High Quality RF Accessory with SMA Female Connector
$21.59
OC3-ADJ 75ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 75ohms 3.3Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75

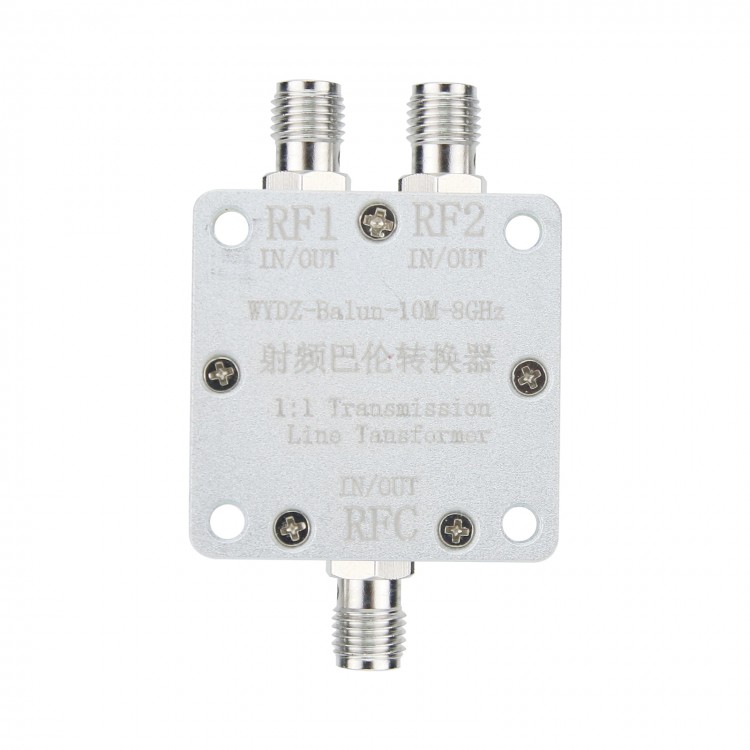

WYDZ-Balun-10M-8GHz 1:1 Transmission Line Transformer RF Balun Transformer w/ SMA Female Connectors
Module Function:
- Single-ended signal to differential signal
- Differential signal to single-ended signal
Module Parameters:
- Maximum input power: 30dBm (1W)
- Input and output impedance: 50Ω
- Frequency range: 10MHz to 8GHz
- Input and output connectors: SMA female connectors
- Module size: 30 x 30 x 12mm/1.2 x 1.2 x 0.5" (without the sizes of connectors)
- Operating temperature: -25°C to +85°C
- Storage temperature: -55°C to +100°C
Package Included:
- 1 x Transmission Line Transformer
Packaging Details:
- G.W.: 0.15kg
