X-100 TPA3116 Class D Power Amplifier 2.0 Digital HIFI Power Audio Amp Dual Channel 100W DC 12V-26V

Availability: In stock, usually dispatched in 1 business day

  • Price:$25.10
  • Price in reward points: 251 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $24.60 $24.10 $23.34 $22.34 Contact US
Quantity:

X-100 TPA3116 Class D Power Amplifier 2.0 Digital HIFI Power Audio Amp Dual Channel 100W DC 12V-26V

Description:

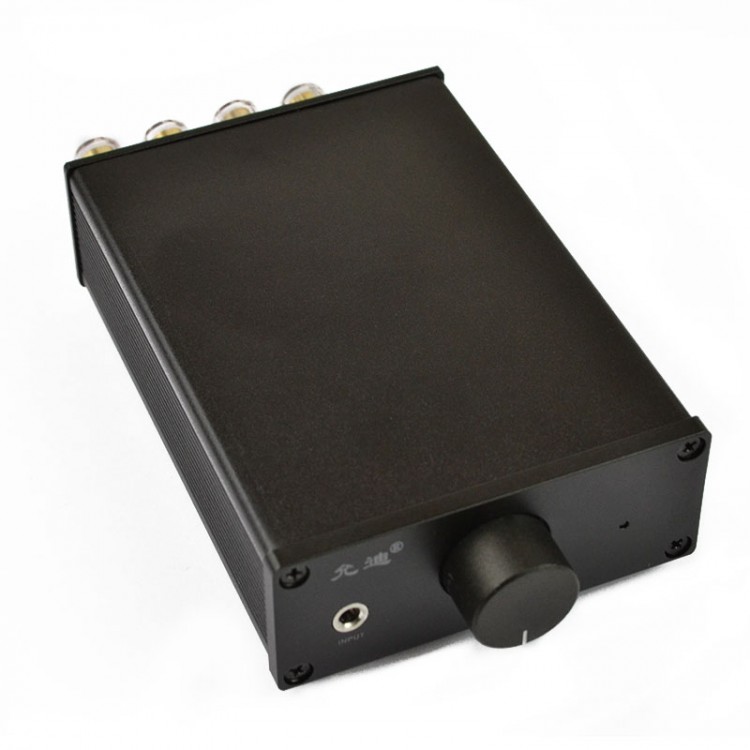

1. X-100 power amplifier is a class D power amplifier, with integrated all-aluminum chassis, compact and beautiful. The core of the power amplifier is composed of two TPA3116 chips, which can provide a high power output of 100WX2 (2Ω).
2. The X-100 power amplifier adopts an external single DC power supply, uses a high-quality potentiometer (with switch) made in Taiwan to control the volume (the potentiometer also acts as a power switch), and has exclusively developed an anti-impact flexible boot circuit control IC, which fundamentally solves the problem of impact sound when turning on and off.
3. The X-100 power amplifier sets two IC to work at different frequencies, so that the difference frequency is outside the audio frequency, and easily solves the noise floor of the power amplifier, so the signal-to-noise ratio of the power amplifier is very high.

Specification:

Output power: 100W/2Ω, 50W/4Ω, 25W/8Ω
Power supply voltage: DC 12V-26V
Harmonic distortion: <0.001% 10W/8Ω; <0.05% 10W/4Ω
Frequency response: 1Hz-50KHz
Damping coefficient: >100
Signal to noise ratio: >110dB
Input impedance: 10K
Gain: 32dB
Size: 75 x 32 x 132mm

Package List:
1 x Power Amplifier
