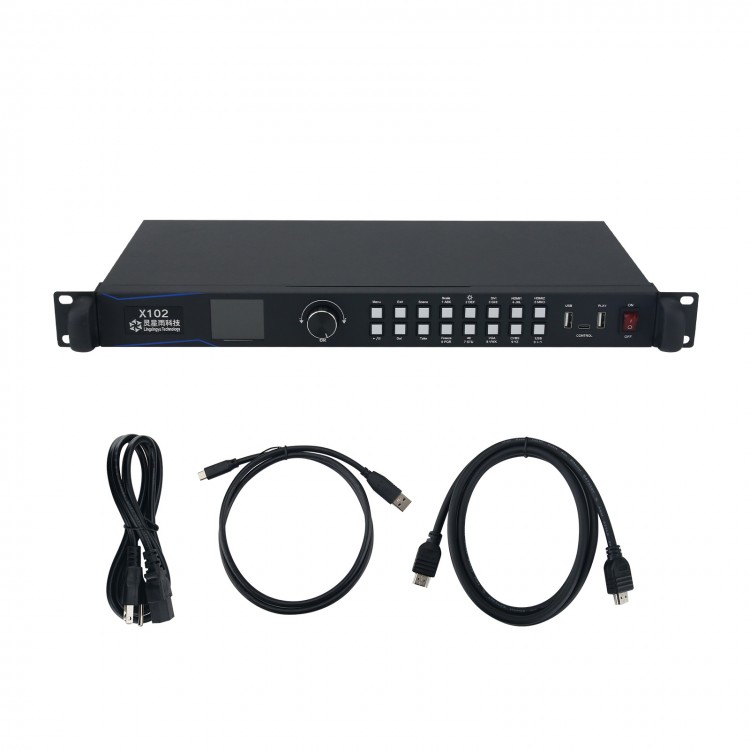

X102 LED Screen Video Processor LED Video Processor Supports 1.3MP for Indoor & Outdoor LED Screens

X102 LED Screen Video Processor LED Video Processor Supports 1.3MP for Indoor & Outdoor LED Screens

Description:
As a cost-effective video processor, X102 is developed for small screens used in the field of engineering.

The all-in-one video processor integrates USB flash player, sending card and video processor in one. A single device can carry up to 1.3 million pixels, a maximum bandwidth of 3840 pixels, and a maximum of 1920 pixels.

Features:
- X102 LED screen processor can be used to replace X100
- It is durable, made of quality materials
- Simple, convenient and fast to operate
- High quality, affordable price and energy saving
- Full-featured design with strong compatibility. It can be used in large and medium-sized cluster projects and complex network environments. It has a high refresh rate and a stable picture
- Application scenarios: suitable for indoor and outdoor LED displays of various models. It can also be used in LED display systems for subway stations, airports, hospitals, governments, community media, parking lots, etc.
- Two network port outputs, with a maximum load of 1.3 million pixels
- Maximum width of 3840 pixels, up to 1920 pixels
- 100 scenes can be saved, and the panel supports 10 scene shortcut call keys
- Supports programs in a USB flash to be played
- Supports hot backup for video source
- Supports signal switching, instant scene change, and audio and video synchronous switching
- Supports audio input/output
- Supports brightness adjustment
- Supports screen freezing
- Supports online upgrade and U disk upgrade
- Rich signal input interfaces, including 2 HDMI-compatible1.3, 1 DVI, 1 VGA and 1 CVBS interfaces
- Supports network cable and type-c interface debugging
- Supports schedule setting
- Supports USB flash and cloud backup data
- Supports USB flash and cloud data recovery
- Supports licensing function
- Output network port connection detection display

Specifications:
Power Supply:
- Input: AC100-240V, 50/60Hz
- Maximum power: 15W

Working Environment:
- Temperature: -20°C to 70°C
- Humidity: 0%RH~95%RH

Physical Parameters:
- Device weight: 2kg/4.4lb
- Dimensions: 482.6mm x 225.3mm x 44.5mm/19" x 8.9" x 1.8"

Package Included:
- 1 x LED Screen Video Processor

Packaging Details:
- Packaging size: 505mm x 135mm x 360mm
- Volume weight: 6kg
