D435 2MP Original 3D Depth Camera ROS Stereo Camera for Intel RealSense Tracking Facial Recognition

D435 2MP Original 3D Depth Camera ROS Stereo Camera for Intel RealSense Tracking Facial Recognition

Description:
The D435 has the largest field of view of any camera for RealSense. It features a global shutter on its depth sensor, which is ideal for fast-moving applications.

Equipped with a global image shutter and wide field of view, the D435 can efficiently get and stream depth data from moving objects, providing highly accurate depth perception for mobile prototypes. The D435 has a wide viewing angle and can take pictures of the surrounding environment at one time through the global shutter, avoiding blind spots to a large extent. So, it is suitable for recording depth-of-field information of large-scale moving objects.

Features:
- ROS depth camera for RealSense
- Can be used for robotics, 3D scanning and printing, skeleton and character tracking, drones, face authentication, object measurement, somatosensory games, etc.
- Strong compatibility: for Windows, Linux, Mac OS and Android platforms; support for Raspberry Pi, NVIDIA Jetson series motherboards, PC computers and industrial computers; support for ROS, Raspberry Pi, Jetson and other conventional robots
- Compatible with multiple language platforms: SDK 2.0 for RealSense provides various wrappers to support popular programming languages and platforms
- Just plug and play. The camera can be easily fixed on the top of your screen and can collect effective picture within 10m/32.8ft. It can output the depth picture of 1280x720 resolution, and the ordinary video transmission can reach 90fps
- D4: A vision processor that handles complex depth algorithms. Stereo image sensor collects images and calculate differences between images; IR signal transmitter illuminates objects and collects depth data; RGB sensor collects color data

Performance Parameters:
- Model: D435
- Use environment: indoor and outdoor
- Depth Technology: Active IR Stereo (Global Shutter)
- Depth Field of View (H x V): 87° x 58°
- Main components: D430 + RGB module for RealSense; processor D4 for RealSense
- Depth Field: 91.2 x 65.5 x 100.6
- Depth stream output resolution: 1280x720 max
- Depth stream output frame rate: up to 90fps
- RGB sensor resolution: 2MP
- Minimum depth distance: 0.3m/11.8inch
- Sensor Shutter Type: Global Shutter
- Maximum Range: Approx. 10m/32.8ft; varies based on calibration, scene and lighting conditions
- RGB sensor resolution and frame rate: 1920x1080 at 30fps
- RGB sensor FOV (HxV): 69° x 42°
- IMU: without
- Ideal range: 0.3-3m/11.8inch-9.8ft
- Camera Dimensions: 90 x 25 x 25mm/3.5 x 1 x 1"
- Connector: USB 3.0 Type-C
- Mounting Mechanism: One 1/4-20 UNC threaded mounting point; two M3 threaded mounting points

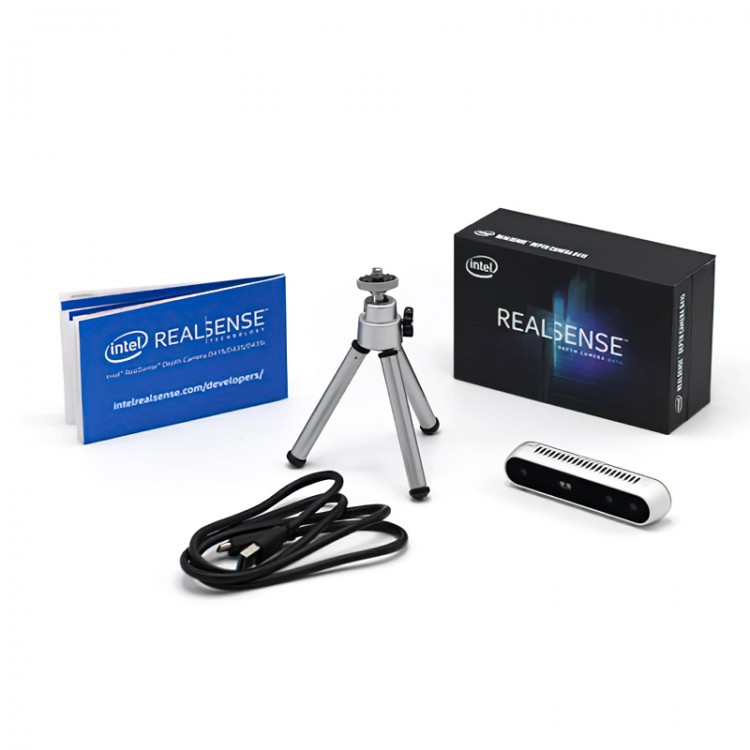

Package Included:
- 1 x Tripod Stand
- 1 x Depth Camera
- 1 x USB Cable
