X650 KVM-over-IP Remote Management PCI Express Card Support POE Splitter Power Supply for Raspberry Pi CM4

X650 KVM-over-IP Remote Management PCI Express Card Support POE Splitter Power Supply for Raspberry Pi CM4

Description:
- X650 is a KVM-over-IP remote management PCI express card designed for Raspberry Pi CM4 that can be accessed from any web browser, providing secure, stable, and fast access to KVM anytime, anywhere.
- It can remotely connect through Raspberry Pi, turn on/off or restart the computer, configure UEFI/BIOS, and even reinstall the operating system using a virtual CD-ROM or flash drive.
- You can use a remote keyboard and mouse to simulate the keyboard, mouse, and display them in a web browser, just like working directly on a remote system. This is true hardware level access and does not rely on any remote ports, protocols, or services!
- The X650 can be controlled by KVM starting from bios. Restart, monitor the entire startup process, and easily interact with the system you are connected to, while the integrated remote ATX power control allows you to turn on/off the machine, reset it, and remotely monitor power and storage.

User Manual:
- wiki.geekworm.com/X650

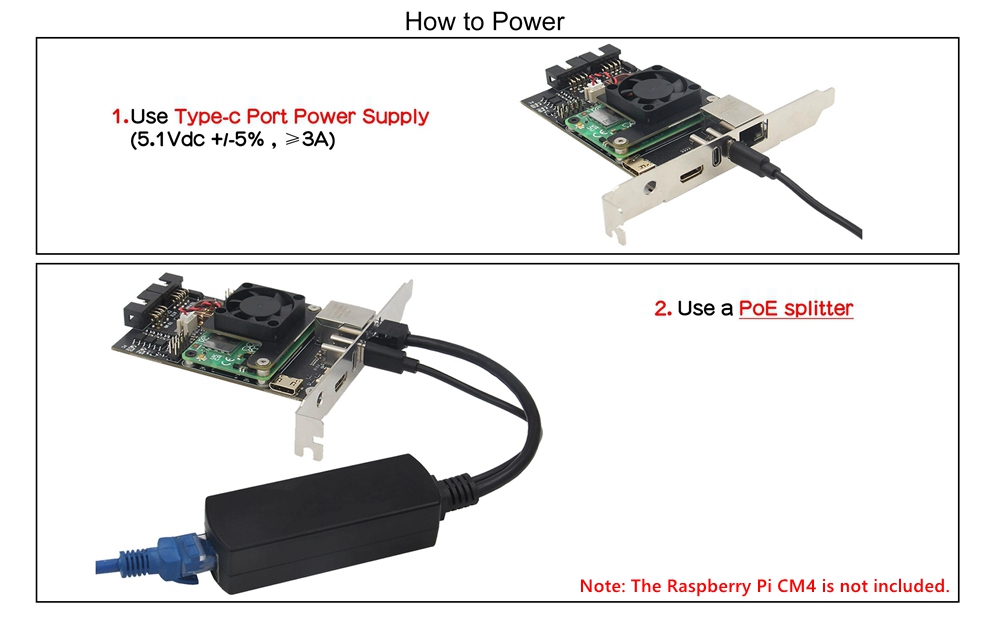

Power Supply:
Power method:
- POE splitter
- Type-C power supply (5.1VDC +/-5%, >=3A)

Precaution:
- Do not power through the Type - C port of Raspberry Pi, as it is occupied by OTG.
- The power adapter is very important. The vast majority of problems are caused by the power supply. It is recommended to use a DC 5V 4A 20W high-quality power supply.

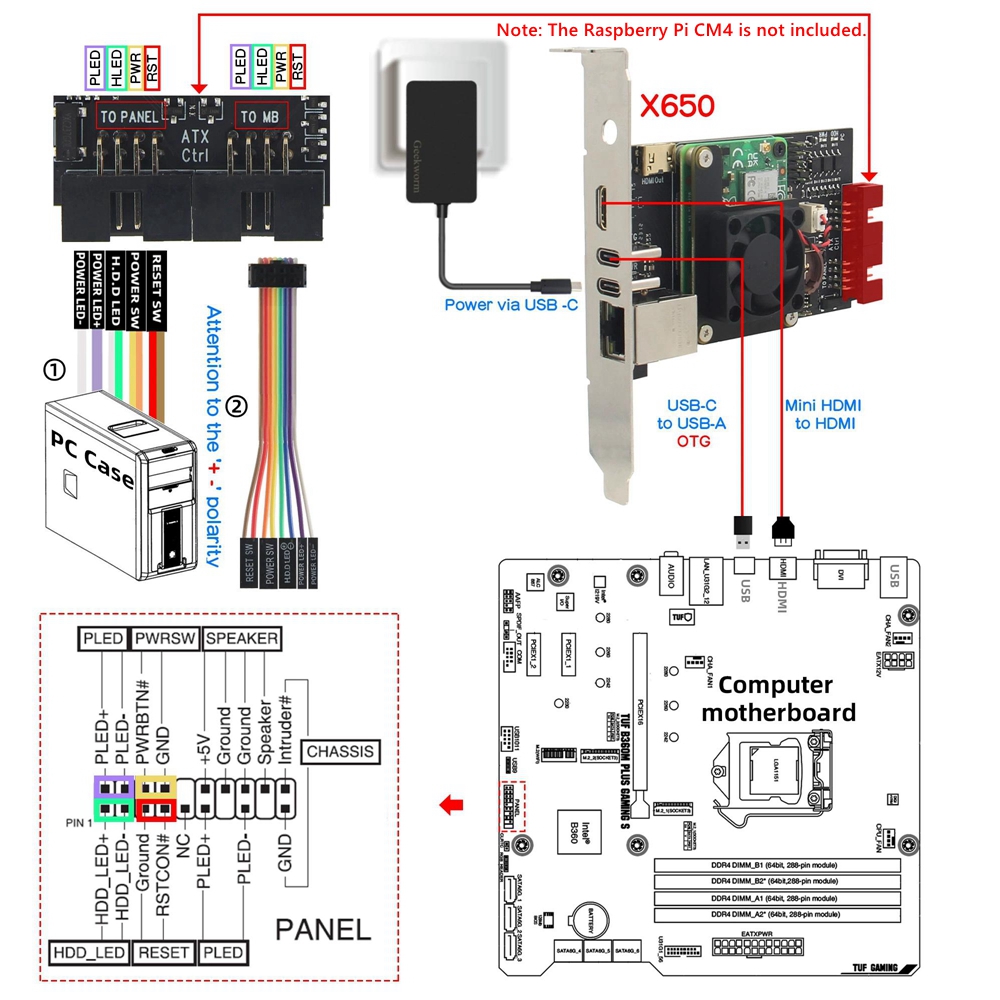

Wiring:
- The takeover of the keyboard and mouse is achieved through USB; But the HDD light, power switch, power indicator light, RESET, etc. of the target computer are achieved by controlling the ATX signal of the motherboard.

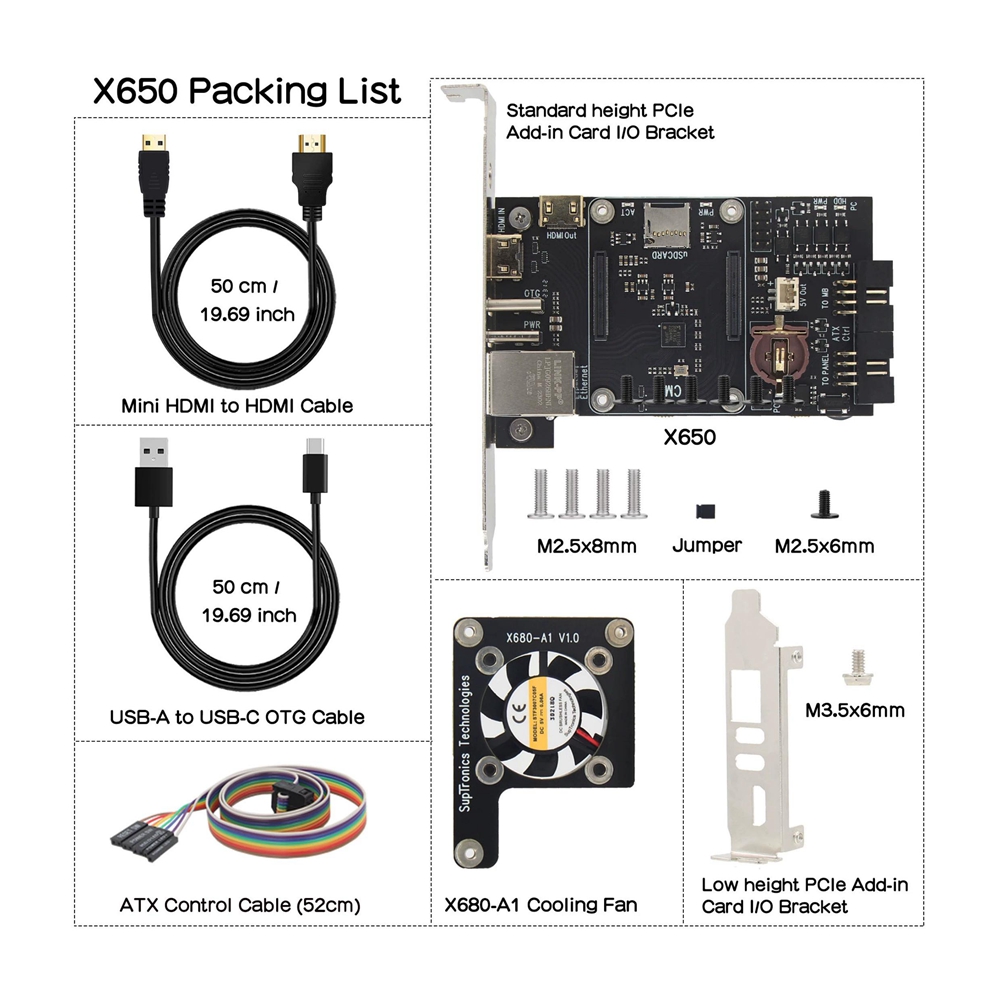

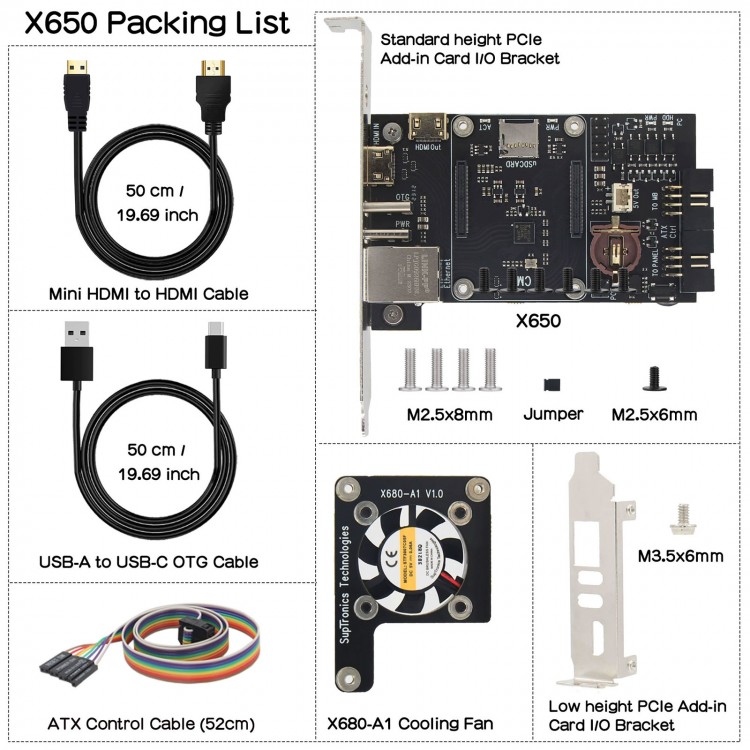

Package Included:
- 1 x X650 Module
- 1 x Mini HDMI to HDMI Cable
- 1 x USB-A to USB-C OTG Cable
- 1 x ATX Control Cable
- 1 x X680-A1 Cooling Fan
- 1 x Low Height PCIe Add-in Card I/O Bracket
- 1 x Screw Pack

Note:
- The Raspberry Pi CM4 is not included.
