X735 V2.5 Board X857-C3 Metal Enclosure+ X862 V2.0 M.2 NGFF SATA SSD Storage Expansion Board + Adapter for Raspberry Pi 4

Availability: In stock, usually dispatched in 1 business day

  • Price:$79.00
  • Price in reward points: 790 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $77.42 $75.84 $73.47 $70.31 Contact US
Quantity:

X735 V2.5 Board X857-C3 Metal Enclosure+ X862 V2.0 M.2 NGFF SATA SSD Storage Expansion Board USB 3.1 Connector + Adapter for Raspberry Pi 4


Description:
- This is new updated X862 V2.0 version from X862 V1.0. We solve the EMC interference issue between Raspberry Pi 4 and USB3.0 device.
The X862 V2.0 M.2 NGFF SATA SSD Shield is designed for Raspberry Pi 4 model B, it provides a complete storage solution for Raspberry Pi 4. New X862 V2.0 ONLY support M.2 NGFF SSD Key-B 2280 length. The X862 V2.0 support UASP.
[WiKi for Reference]
- raspberrypiwiki.com/X862 V2.0

[FOR USE WITH]
    Raspberry Pi 4 Model B
[Operating System]
    All Raspberry Pi operating systems

Features:
- Ideal storage solution for Raspberry Pi 4 - M.2 NGFF SATA SSD Shield
- Supports up to 2TB M.2 NGFF SSD solid-state drive
- Only supports M.2 NGFF SSD 2280 length
- UASP supported for Raspberry Pi 4
- Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller
- Integrated high efficiency step-Down Converter, 3.3V max 4A to power the SSD
- USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4
- Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see note 2)
- LED blue indicator indicates drive status
- Specially-made USB3.1 jumper to connect with Raspberry Pi - no cabling required!
- Fully compatible withX735for intelligent power management and cooling your Raspberry Pi
- Fully compatible withX710for wide input voltage (6~36V) and intelligent power management
- Fully compatible withX765for powering over Ethernet (POE, 5V 5A)
- Fully compatible withX728for uninterruptible power supply (18650 UPS, 5.1V 8A, smart power mgmt)

Specification:
- Power supply:
- 5Vdc +/-5% , Powered via USB port by Raspberry Pi
- Ports & Connectors:
- USB socket - USB 3.0 type A x1
- 67Pin M.2 connector P=0.5mm, H3.2mm, Key B x1

PCB Size:

- 87mm x 56mm

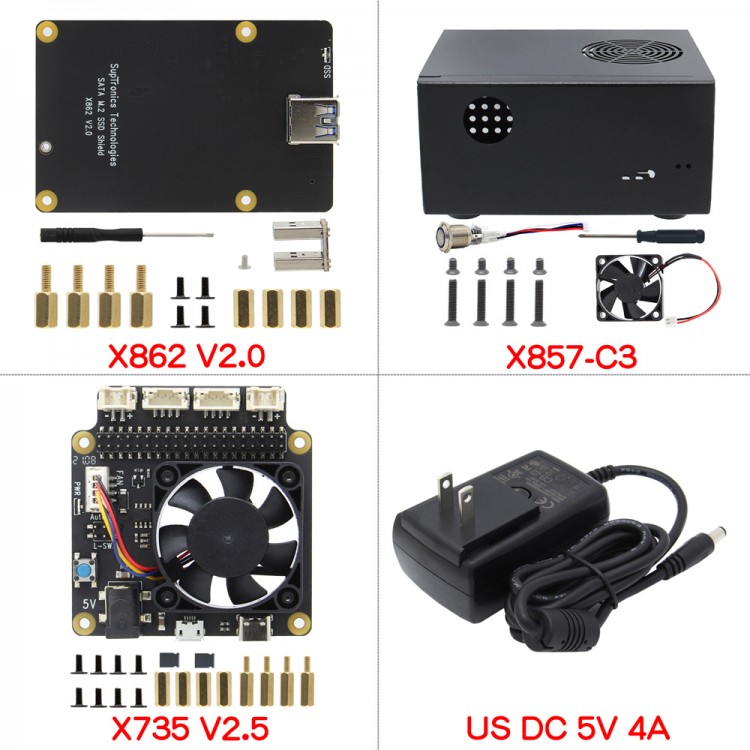

Package list:
- 1 x X735 V2.5 Board
- 1 x
X857-C3 Metal Enclosure
- 1 x X862 V2.0 M.2 NGFF SATA SSD Shield
-1 x USB3.1 jumper
- 4 x Screw M2.5 *6mm
- 4 x Spacer M/F M2.5 *7+6mm
- 4 x Spacer F/F M2.5 *9.5mm
- 1 x Screw driver
-  1 x Adater
