Description:

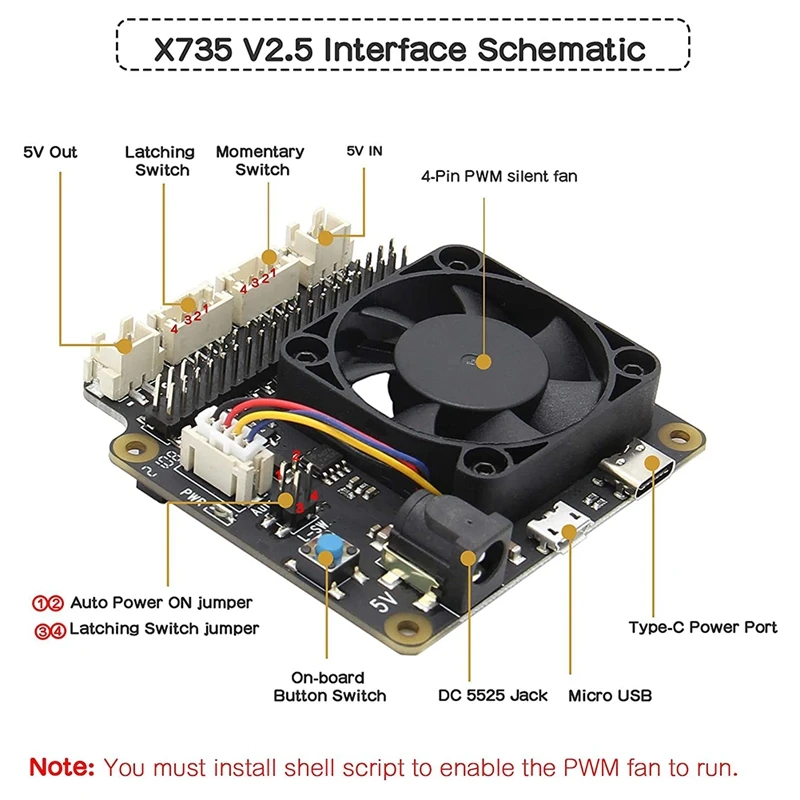

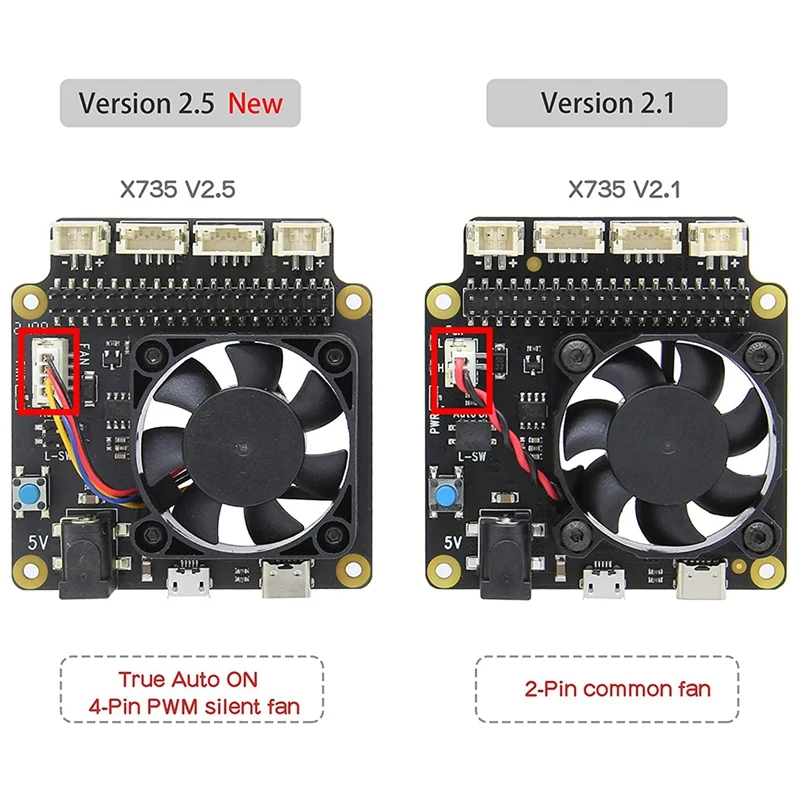

- Update notification: X735 V2.1 has been update to X735 V2.5 version with PMW fan and remove 2pin power cable. You must install shell script to enable the PWM fan to work since it need PWM signal to run, refer to X735 V2.5 Software.
- Power supply: 5.1Vdc +/-5%,2.5~4A; X735 support three kind off power supply: DC5525 port: Can provide up to 4A power supply capability; Type-C power port ; Mini USB: Compatible with your mirco-usb power adapter;
- Fully compatible with for Raspberry Pi X825 V2.0, X825 V1.5, X829, X828, X857, X862, X872 / X873, X835, X832, X820, X850, X860, X870, X822, X852 to provide intelligent and safe power management;Reserved 40pin stackable header for add on boards
- Note: Full poweroff through software is not supported when using latching power switch;Do not apply power to your for Raspbeery Pi via the Pi's Micro-USB/Type-C socket.
Colour:black
Material:Plastic + Metal
Package Contents:

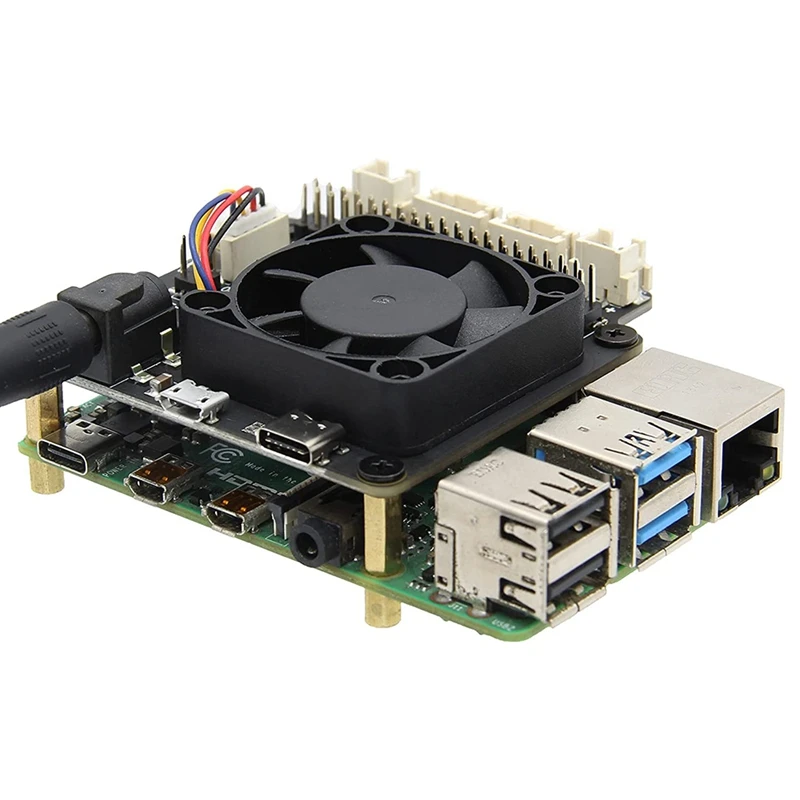

- 1 * X735 V2.5 Power Management Board
- 4 * Spacer F/F M2.5 *12mm
- 4 * Spacer M/F M2.5 *12+6mm
- 8 * Screw M2.5 *6mm
- 2 * Jumper link Pitch 2.54mm
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
