XC7A200T Artix-7 A7 Development Board 50MHz FPGA Core Board Onboard MT25QL128A SPI Flash 16MB for Xilinx

Availability: In stock, usually dispatched in 1 business day

  • Price:$164.10
  • Price in reward points: 1641 Reward Points: 16
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $160.82 $157.54 $152.61 $146.05 Contact US
Quantity:

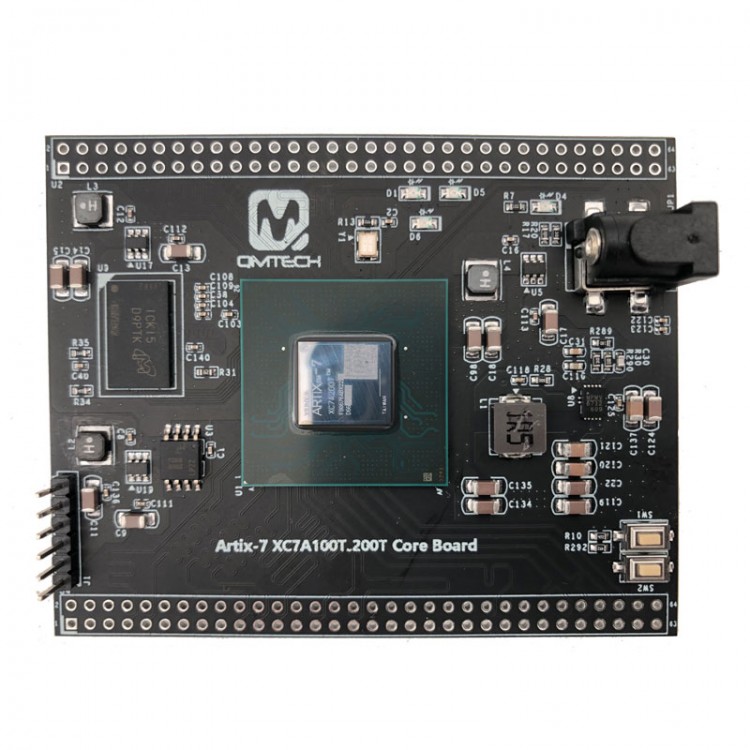

XC7A200T Artix-7 A7 Development Board 50MHz FPGA Core Board Onboard MT25QL128A SPI Flash 16MB for Xilinx

Features:

- Master control for Xilinx FPGA: XC7A200T-1FBG676C
- Main control FPGA external clock source frequency: 50MHz
- QMTECHXC7A200T core board onboard MT25QL128A SPI Flash chip, with a storage capacity of 16MB bytes.
- The QMTECHXC7A200T core board is equipped with 256MB magnesium based DDR3 memory, model of MT41K128M16JT-125:K
- The QMTECHXC7A200T core board provides 1.0V core voltage for FPGA operation, using for MPS MP8712 wide range, high current DC/DC.
- The QMTECHXC7A200T core board has two rows of 64p, 2.54mm spacing sockets, which can be used for external 24bit TFT LCD screens, CYUSB3014 USB3.0 modules, high-speed ADC acquisition modules, or CMOS camera modules.
- The QMTECHXC7A200T core board has two buttons of the chip for testing.
- The QMTECHXC7A200T core board has led out four LED lights from the chip for testing purposes.
- The QMTECHXC7A200T core board has a JTAG port for the chip, using a single row of 6p, 2.54mm pitch pins.
- The actual size of the QMTECHXC7A200T core board is 6.7cmx8.4cm, and the recommended default input power for the board is 2A at 5V DC.
- The QMTECHXC7A200T core board provides 108 IOs, all of which have undergone equal length processing. The IO voltage of BANK34 and BANK35 can be adjusted through a 0ohm resistor to adapt to external IO levels, such as 1.8V LVDS high-speed ADC signals, 2.5V Gigabit Ethernet PHY, etc.

Package Included:
- 1 x Core Board
