XC7A200T Artix-7 DDR3 Core Board A7 FPGA Development Board for Electronic Engineers Hardware DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$146.41
  • Price in reward points: 1464 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $143.48 $140.55 $136.16 $130.30 Contact US
Quantity:
Buy it now Add cart

You might like

QMTECH Artix-7 DDR3 XC7A35T Core Board A7 FPGA Development Board for Users to Finish DIY Projects

QMTECH Artix-7 DDR3 XC7A35T Core Board A7 FPGA Development Board for Users to Finish DIY Projects

$88.11

(0)
MicroPhase A7-Lite-200T FPGA Development Board Core Board Onboard USB-JTAG for Xilinx Artix 7

MicroPhase A7-Lite-200T FPGA Development Board Core Board Onboard USB-JTAG for Xilinx Artix 7

$299.43

(0)
E-ELEMENTS FPGA Development Board PYNQ Z2 for ZYNQ 7020 Artificial Intelligence Python

E-ELEMENTS FPGA Development Board PYNQ Z2 for ZYNQ 7020 Artificial Intelligence Python

$398.38

(0)
QMTECH Zynq7000 XC7Z020 Core Board Development Board Starter Kit for Makers Electronic Engineers

QMTECH Zynq7000 XC7Z020 Core Board Development Board Starter Kit for Makers Electronic Engineers

$107.55

(0)
B210 Mini AD9361 Software Defined Radio Development Motherboard SDR Replacement for HackRF PlutoSDR

B210 Mini AD9361 Software Defined Radio Development Motherboard SDR Replacement for HackRF PlutoSDR

$322.43

(0)
B210 Mini AD9361 Software Defined Radio Development Kit Motherboard+Accessories SDR Replacement for HackRF PlutoSDR

B210 Mini AD9361 Software Defined Radio Development Kit Motherboard+Accessories SDR Replacement for HackRF PlutoSDR

$349.80

(0)
Ackerman/Differential ROS Car Robot Car Assembled w/ Depth Camera Voice Module N10 Lidar LubanCat 1S

Ackerman/Differential ROS Car Robot Car Assembled w/ Depth Camera Voice Module N10 Lidar LubanCat 1S

$740.05

(0)
MicroPhase A7-Lite-35T FPGA Development Board Core Board Onboard USB-JTAG for Xilinx Artix 7

MicroPhase A7-Lite-35T FPGA Development Board Core Board Onboard USB-JTAG for Xilinx Artix 7

$124.34

(0)

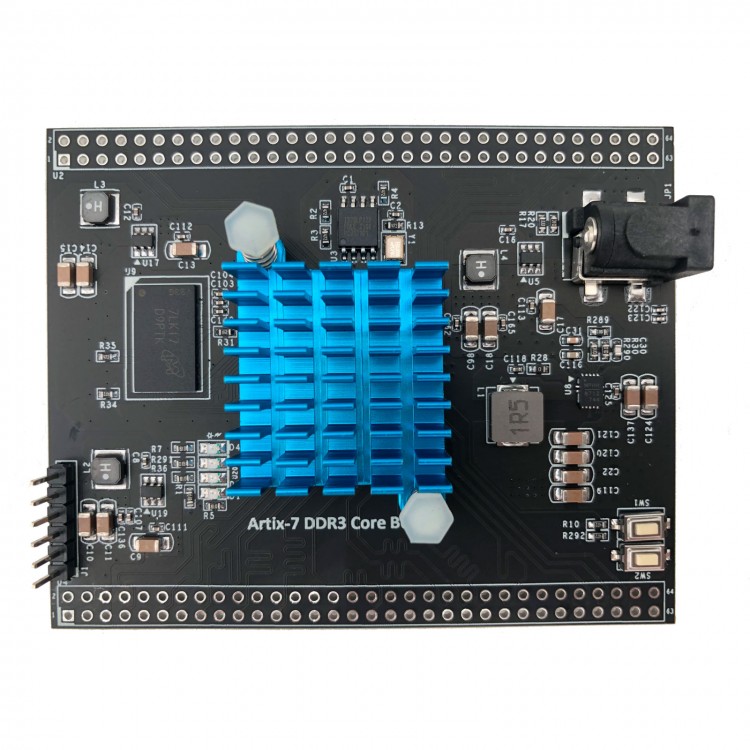

XC7A200T Artix-7 DDR3 Core Board A7 FPGA Development Board for Electronic Engineers Hardware DIY

Specifications:
- FPGA: XC7A200T-1FBG484C;
- Frequency of FPGA external clock source: 50MHz;
- On-board IS25LP128 SPI Flash chip, 16MB storage capacity;
- Onboard 256MB DDR3 memory for Micron and its model number is MT41K128M16JT-125:K
- XC7A200T core board provides 3.3V power supply for FPGA operation, using TPS 563201 wide-range input DC/DC for TI;
- There are two rows of 64p 2.54mm pins, which can be used to connect 24-bit TFT LCD screens, CYUSB3014 USB3.0 modules, high-speed ADC acquisition modules and CMOS camera modules;
- 2 buttons of the chip for testing;
- 4 LED lights for testing;
- It has JTAG port and adopts a single-row 6p, 2.54mm pin header;
- The size of the core board is 6.7 x 8.4cm/2.6 x 3.3", and the default input power of the board is recommended to be DC 2A 5V.
- The core board provides 108 IOs. These IOs are processed at equal length. The IO voltage of BANK34 and BANK35 can be adjusted by 0 ohm resistor to adapt to external IO levels, such as 1.8V LVDS high-speed ADC signal, 2.5V Gigabit Ethernet PHY, etc.

For Users:
- Electronic engineers
- Hardware DIY enthusiasts
- All kinds of audiophiles, such as music, digital audio and MIDI
- Teachers and students from colleges and universities

Package Included:
- 1 x Core Board
- 1 x 2A 5V DC Power Supply
