XD05 Plus High Performance DAC & Headphone Amp Portable DAC Headphone Amplifier 1000mW Output Silver

XD05 Plus High Performance DAC & Headphone Amp Portable DAC Headphone Amplifier 1000mW Output Silver

Advantages:
- A portable desktop amplifier
- 1000mW output power at 32Ω
- 13H endurance time
- For XMOS XU208
- AK4493EQ
- Dual interchangeable op amps
- Optimized circuit
- Support 05BL PRO Bluetooth module (not included)
- Multiple input ways

Features:
- Multi-scenario use: No matter where you are, you can enjoy the high quality music
- 1000mW output power: 1000mW output power(32ohms load), comparable to desktop headphone amplifier, easy to drive high impedance headphones
- Powerful battery: Built-in 3.8V/5000mAh rechargeable li-polymer battery, long playback time. ≥13H (USB IN), ≥21H (COAXIAL/OPTICAL), ≥40H(AUX IN)
- Professional high performance chips: For XMOS XU208 and AK4493EQ chips, work in asynchronous transfer mode, support up to 32Bit/384KHz and DSD256 signal, present more musical details
- Multiple audio input ports: Support USB/COAXIAL/OPTICAL/AUX IN, can be connected various multimedia devices, all digital ports support DSD
- Dual Crystal Oscillators: Adopts two active Low Phase Noise Crystal Oscillators, work with CPLD, reducing Jitter to undetectable level
- Professional HIFI power supply system: Built-in filter circuit and high-efficiency power conversion circuit, optimize LDO circuit through power supply design, and supply power to decoder chip, LPF, amp, for XMOS, digital receiver chip independently
- Dual interchangeable op amp: Its op amps can be replaced by yourself, no soldering needed. Different chips bring different sound quality to meet different personal preferences (Please purchase two op amps in the same model or one dual op amp to replace them by yourselves)
- Connected to 05BL PRO Bluetooth module, become to a Bluetooth DAC amplifier: Connected to 05BL PRO, let your XD05 Plus become a Bluetooth DAC amplifier. Your wired amplifier system is now fully capable of playing wireless Bluetooth music

Specifications:

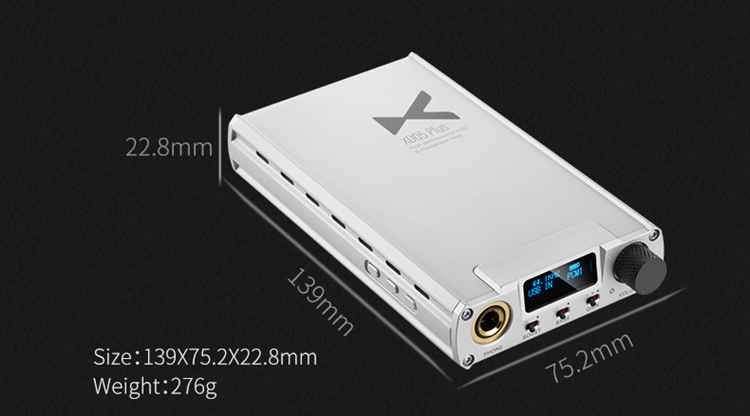

- Size: 139 x 75.2 x 22.8mm
- Net weight: 0.29kg
- Applicable OS: for Win XP, Vista, Win 7/8/10, Mac OS X, IOS, and Android system
- Output power: 1000mW (32Ω load)
- Frequency response: USB/coaxial/optical fiber: 20Hz~20kHz(±0.5dB); AMP: 10Hz~100kHz(±0.5dB)
- Sampling rate support:
* USB: PCM: 16-32bit/44.1-384kHz; DSD: DOP/NATIVE mode, DSD64-256; DXD: 24-32bit/352.8-384kHz
* Fiber/Coaxial: PCM: 16-24bit/44.1-192kHz; DSD: DSD64 (DOP)
- Harmonic distortion: USB/coaxial/optical/: 0.0016% at 1kHz; AUXIN: 0.0009% at 1kHz
- Signal to noise ratio: 117dB Separation: ≥75dB
- Battery capacity: 5000mAh
- Life time: USB IN≥13H; AUX IN≥40H; coaxial/optical fiber≥21H

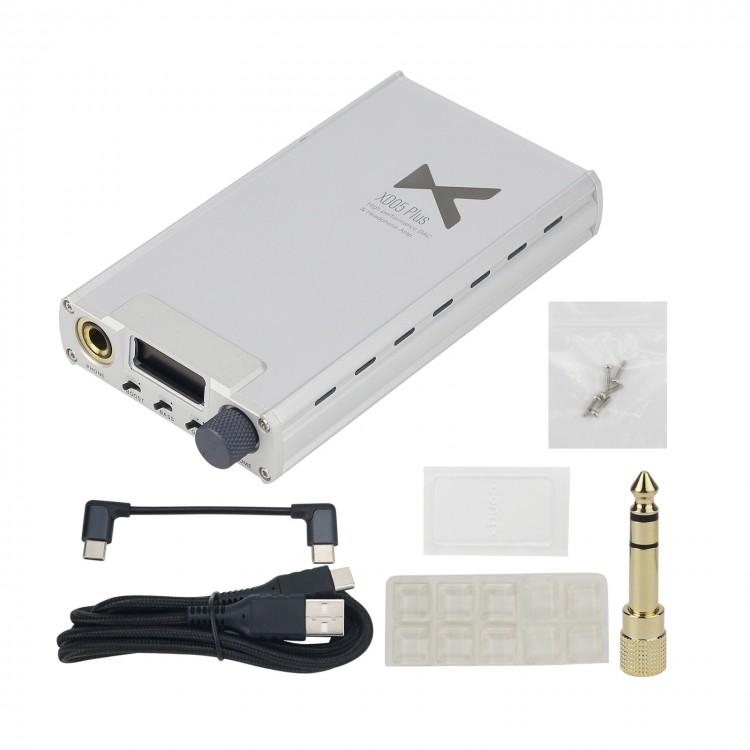

Package Included:
- 1 x Set of DAC Headphone Amp

Note:
- CHARGE type-c port is for charging only, not for USB digital input.
- 05BL PRO Bluetooth module is not included. Please purchase separately.
