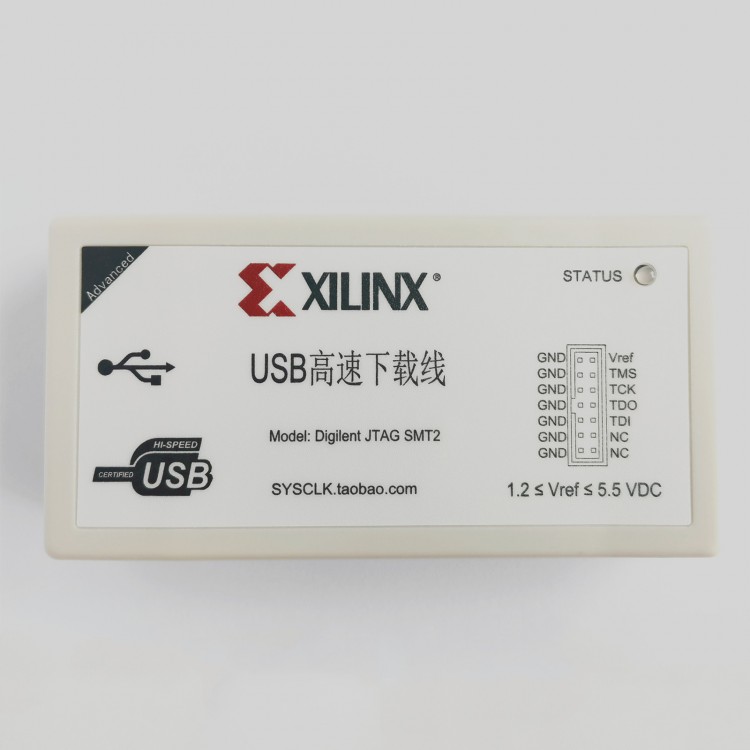

XILINX Download Cable USB High-speed Download Cable JTAG SMT2 Downloader FPGA/CPLD Simulator

Availability: In stock, usually dispatched in 1 business day

  • Price:$32.79
  • Price in reward points: 328 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $32.13 $31.48 $30.49 $29.18 Contact US
Quantity:

XILINX Download Cable USB High-speed Download Cable JTAG SMT2 Downloader FPGA/CPLD Simulator

Features:

1. The download speed is fast, and the TCK clock supports up to 30M. The current speed is higher than Platform Cable USB I and II which with clocks up to 12M.
2. If you use the ISE environment, it is recommended to use the version 13.2 or higher with its own driver. You can contact customer service to obtain the download link of version 14.7 and LICENSE. Support impact, Chipscope, EDK, etc.
3. It supports all versions of VIVADO, and it comes with a driver when installing VIVADO. You can contact customer service to obtain the latest version of Vivado and a 20-year license. Support SDK and Xilinx Hardware Manager under Vivado.
4. Support XILINX full series of FPGA/CPLDF/SOC/MPSOC. Such as the common ones:
-Xilinx CoolRunner, CoolRunner-II CPLD;
-Xilinx XC95xx, and -L version series general CPLD series;
-XCF0x series PROMS and SPI FLASH configuration chip;
-Virtex 4,5,6, and Spartan 3,6,7;
-The latest Artix7, Kintex7, Zynq7, and its latest UltraScale version of FPGA/SOC/MPSOC.
5. As Xilinx official future main push downloader, it supports other subsequent FPGA/CPLD/MPSOC.
6. Support online debugging of XILINX embedded processors, such as soft-core MICROBLAZE, hard-core ZYNQ, etc.
7. Self-applicable target board JTAG interface voltage, support 1.2V, 1.5V, 1.8V, 2.5V, 3.3V and 5V interface level. The actual test works well within the level range of 1.2V to 5.5V.
8. Both JTAG and USB ports have interface protection circuits, which can effectively protect your target board and downloader.
9. JTAG download clock supports self-adaptation of XILINX software, or it can be manually selected.
10. Support all operating systems that the software runs, such as XP, WIN7, WIN8, WIN10, and LINUX systems.
11. The downloader has a complete over-current protection, which can effectively protect the board and the USB port in extreme cases.
12. Two-color LED indicates the working status of the board and the power connection of the target board.
13. The interface adapter board adopts anti-reverse insertion design. If it is inserted reversely, there is no way to insert it. Avoid the trouble of not working properly because of reverse plugging.
14. A variety of interface data cables, covering various interface requirements.

Note:
The download speed of download line download module of all HSx series and SMTx series from DIGILENT is the same. Some are recognized as one USB SERIAL CONVERT and some are recognized as two, and the speed and performance are the same. This device will be recognized as a USB SERIAL CONVERT device


Package List:
-1 x JTAG SMT2 Host
-1 x USB 2.0 Cable
-1 x Adapter Board
-1 x 14-pin 2.0mm Flat Cable
-1 x 14-pin 2.54mm Flat Cable
-1 x 10-pin 2.0mm Flat Cable
-1 x 6-pin 2.54mm Flat Cable
-1 x 7-pin Dupont Cable
