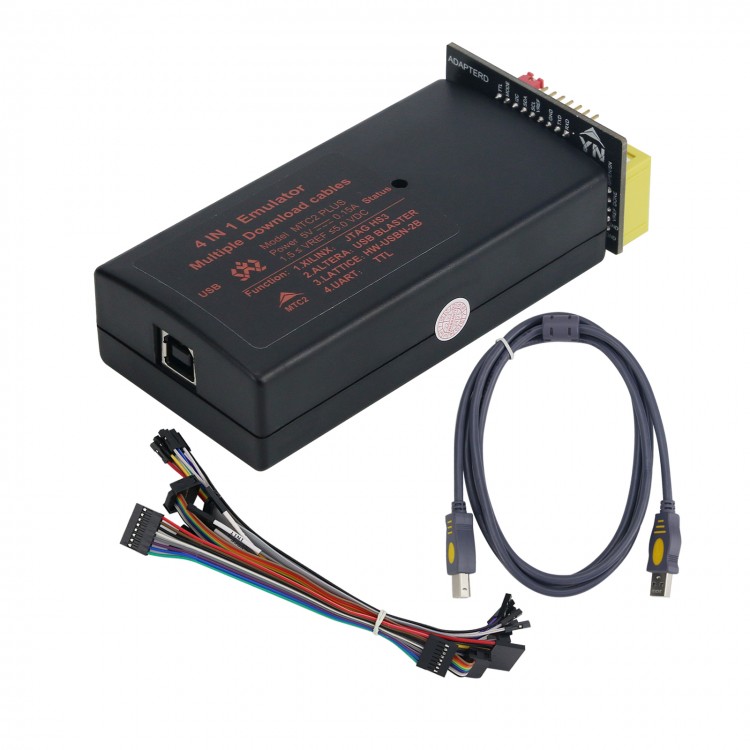

MTC2 PLUS 4 In 1 Emulator Multiple Download Cables Kit Debugger I2C Programmer High-Speed Downloader

MTC2 PLUS 4 In 1 Emulator Multiple Download Cables Kit Debugger I2C Programmer High-Speed Downloader

Features:
- MTC2 PLUS 4-in-1 Emulator
- Cross-platform multifunctional emulator/downloader
- Standard full-signal interface for each downloader type
- Adapter board and cables of the product: all signal standard interfaces lead out for easy applications
- Ideal choice for professionals
- Standard full signal interface: for XILINX, ALTERA, LATTICE and UART
- Including multiple cables to fit a various interfaces
- Large-capacity FPGA high-speed downloader
- High-speed integrated debugger

Functions:
1. Downloader for XILINX: JTAG HS3
♦ With the function of the official new high-speed JTAG-HS3; the JTAG download rate is up to 30M
♦Support for Vivado, ISE, SDK, IMPACT, Chipscope, EDK, etc. (As for ISE12.1+ and Vivado12.1+,  cable plug-in support is needed)
♦ It is recommended to use ISE version 14.1 and above (with its own driver)
♦ VREF must be connected to the reference voltage of the target board
♦ Support for all XILINX FPGA chips, including
    > for Zynq-7000 Series
    > for Kintex UltraScale+
    > for Virtex UltraScale+
    > for Artix-7
    > for Kintex-7
    > for Virtex-7
    > for Virtex-6
   > for Spartan-6
♦ For CoolRunner/CoolRunner-II CPLD series
♦ For Xilinx Platform Flash ISP configuration PROM series
♦ Third-party SPI PROMs
♦ Third-party SPI BPI PROMs
♦ 9500/9500XL CPLD and 1700 and 18V00 ISP PROM devices are not supported

2. Downloader for ALTERA (for Intel): USB BLASTER
♦ Support for Quartus II5.0 and later platforms
♦ Need to install related plug-in support
♦ Support for Altera MAX II, MAX V, MAX10, Cyclone IV, Cyclone V, Stratix IV, Stratix V devices, etc. From early CPLD to the latest FPGA series for Stratix 10
♦ Support JTAG, AS and PS download mode
♦ Support for SignalTap II Logic Analyzer
♦ VREF must be connected to the reference voltage of the target board

3. Downloader for LATTICE: HW-USBN-2B
♦ Compatible with HW-USBN-2B (FTDI) downloader (full signal) for LATTICE
♦ Support JTAG /SPI/ and support I2C download
♦ Support for Lattice development software such as Diamond and LSC ISPVM
♦ VREF must be connected to the reference voltage of the target board

4. UART-USB to TTL (Multiple Reference Levels can be Selected)
♦ TTL supports three-wire mode (TX, RX, and GND)
♦ When using TTL, VREF must be connected to the level, which can be achieved by connecting VREF to the required voltage, such as 1.8V, 3.3V and 5V, etc.

Package Included:
1. MTC2 PLUS downloader x 1
2. High quality USB cable x 1
3. Multi-interface adapter board x 1
4. 2.0 spacing 14P FFC cable x 1
5. 2.54 spacing 10P FFC cable x 1
6. Color jump wire x 1
7. 10P DuPont Line x 1
