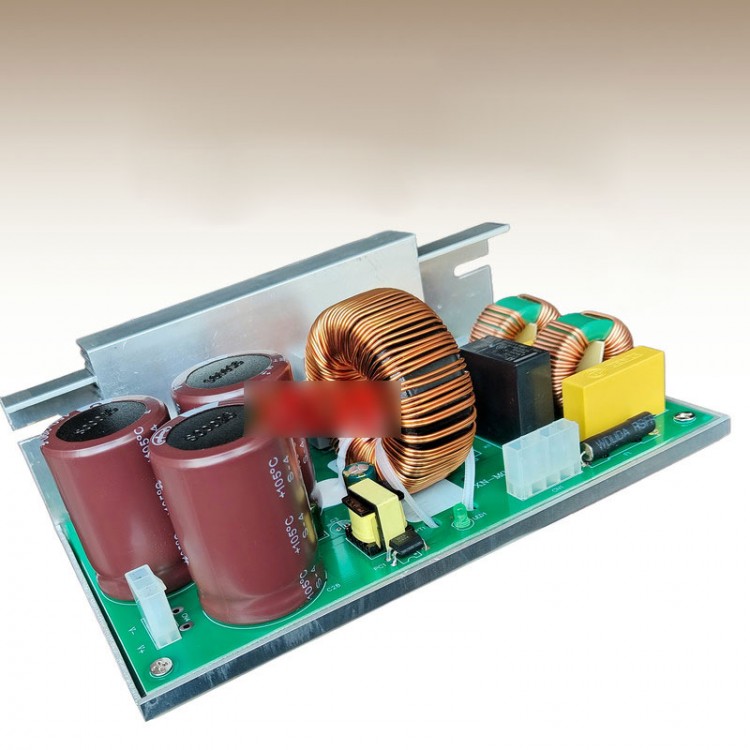

XN-M0908C AC100-264V 1500W PFC Module without Guide Rail High Power AC-DC DPF Non-isolated Power Supply
Specification:
- Model: XN-M0908C
- Input power supply voltage: AC100 - 264V
- Output voltage: DC395 (±2%)
- Power factor: 0.92 - 0.99 full load
- Efficiency: 0.95 above
- Rated power: 1500W (at 220V input); 60% derating at 110V input; forced air cooling based on the operating environment temperature
- Product size: 15.6x 6 x 9cm
- PCB fixing hole size: 4 x 3.6mm(diameter) hole; 14.6cm hole space for long side; 8cm hole space for short side
- Net weight: 600g
Package Included:
- 1 x PFC Module
Note:
- External fan forced cooling, fan does not occupy PCB area.
- Due to different user requirements, the docking terminal (model 5569-3P straight pin) is not included.
