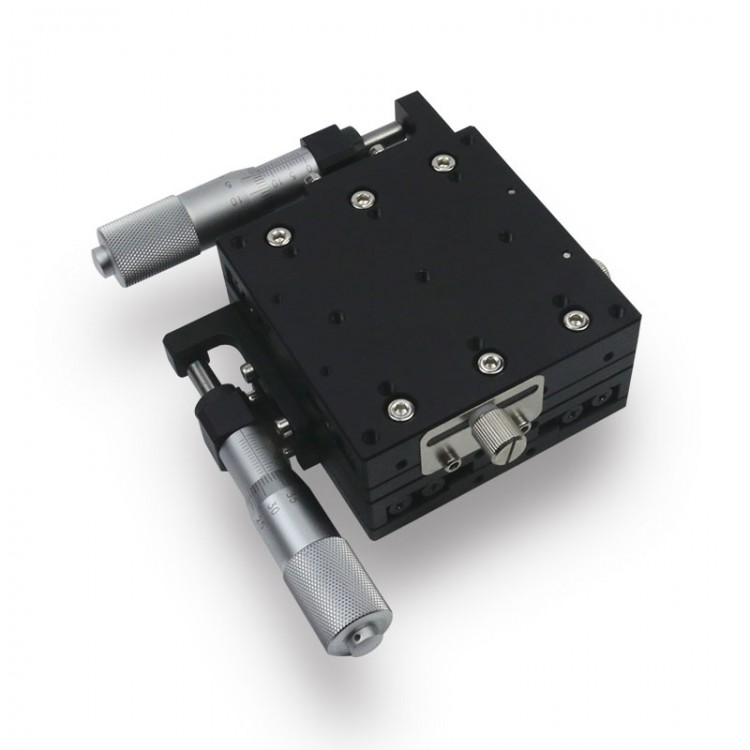

XY Axis 80*80mm Manual Displacement Platform Travel ±12.5mm High Precision Sliding Table XY80-L
Features:
- Using cross roller guide for high accuracy, smooth movement
- Lightweight: its main material aluminum alloy makes it suitable for built in other devices
- Drive Mode: micrometer drive mode for extra accuracy
- To achieve precise mobile, high precision, stable performance, supporting facilities, strong interchangeability, convenient installation and disassembly. Proportion of mounting hole design to adapt to different requirements for installation and convenient fast combined into multidimensional mobile station.
Parameters:
- Model: XY80-L
- Move Direction: Linear adjustment of two directions can be achieved
- Material: Aluminum Alloy (Surface black anodizing)
- Rail Type: V-type precise cross roller guide

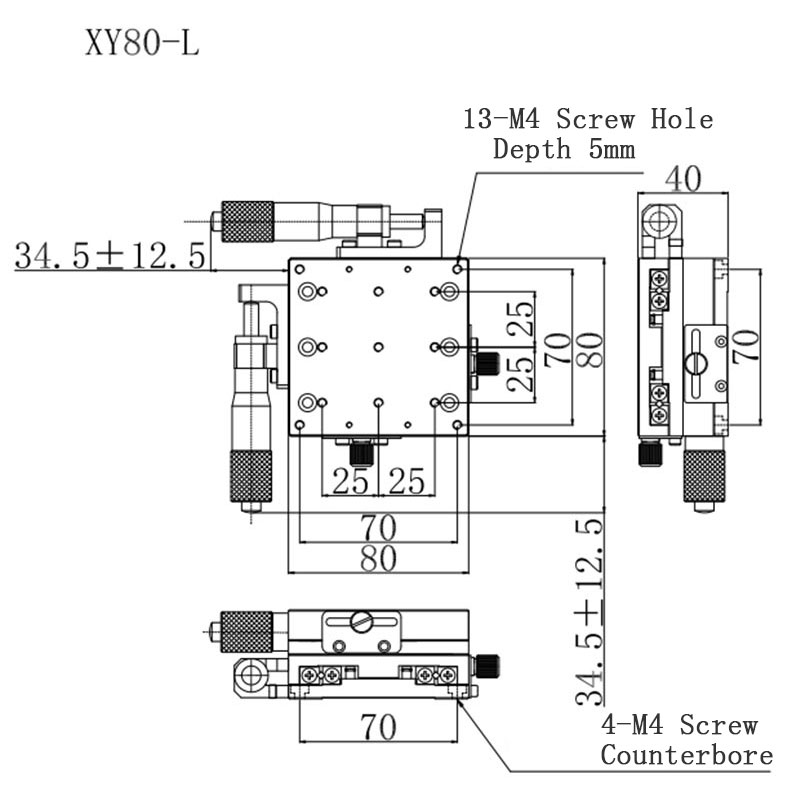

- Dimension: 80*80 mm
- Travel: X Axis: ±12.5mm; Y Axis: ±12.5mm
- Table Thickness: 40mm
- Drive Mode: micrometer
- Minimum scale: 10μm
- Load: 98.8N (10kgf)
- Accuracy: 10μm
- Linearity: 5μm
- Weight: 1.1kg
Package Included:
- 1 x Manual Displacement Platform
