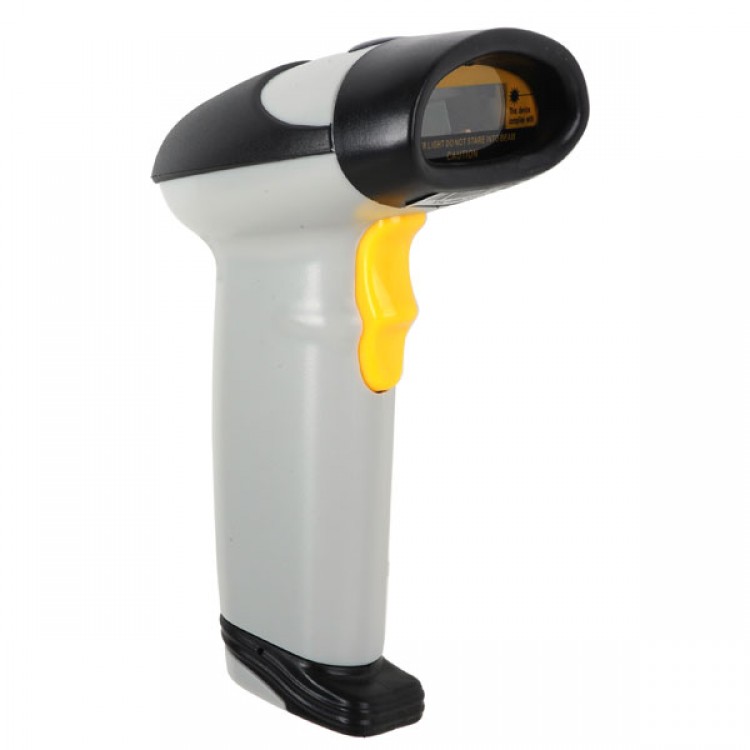

XYL-890 Laser Barcode Scanner Bar Code Reader Decoder of POS- White

Availability: Out Of Stock

  • Price:$30.69
  • Price in reward points: 307 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $30.08 $29.46 $28.54 $27.31 Contact US
Quantity:

XYL-890 Laser Barcode Scanner Bar Code Reader Decoder of POS- White
Features
:
- simple installation, keyboard wedge, serial, wand emulation etc
- superior keyboard wedge interface-NOVELL compatible-auto caps lock detection ensures that the data always appears on the computers just the way it is encoded in the bar code
- simple programming from your keyboard or scan bar codes
- over 180 configurable options
- auto detection of the type of computer (PC, XT, AT, PS/2, and X Window terminal with a PC compatible keyboard interface)
- can be used with or without the keyboard
- supports over twenty different keyboard country layouts
- map bar code data to any key on the keyboard
- supports editing, operation include (REPLACE, stripping, filtering, convert case)
- programmable preamble, postamble, and termination strings
- READ/NO-READ indicators (buzzer and LED)
- superior reading performance utilizing advanced decoding algorithms
- extended ASCII support for code 128 bar codes
- low power consumption

Laser Barcode Scanner XYL-890

Functionality Item

Performance Parameter

Light Source

650 nm (visible)

Use Type

Hand-held or bracket-held installation

Bit Error Rate (BER)

1/5 million

Decode Capability

UPC/EAN, UPC/EAN with Supplemental, UCC/EAN 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5

Interfaces

RS232, USB,PS/2

Scanning Type

Automatic scanning or manual

Resolution

0.10mm (4mil)PCS0.9

Depth of Field

0-750mm PCS0.9

Scan Rate

120 scans per second

Reading Preciseness

0.40-0.825mm

Reading Distance

2.5-600mm

Transfer Rate

RS232 baudrate2400-38400

Print Contrast

30% minimum reflective difference

Scanning Angle

Inclination angle 45°, Elevation angle 60°

Operating Temperature

0°C - 50°C / 32°F to 122°F

Storage Temperature

-40°C - 70°C / -40°F to 158°F

Operating Humidity

5% - 95% (non condensing)

Storage Humidity

5% - 95% (non condensing)

Power Voltage

5V

Working Current

57mA

Static Current

36mA

Shock

1.5m drop on concrete surface

Ambient Light Immunity

Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight

Electrostatic Discharge

Conforms to ±15KV air discharge and ±8KV of contact discharge

EMI/EMS

En50081, par1 criteria

Dustproof

en50082, par1 criteria

Housing Material

ABS+EVA

Color

White

Dimensions

166×63×88mm

Weight

178g

Safety

China National Laser Safety Standard Level 2

Package included:



-1 x USB Barcode scanner with user manual
