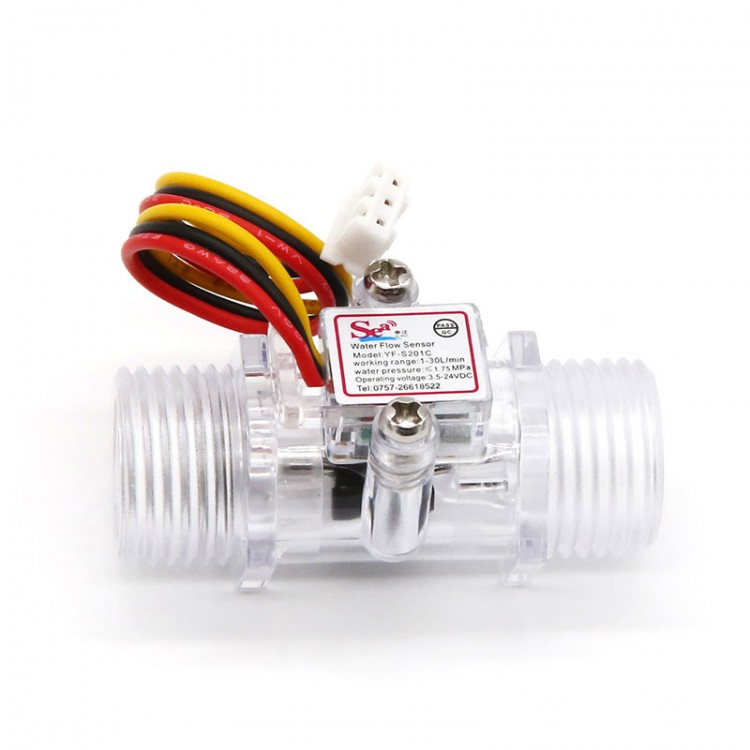

YF-S201C 1-30L/min Transparent Hall-Effect Water Flow Sensor G1/2 Water Flow Meter for Water Heaters

YF-S201C 1-30L/min Transparent Hall-Effect Water Flow Sensor G1/2 Water Flow Meter for Water Heaters

Attention:
* The labeled range of 1-30L/min indicates that the maximum working capacity can reach up to 30L/min. However, the actual accurate measurement range is 1-25L/min. Exceeding this range may affect measurement accuracy. It is recommended to use 1-25L/min as the primary reference range.

Features:
Hall effect water flow sensor
* Imported Hall components
* Quick response
* Wide application

Fine craftsmanship and high-quality materials
* Waterproof sealing
* Wear-resistant
* Complies with ROHS testing
* High sensitivity

Raw materials comply with ROHS standards
* Simple design and original imported chips
* High pressure resistance

Application range
* Suitable for water heaters, water dispensers, water vending machines, and campus card machines.

Specifications:
* Model: YF-S201C
* Working Range: 1-30L/min
* Interface Size: G1/2
* Working Voltage Range: DC 3.5～24V

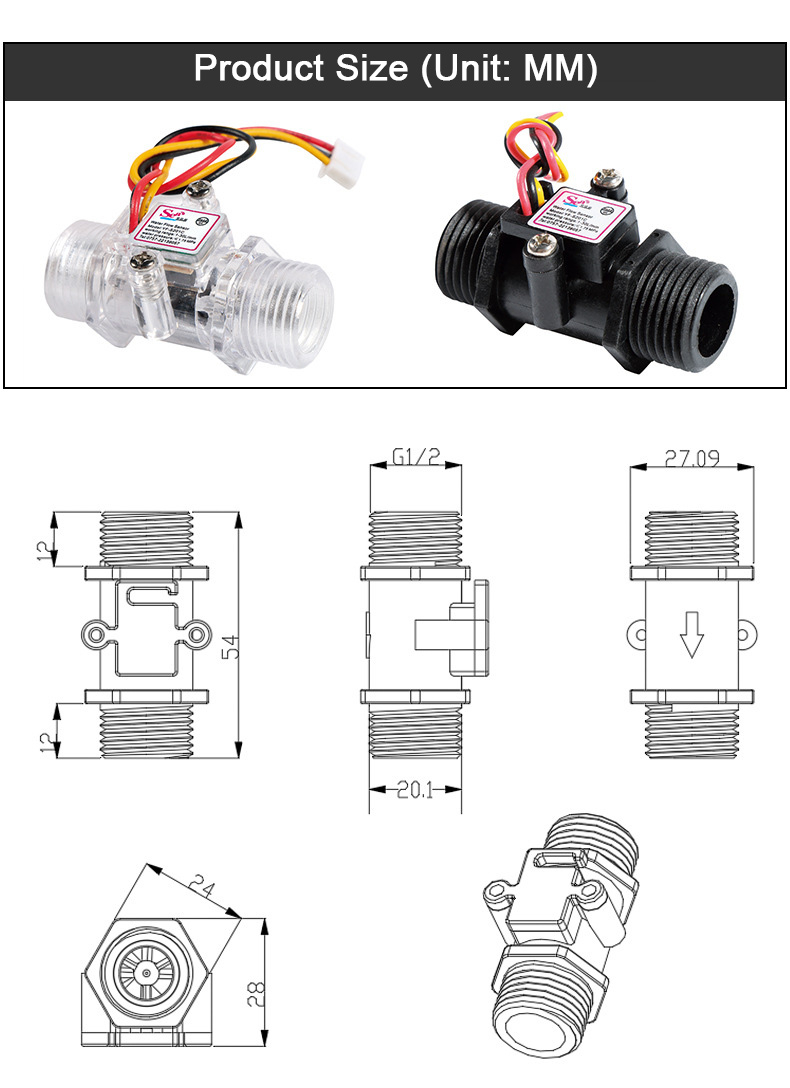

* Inner/Outer Diameter: Inlet inner diameter 14.5mm, outlet inner diameter 13.3mm, and outer diameter 20.1mm
* Thread Length: 12.7mm
* Material: PC material
* Water Pressure Resistance: ≤1.75MPa
* Output Pulse High Level: >DC 4.7V (Input voltage DC 5V)
* Output Pulse Low Level: <DC 0.5V (Input voltage DC 5V)
* Insulation Resistance: >100MΩ
* Accuracy: ±3% in the range of 1～25L/MIN
* Sealing: All holes sealed, with a 1.7MPa water pressure test for 1 minute, no leakage or deformation observed
* Flow Pulse Characteristics: (Hz) = [5.0 * Q] ± 5% (Q—flow rate L/min), meaning 300 pulses per liter of water.

Package Included:
* 1 x Transparent Water Flow Sensor

Packaging Details:
* Weight: 0.2kg

Precautions:
* Severe impact and chemical corrosion are strictly prohibited.
* Throwing or collision is strictly prohibited.
* When it is installed vertically, the tilt angle should not exceed 5 degrees.
* The medium temperature should not exceed 80℃.
