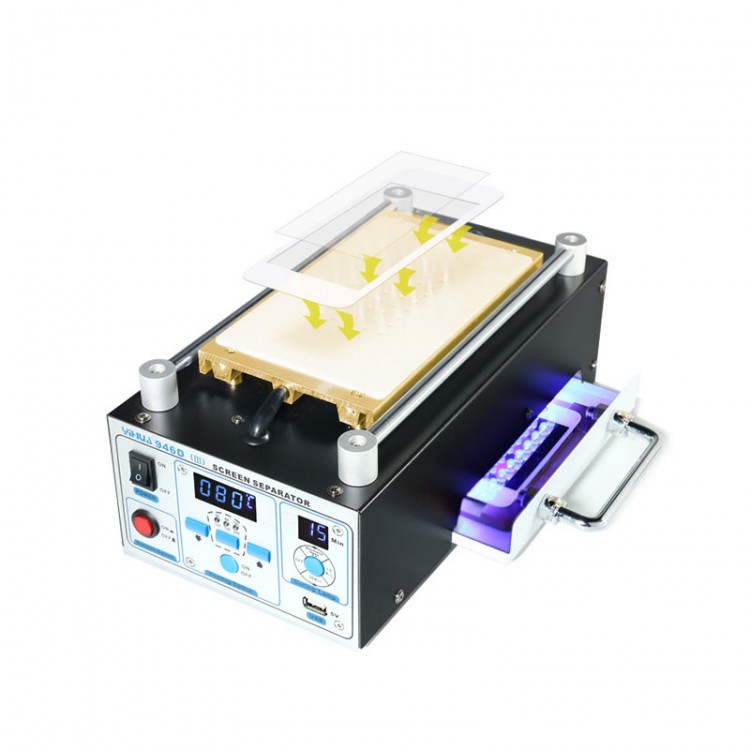

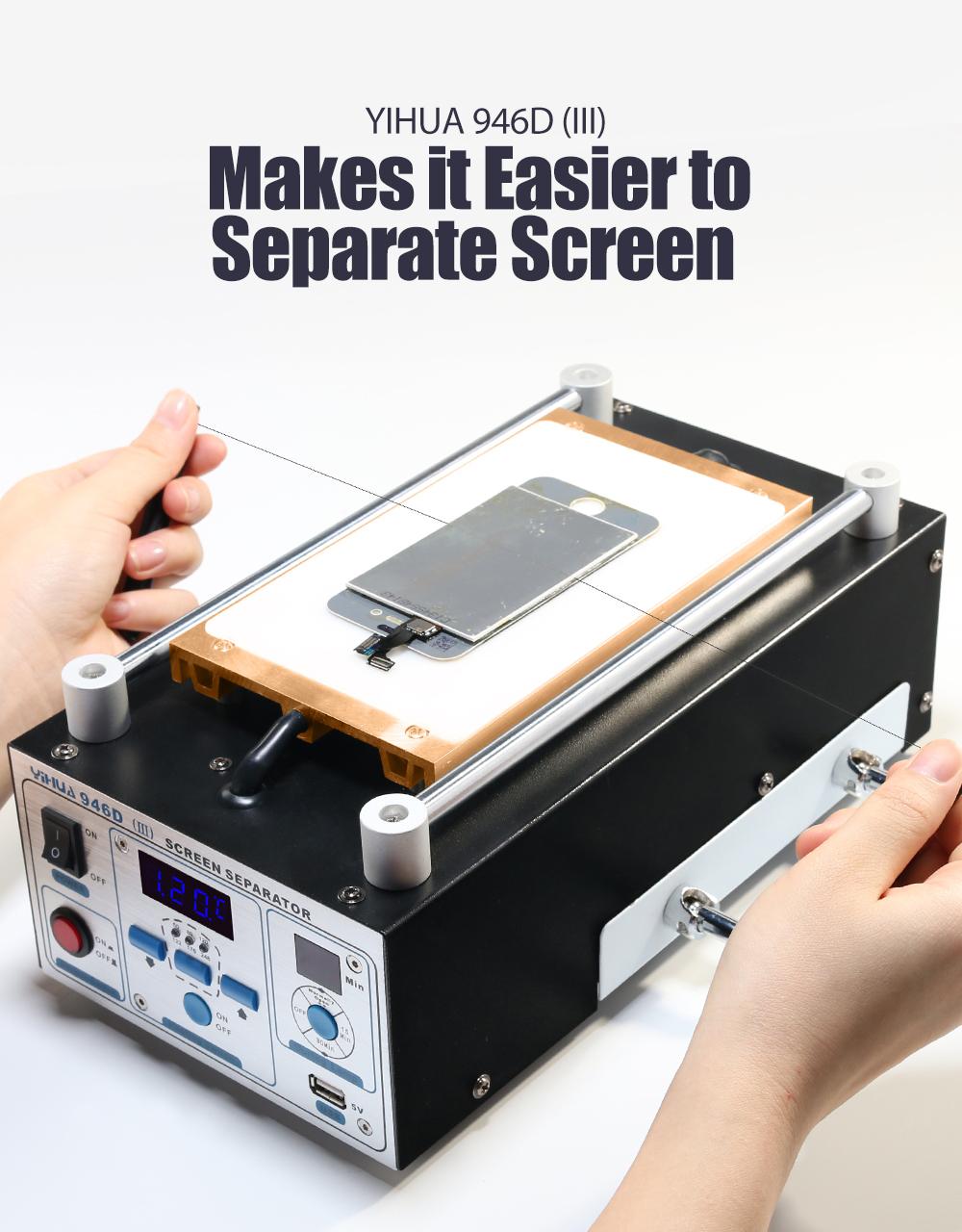

YIHUA 946D-III High Quality LCD Screen Separator PID Temperature Control for Mobile Phone Screen Removal

YIHUA 946D-III High Quality LCD Screen Separator PID Temperature Control for Mobile Phone Screen Removal

Features:
- Adopting PID programmable temperature control technology, accurate temperature adjustment, stable temperature, and small error.
- The heating aluminum board is flat and smooth, and the surface temperature of the aluminum board is uniform.
- Built in long service life vacuum pump, with strong suction and low noise.
- Equipped with a 5V 1A USB phone charging interface, suitable for various smartphones on the market.

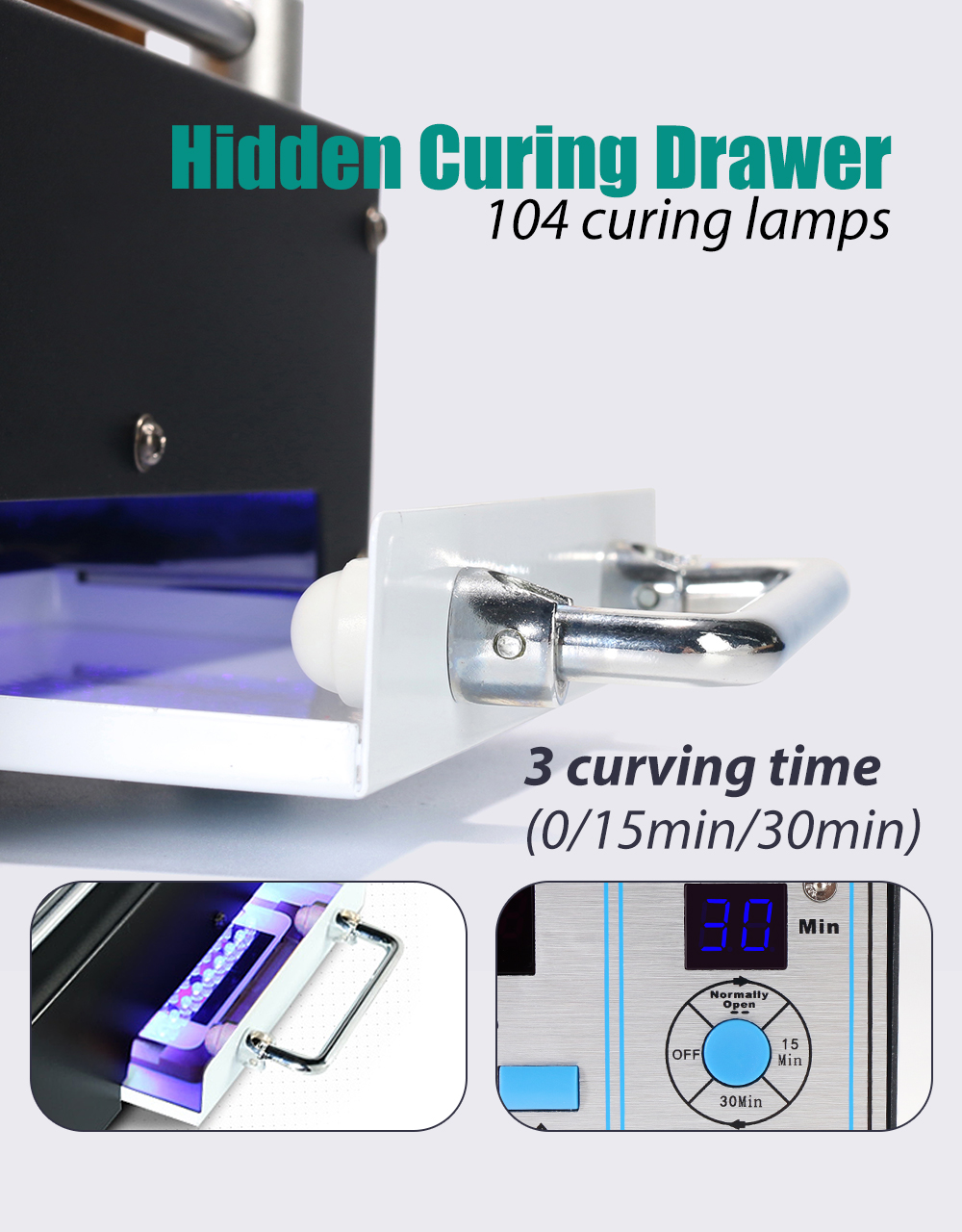

- Equipped with UV curing lamp, convenient and efficient for screen bonding.

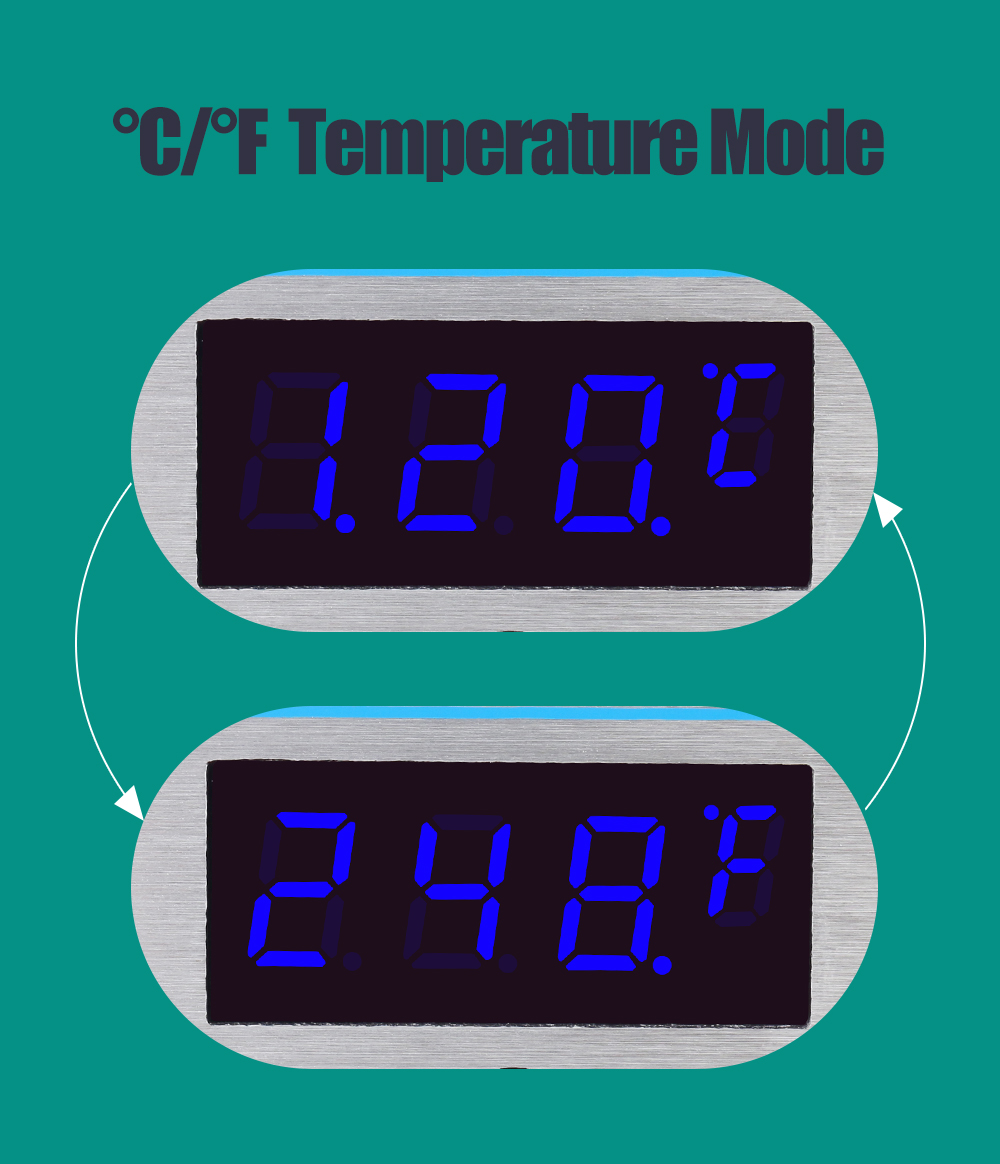

- Humanized Celsius/Fahrenheit temperature display conversion.
- Digital temperature calibration, which is convenient and efficient.
- Adopting SMT double-sided board technology, the interior is neat, the signal flow direction is clear, and the machine is more stable and safe.

Specification:
- Model: 946D-III
- Size: L x W x H = 300 x 160 x 90mm±3mm
- Current display method: LED digital display
- Vacuum pump power: 12W
- Vacuum suction: 0.05MPa
- Aluminum board to GND impedance: <2ohm
- Aluminum board size: 200 x 110mm
- UV curing lamp power: 12W
- USB output: 5V/1A
- Power: 370W
- Working temperature: 0 ~ 40℃
- Storage temperature: -20℃ ~ 80℃
- Storage humidity: 35% ~ 45%
- Temperature control technology: PID programmed temperature control
- Built-in long service vacuum pump: yes
- ℃/℉ Switching: yes
- Temperature calibration: digital temperature calibration

Package Included:
- 1 x Set of Screen Separator
