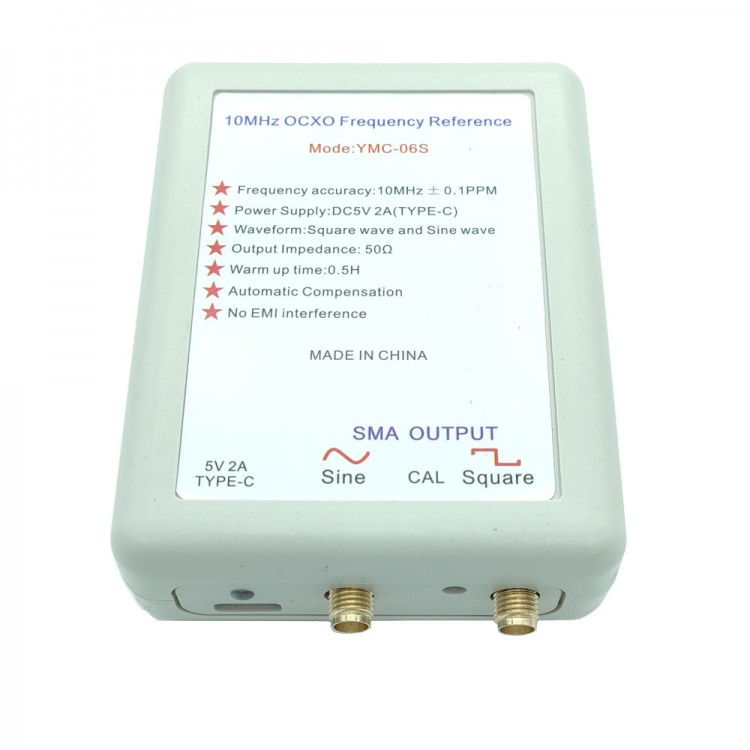

YMC-06S 10MHz High Precision OCXO Frequency Reference Square Wave and Sine Wave 2-Channel Output USB Power Supply
Description:
- YMC-06S adopts high-precision OCXO, with good frequency stability and ultra-low phase noise. It can be used in instruments, communication systems, and audio systems, and is a reliable choice for upgrading frequency meters/digital players/audio decoders/audio systems.
- Although YMC-06S uses USB 5V power supply, it fully considers EMC electromagnetic interference issues in its design. High frequency EMI filtering components are extensively used in key circuits, and temperature compensation technology is adopted, which greatly improves frequency stability and temperature drift compared to similar products in the market. Therefore, 10MHz frequency stability is better and frequency is more accurate.

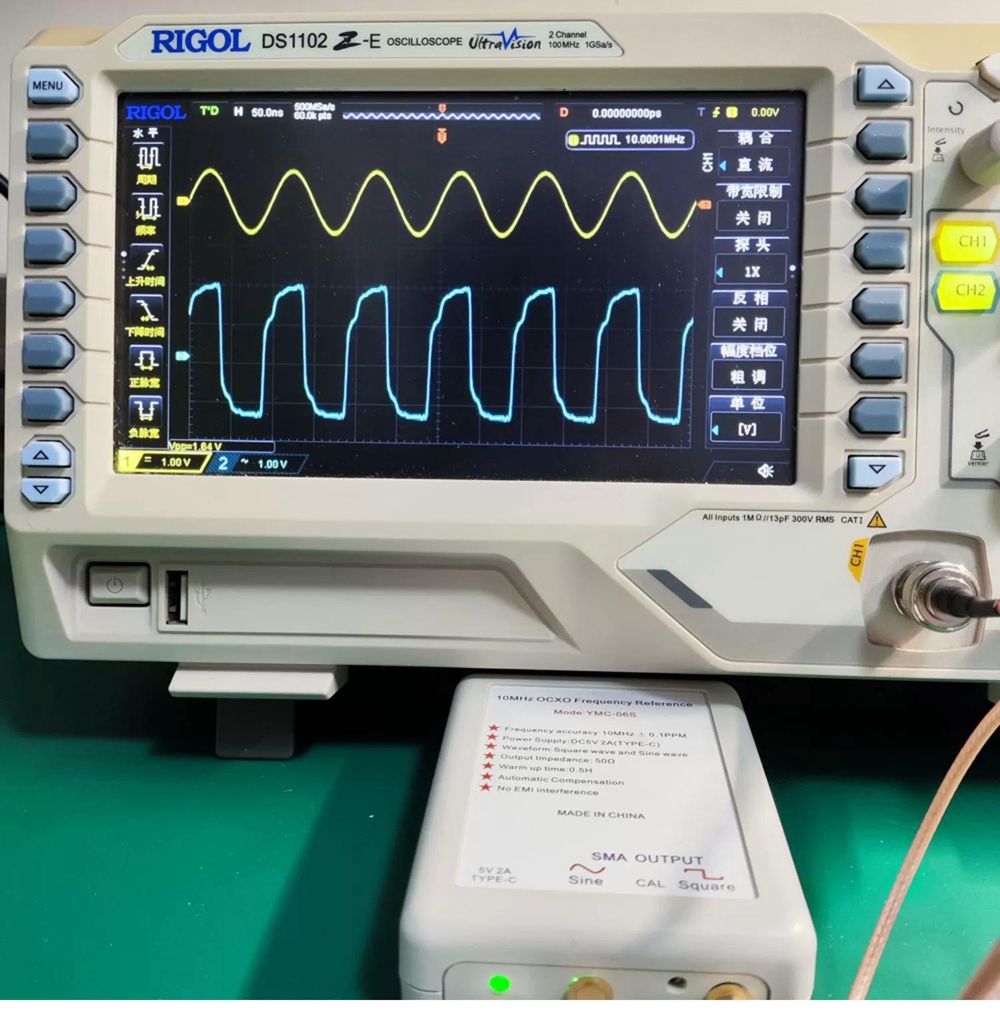

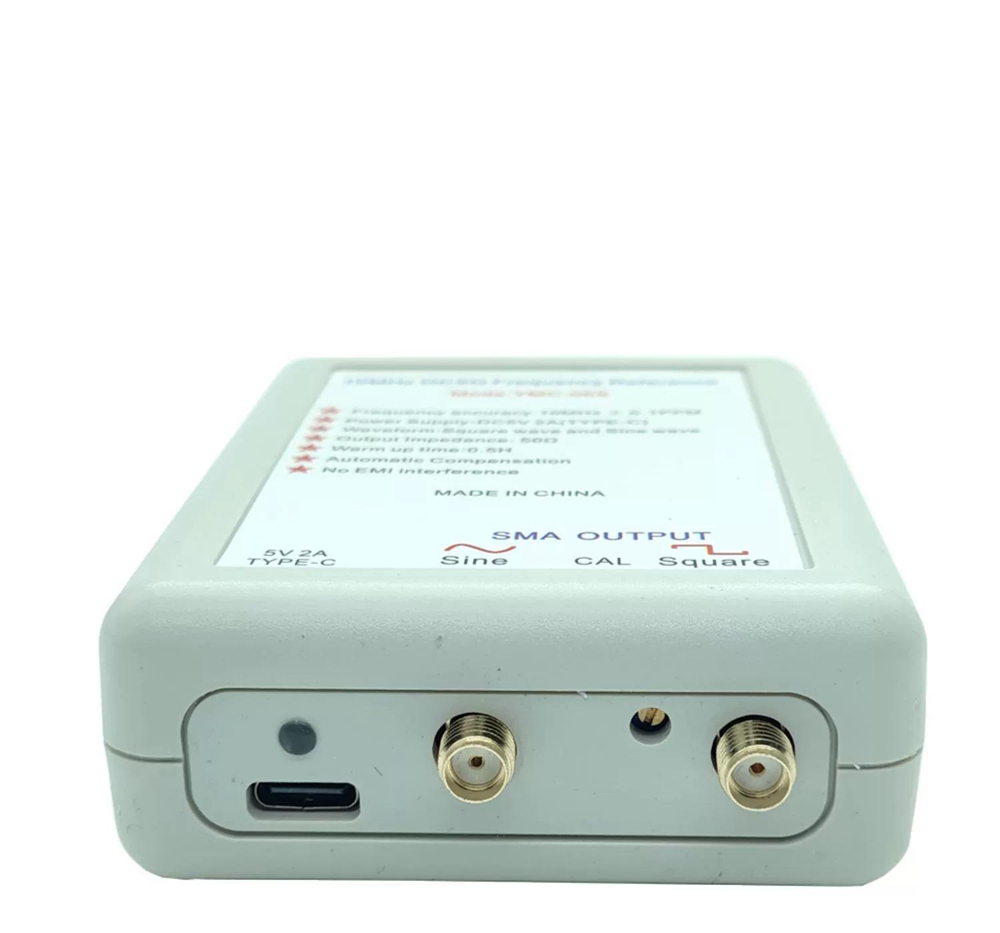

- YMC-06S outputs one-channel sine wave and one-channel square wave, and is equipped with a casing for insulation. There is a 3296 potentiometer left at the panel for secondary calibration, and users can calibrate the frequency of 10MHz with higher-level instruments.
Features:
- Handheld, small size and light weight, with green working indicator light
- USB TYPE-C interface supports 5V 1A power supply. Mobile phone chargers and power banks can be used to supply power
- OCXO provides 10MHz frequency source. Its accuracy is very high
- Frequency accuracy: 10.000000MHz ± 0.1PPM (ta=23±5°C)
- Reference voltage accuracy: 5.0000V ± 0.05% (ta=23±5°C)
Application:
- Used as a reference for instruments such as sound systems, decoders, shortwave radios, frequency meters and signal sources.
- Used as an external reference for instrumentation or to replace the reference source inside audio equipment.
- Provides a 5.0000V 5 ½ reference voltage source and a 10.000000MHz frequency reference source.
Package Included:
- 1 x Frequency Reference
- 1 x Transparent Box
