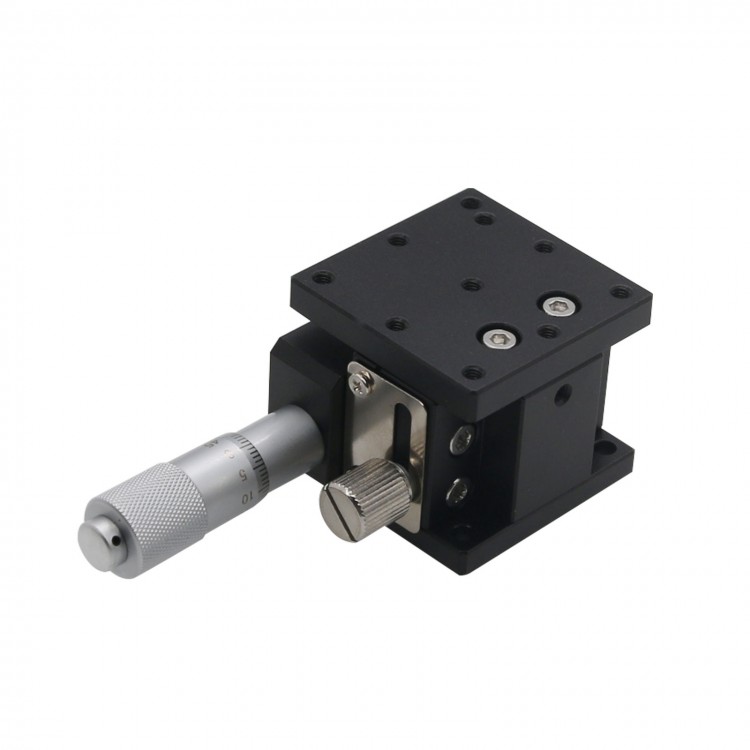

Z Axis 40*40mm Manual Displacement Platform Linear Stage Adjustable Sliding Table LZ40
Description:
- Using cross roller guide for high accuracy, smooth movement
- Lightweight: its main material aluminum alloy makes it suitable for built in other devices
- Drive Mode: micrometer drive mode for extra accuracy
- To achieve precise mobile, high precision, stable performance, supporting facilities, strong interchangeability, convenient installation and disassembly. Proportion of mounting hole design to adapt to different requirements for installation and convenient fast combined into multidimensional mobile station.
- Widely used in optical instruments and apparatus, measuring equipment, testing fixture, Semiconductor manufacturing equipment, testing machine, microscope, transporter, process machine, medical equipment, printing machine, etc.
Parameters:
- Model: LZ40
- Adjustment: Horizontal Lifting Fine Adjustment
- Material: Aluminum Alloy (Surface black anodizing)
- Dimension: 40 *40mm
- Rail Type: V-type precise cross roller guide
- Travel: Z axis 10mm
- Table Thickness: 36-46mm
- Drive Mode: micrometer
- Minimum scale: 10μm
- Load: 19.6N (2kgf)
- Accuracy: 10μm
- Linearity: 5μm
- Weight: 0.26kg
Package Included:
- 1 x Manual Displacement Platform
