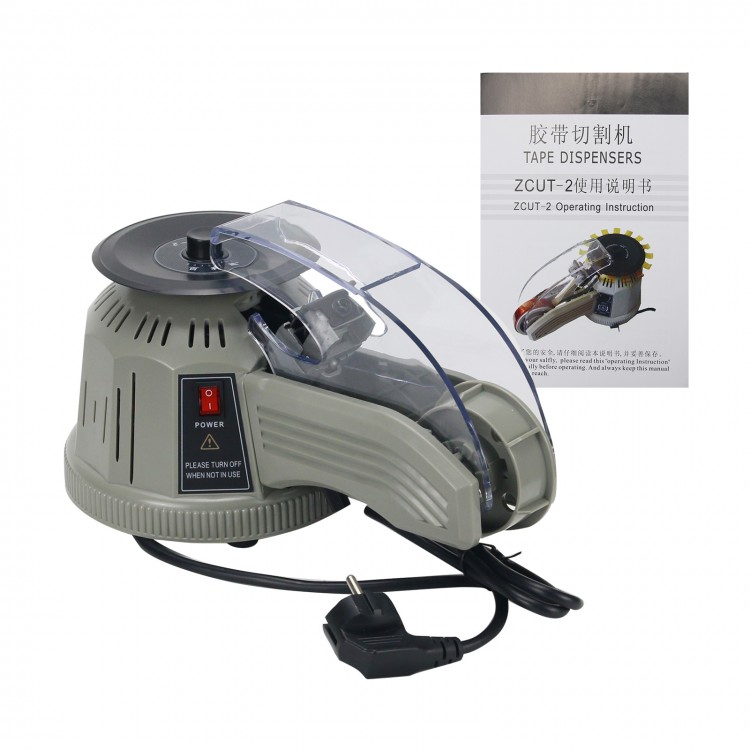

ZCUT-2 Automatic Tape Dispenser Adhesive Tape Cutter Packaging Machine 3-22mm Width 220V
This is a high productivity carousel dispenser which semi-automatically cuts and places a pre-determined length of tape onto a rotating carousel for maximum single or multiple operator efficiency. Adjust to fit different width and length rolls Blade renew easily and with safely board on the edge. It accepts tape widths from 0.12" to 0.87" (3 to 22mm) and cuts lengths from 0.43" to 2.17" (11 to 55 mm). It allows up to 20 pieces of tape to be cut at the press of a button, accepts most tapes and is perfect for specialty packaging, contract packaging, assembly, wire harnessing, and other manufacturing purposes. It is a proven time and labor saving machine.
1. The ON/OFF switch must be "on".
2. Press the start switch 2 on the carousel. The cut pieces of tape will be distributed about half way around the carousel.
3. Before you begin operation, test the process by cutting two or three pieces, Check the precision length of the cut.
4. To make the tape feed all the way around the carousel, press the start switch 2 again.
5. If the motor over heats, the most will automatically shut the machine off. When that happens, let the motor cool before further use.
6. Whenever you open the safety cover 14, the device will stop automatically.
Used for kinds of scotch tape, packing tape, cloth tape, glass tape, pp tape, double-side tape, teflon tape, mylar tape, vinyl tape polyethylene tape, masking tape, cotton cloth tape, acetate cloth tape soft, medical tape, etc.
It is not suit for high adhesive and elasticity tapes cutting. Please use alcohol to clear the blade and take out the remain tape in the machine when you finished cutting.
- The length of tape can be setting.
- Tape can be automatically outlet and cutting.
- Size indications can be seen from the LED display.
- Enable to cut many kinds of tape with one machine, suitable for vinyl tape, cellophane tape, polyethylene tape, masking tape, Teflon tape, paper tape, acetate cloth tape, Mylar tape, aluminum foil tape, double sided tape, forming tape, bilateral tape etc.
- Once you hit a button, it sticks the tapes halfway around as it cuts.
- Simply change both upper and lower blades. They don't need to be adjusted.
- Unique feed system places tape on carousel for easy removal.
- Can cut Kapton tapes without curling. Can cut very slim tape, min. 3mm width.
- Environmental and saving tape while using.
- Type: Automatic Tape Dispensers
- Body Material: ABS
- Tape Width: 3 to 22 mm (0.12" to 0.87")
- Cutting Length: 11 to 55 mm (0.43" to 2.17")
- Tape Inner Diameter: 25/32/75 mm (1"/1.3"/3")
- Tape Outside Diameter: 130 mm (5.1")
- Power: 160W
- Machine Performance: I level
- Scope: vinyl / polyester film / Teflon / glass cloth / aluminum foil / cloth tape, etc.
- Overall Dimensions: 300x165x170mm
- 1 x Automatic Tape Dispenser 220V
- 1 x Instructions
