ZD-M42 DC9V-36V 39 42 Stepper Motor Driver Board Controller Module for CNC DIY
Description:
- High integration, high reliability
- Interface uses ultra-high-speed optocoupler isolation, strong anti-interference ability of high-frequency

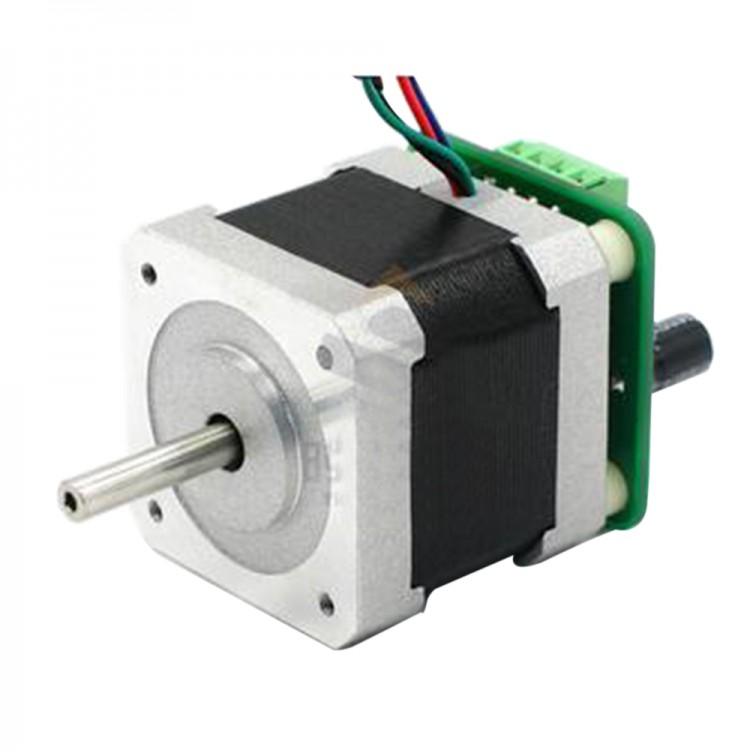

- Installed in the back of the motor, take up less space
- Maximum input voltage: DC 36V (peak)
- Anti-interference ability of high frequency
- Maximum input voltage: DC 32V (peak)
- Suitable fo r39/42 step motor 1A and below
- Not include motor, noar donly
Main function:
- Full step, two segments, four segments, sixteen segments adjustable
- Automatic overheat protection
- Linear adjustable output current limit: 0A-1A
- Automatic semi-flow locking
- With short circuit protection
- Supports offline, enable, lock and other functions
- Dimensions: 42cmx42cm
| Minimum | Rared | Maximum | Unit | ||
| Operating temperature | -30 | 80 | deg C | ||
| Input voltage(DC) | 9 | 24 | 36 | V | |
| Input frequency | 0 | 16000 | Hz | ||
| Output current | 0 | 1.0 | A | ||
| Interfqace voltage | H | 4.5 | 5 | 5.5 | V |
| L | 0 | 0 | 0.5 | V | |
Package included:
- 1 x Stepper Motor Driver
