ZXY6005D DC-DC power module 60V DC CCCV Stabilized High Voltage Power Supply ZXY6005 Upgrade Version
Features:
- Input voltage range : 15V to 62V
- output continuously adjustable voltage range : 0 to 60V
- Minimum dropout voltage of the input and output up to 2V ,stabilize working
- The models adjustable range : 0 to 5A
- Automatic constant voltage constant current
- MCU intelligent control, with the output shutdown fuction,under Wake Up Events turn-off , can set the parameters of voltage and current, pressed the output button, output.
- LCD1602 display
- be able to display a number of parameters at the same time (voltage, current, power, electrical quantity , time, etc.)
- High measurement resolution ratio: 10mV, 1mA
- Overvoltage, overcurrent, op, over-charging protection, overtime protection
- buzzer alarm fuction
Related instructions:
- Input voltage range: DC 15 ~ 62V
- Output voltage regulation range: DC 0 ~ 60V
- Output current Current Regulation range: DC 0 ~~ 5A
- power effect ion : CV less than 0.5% +10 mV, CC is less than 1% of +5 mA
- loading effect: CV less than 0.5% +10 mV, CC is less than 1% of +5 mA
- Output Ripple: <20mVpp
- 100Hz volatility transmission ratio: less than 1/10000
- Typical Efficiency: while input 32V, output 24V up tp 90%
- viewres: 10mV, 1mA
- Voltage display error: ± 0.5% +2
- Current display error: ± 1% +5
Protection:
- Over-voltage OVP: range 0.01V to 62.00V
- Over-current OCP: 0.001A to 5.100A
- Over power OPP: range 0.001W to 5.100A
- Overcharge with OAH: 1mAH to 900AH
- Overtime The OFT : set range from 1 second to 90 hours

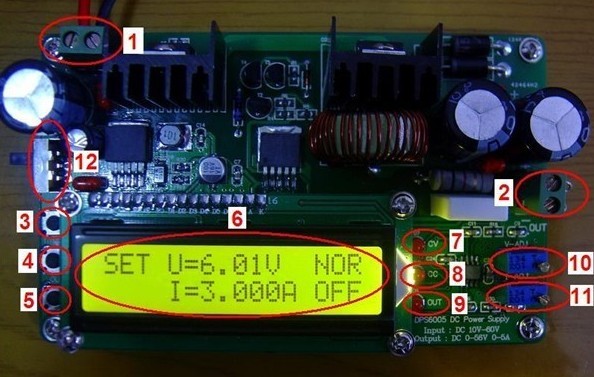

1 .DC power supply input terminal
2, DC power output terminal
3, upward function key
4, downward function key
5, the output control key
6,1602 LCD
7, constant voltage indicator
8, constant current indicator
9, the output state indicator
10, constant voltage adjust potentiometer
11,constant current adjust potentiometer
12, power switch
shown Input 32 V,output 24V Efficiency is close to 90%
