APM PRO New Mini APM Flight Control Opensource Hardware with Power Supply Module for Multicopter Aircraft
Description:
- Mini APM PRO, the new generation of APM
- Size: 60*38*14mm
- All interfaces are moved to the two sides, the middle part is no longer used for wiring
- Standard 2.54 dupont plug
Improvements made on the basis of original 2.6
- 3.3V LDO is easy to be burnt down, so it is changed to the imported large current LDO, support continously output 500MA high performance power supply
- Two diodes are changed to Pixhawk Pix PMEG2005 super low differential voltage dynatron
- 22UF/16V capacity was added into 5V module to ensure stable power of main controller (2560 part).
- All interfaces are designed at the two sides
- Two individual RGB colorful light
- Compression version PWM input, it only needs 4 servo cables to realilze 8 channels PWM
Power Supply Module Description:
- PM function: used for detecting battery voltage and current, flight control board receives these two signals, calculating battery remaining power, and remaining flying time
- This module has BEC function, can output 5.3V DC, max 3A continuous current, supply stable power for flight control board
- The signal cable connector adopts Japan original connector, making the connection reliable
- The Mini APM Pro Power Module is a simple way of providing your Mini APM Pro with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Note: If it is used for QAV 250 mini quadcopter, you should add damper base for the flight control
User Manual Down: Click Here

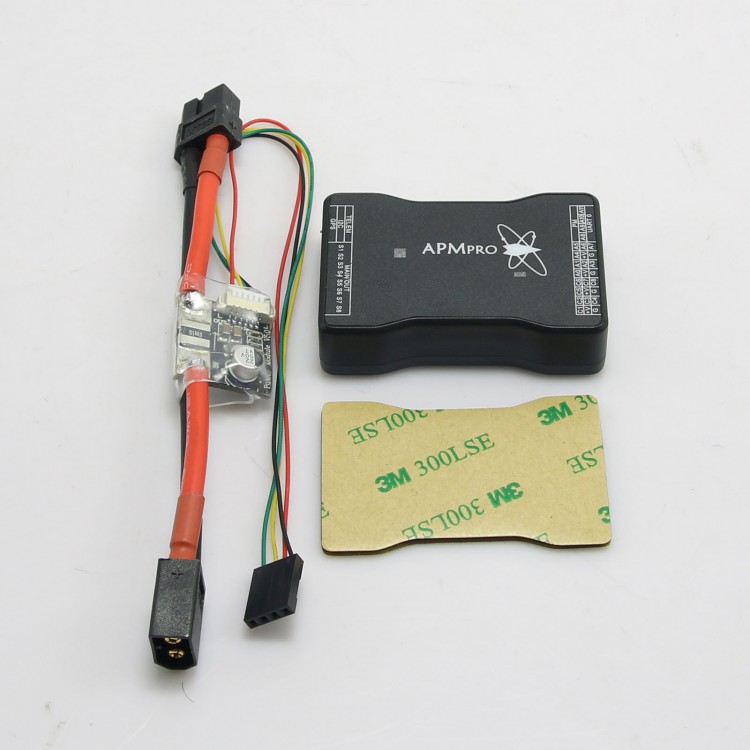

Package Include:
- Mini APM PRO flight control x 1 (including shell)
- PWM dupont cable x 4
- 3M adhesive paste x 1
- Power Supply Module for Mini APM Pro x 1
