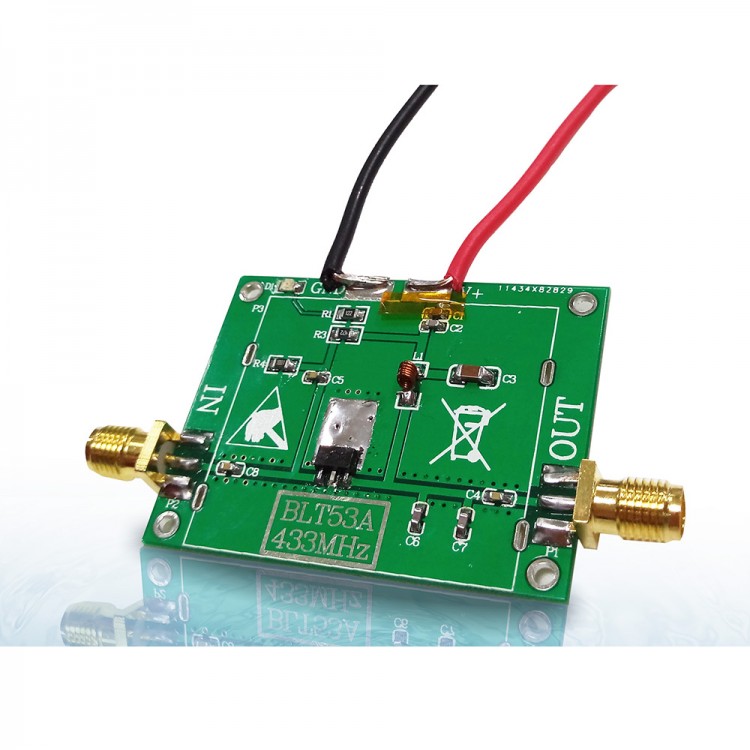

BLT53A 433M 2W Power Broadband RF Power Amplifier for HF FM VHF UHF RF Ham Radio
Features:
- Power supply voltage: 3.3V to + 6V DC (typical current 200mA, no input)
- Operating frequency: 433MHZ, input and output impedance: 50 ohms;
- Maximum output amplitude: 33dbm (2W) in 6V work
- Module size: 5 * 5CM
- Input impedance: 50Ohm
- Input maximum power: 20dBm
- Frequency band: 300-650MHz
- Main frequency power: 315Mhz (33dBm) 433MHz (33dBm)
Package Contents
- 433M 2W BLT53A power broadband RF power amplifier
