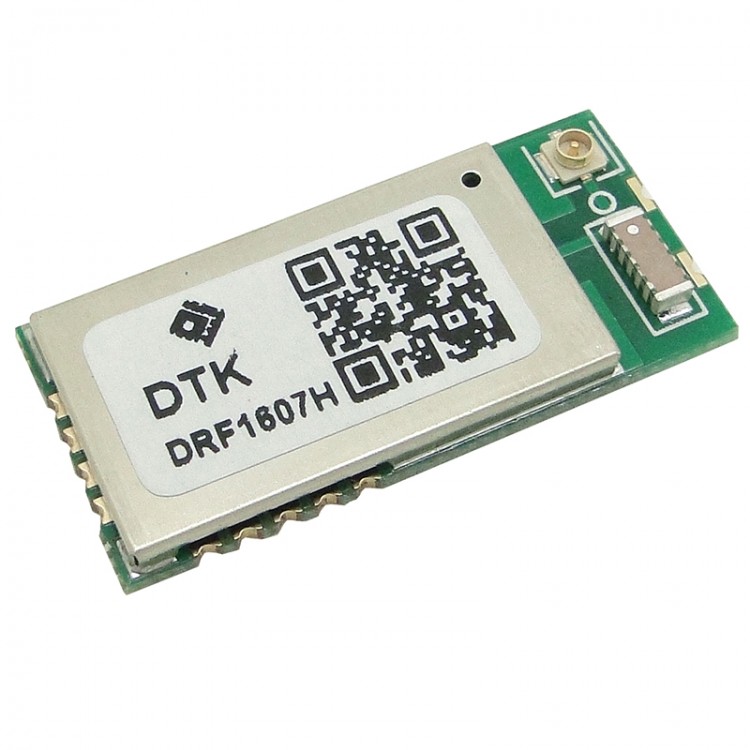

Zigbee Wireless Transmission Module-Zigbee Street Light Module CC2530 with Antenna DRF1607H-LD
Main function:
Seriel port turns to Zigbee weirless transmission, 200grade route series (Share the hardware with Zigbee module DRF1607H. The inner software is different from the transmission function, cannot use it with Zigbee module)
Parameters:
- Input voltage: DC3.3V, range: 2.6V-3.6V
- Temperature: -40~85 degree C
- N.W: 7.4G
- Seriel port speed rate: 38400bps (default);9600bps,19200bps,38400bps,57600bps,115200bps are optional
- Weirless frequency: 2.4G (2460MHz),(2045Mhz-2480MHz, 5MHz are optional)
- Weirless protocol: Zigbee2007
- Transmission distance: visible, broad, 400m( using onboard antenna);1.6km (using external antenna)
- Opertaing current: Transmitting: 120mA(Max.), 80MA(average), Receiving:45mA(Max.), STANDBY: 40MA (Max.)
- Receiving sensitivity: -110dBm
- Main chip: CC2530F256, 256KFLASH, Zigbee SOC chip
- Interface: UART3.3V TX-RX, Built-in RS485 direction control, can drive chip RS485,RS232, USB to RS232 directly
Package included:
- 1 x Moduel DRF1607H-LD
