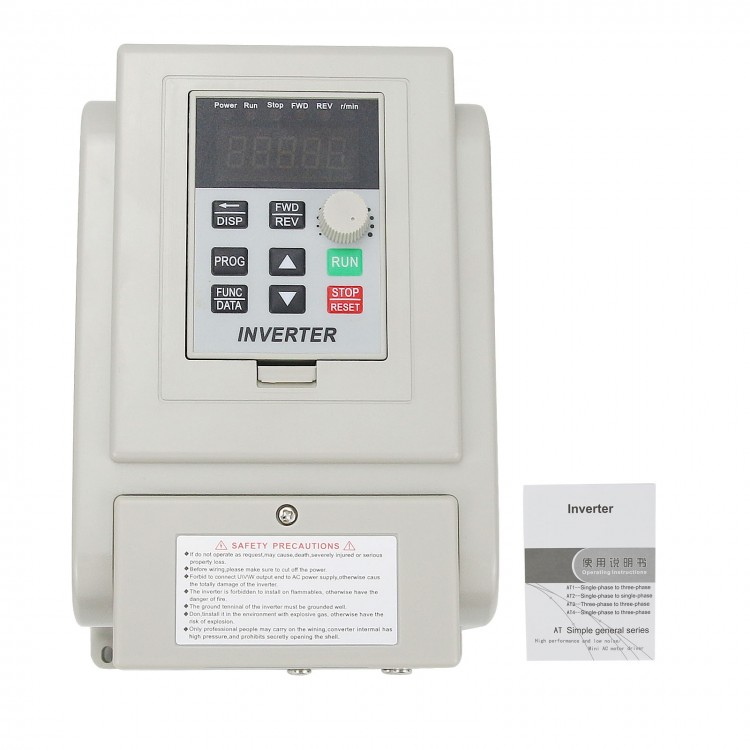

1.5KW 220V Variable Frequency Drive Inverter VFD Single Phase Input 3-Phase Output AT1-1500X

1.5KW 220V Variable Frequency Drive Inverter VFD Single Phase Input 3-Phase Output AT1-1500X

Specifications:
- Model: AT1-1500X
- Rated Voltage: AC220V (single phase)
- Suitable Motor Power: 1.5KW
- Filter: No filter
- DC power supply characteristics: voltage type
- Control Method: V/F open loop
- Output Voltage Adjustable Method: PWM control
- Housing Material: Plastic
- Rated Current: 8A
- Max. Output Frequency Range: 0 - 400Hz

Features:
1. The unique control method to achieve a high torque, high precision, wide speed drive to meet the general trend of high performance inverter; with Out of the anti-tripping performance of similar products and the ability to adapt to harsh power grids, temperature, humidity and dust interference, greatly improve the stability of the product.

2. By optimizing the PWM control technology and the overall design of electromagnetic compatibility to meet the user's application of low noise, low electromagnetic interference environmental requirements.

3. Panels are all three anti-paint treatment, effectively extending the life of the drive board completely 100%Waterproof, moisture-proof, anti-static.

4. Simple operation
Remove the direct screw connection. External access potentiometer 0-10v, 0-5v, 4-20ma stepless speed control, 6 multi-function input, two outputs (relay optional).

5. Up to 8 segment speed control, start and stop fast response time, low speed torque, with under-voltage, overvoltage, over-current, overheating, short circuit protection, the maximum output power inverter 400HZ.

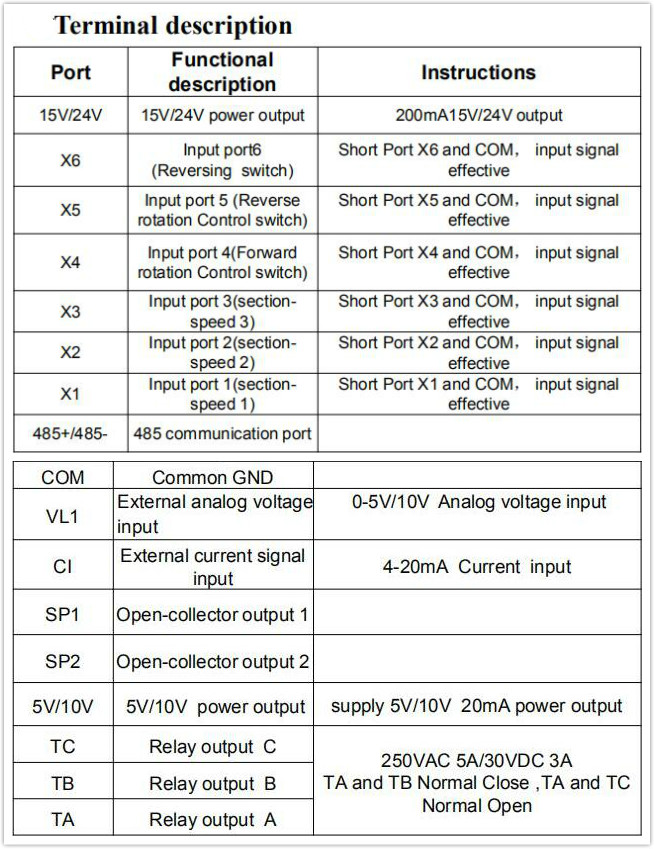

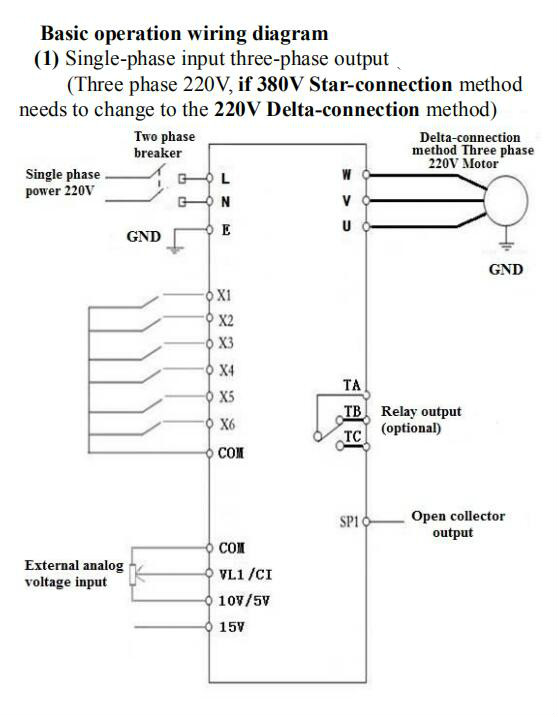

Functions of Terminals:
- L, N: Single Phase AC 220V Input Terminal
- U, V, W: Output terminal connect to 3-phase AC Motor
- GND: Ground

Package Included:
- 1 x Variable Frequency Drive

Note: This model can be equipped with multi-function relay. Please purchase separately.
