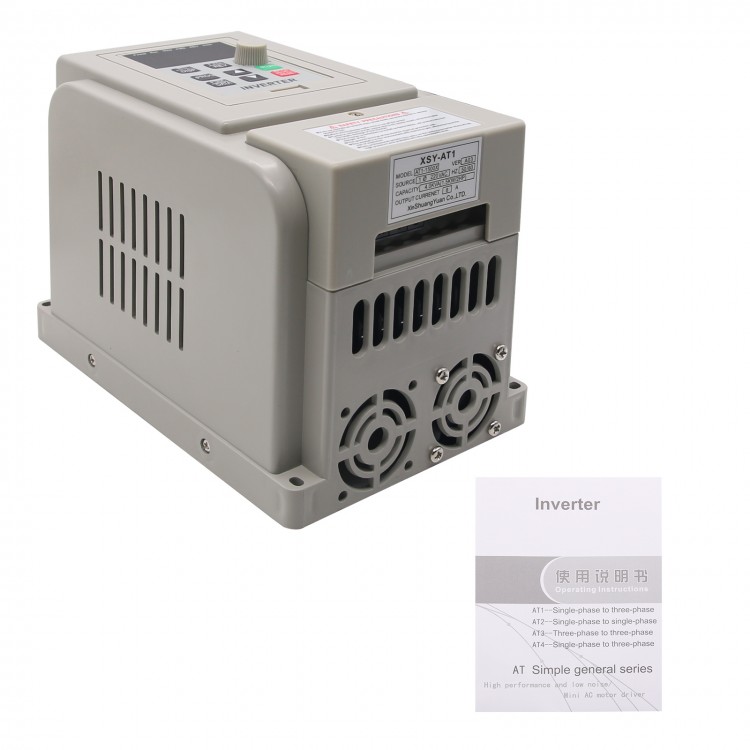

1.5KW 220V Variable Frequency Drive Converter Single Phase Input 3-Phase Output VFD for CNC Machine

1.5KW 220V Variable Frequency Drive Converter Single Phase Input  3-Phase Output VFD for CNC Machine

Features:
- This VFD uses unique control method to realize high moment of force, high precision and wide speed regulating range driving, with high performance.
- It has good anti-trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability.
- By optimizing PWM control technology and electromagnetic compatibility, it satisfies users' requirement of low noise, low electromagnetic interference.
- Simple to operate and wire, connect to wires after removing screws.
- Fast start and stop response, large moment of force at low speed.

Specifications:
- Model: AT1-1500S
- Rated Voltage: AC220V (single phase)
- Suitable Motor Power: 1.5kW
- Control Method: V/F closed loop
- Output Voltage Adjustable Method: PWM control
- Rated Current: 8A
- Max. Output Frequency Range: 0 - 400Hz

Functions of Buttons:
- DISP: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position
- PROG: Exit current (or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu.
- FUNG/DATA: Enter menus step-by-step, save setting parameters
- FWD/REV: 1. Press momentary button to start, release to stop
2. Rotate anticlockwise
- Up: Press or press and hold to add data or function code
- Down: Press or press and hold to minus data or function code
- RUN: Start
- STOP/RESET: 1. VFD stops running 2, Restore to interface before error
- Knob: Adjust rotational speed

Functions of Terminals:
- L, N: Single Phase AC 220V Input
- U, V, W: Output connect to 3-phase AC Motor
- GND: Ground

Package Included:
- 1 x Variable Frequency Drive
