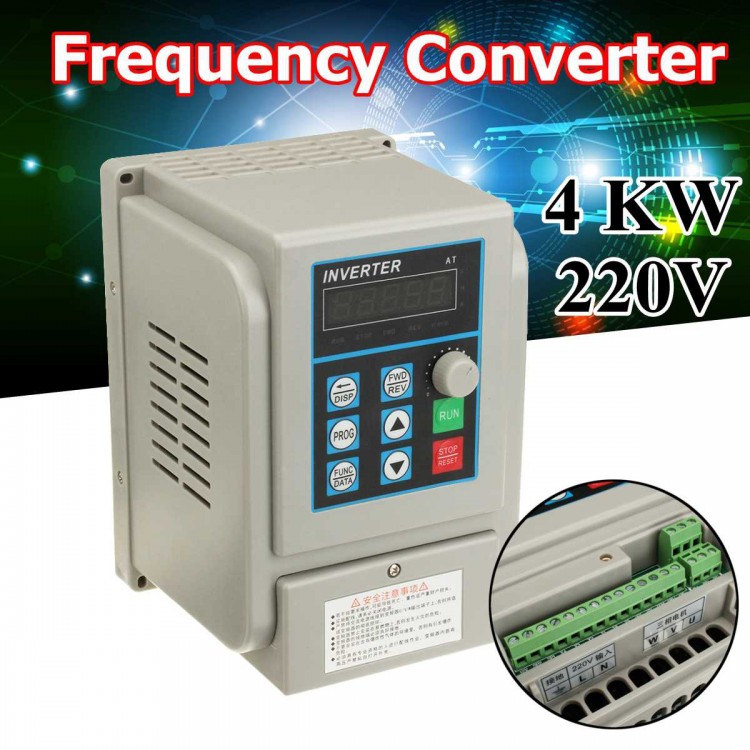

4KW 220V Variable Frequency Drive Converter Single Phase Input 3-Phase Output VFD for CNC Machine

Availability: In stock, usually dispatched in 1 business day

  • Price:$160.48
  • Price in reward points: 1605 Reward Points: 16
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $157.27 $154.06 $149.25 $142.83 Contact US
Quantity:

4KW 220V Variable Frequency Drive Converter Single Phase Input 3-Phase Output VFD for CNC Machine

Packaged included:

- 1 x Frequency Converter
- 1 x Manual

Specifications:

- Materials: Engineering plastic
- Adapting motor power: 4KW
- Power phase: Single-phase
- Rated voltage: Single-phase AC220V
- Rated Current: 12A
- Filter: with filter
- DC power supply characteristics: voltage type
- Control method: V/F open loop
- Output Voltage Regulation Mode: PWM control
- Size: 180x125x126mm/ 7.1"x4.9"x5"

Features:
- Uses unique control method to realize high torque, high precision and wide speed regulating range driving, with high performance.
- It has good anti-trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability.
- Through optimizing PWM control technology and electromagnetic compatibility, it satisfies users' requirement of low noise, low electromagnetic interference.
- Aluminum base heat sink for better heat dissipation and safer use.
- Externally accessible potentiometers 0-10V, 0-5V, 4-20ma, 6 multi-function inputs, 3 outputs (relays optional), up to 8 stages of speed control.
- Start stop response time is fast, low torque.
- With under-voltage, overvoltage, over-current, overheating, short circuit p protection.
- Frequency converter maximum output rate 400hz.

Note: Please read the user manual carefully before using!
