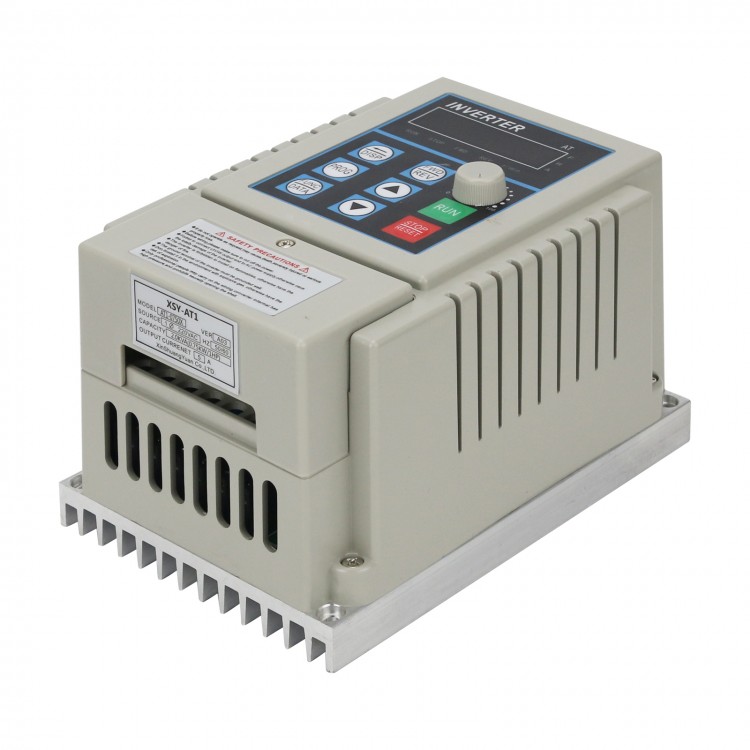

220V 0.75KW Variable Frequency Drive Converter Frequency Converter Single Phase for CNC AT1-0750X
Description:
This Variable Frequency Drive is made of high quality shell material, heat resistant and flame retardant. Humanized keyboard design makes it easy to operate. Digital display screen makes it convenient to read clearly.
Features:
- This VFD uses unique control method to realize high moment of force, high precision and wide speed regulating range driving, with high performance.
- It has good anti-trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability.
- By optimizing PWM control technology and electromagnetic compatibility, it satisfies users' requirement of low noise, low electromagnetic interference.
- Over current, over voltage, over heat, overload, under voltage, intelligent power module protection.
- Simple to operate and wire. Fast start and stop response, large moment of force at low speed.
Specifications:
- Model: AT1-0750X
-Application Range: Universal
-Power Supply Phase: Single Phase
- Rated Voltage: AC 220V (Single Phrase)
- Power Supply Voltage: Low Voltage
- Suitable Motor Power: 0.75KW (750W)
- Filter: No
- DC Power Supply: Voltage Type
- Control Method: V/F Open Loop
- Adjustable Output Voltage: via PWM Control
- Housing Material: Plastic
- Rated Current: 5A
- Size: 116 x 100.1 x 157mm (W*H*Thickness)
Package Included:
- 1 x Variable Frequency Drive
Note: Optional R485 communications port is compatible with relay. If needed, please contact us.
Introduction of Panel Buttons:
Indicators Instruction:
- FWD: CW Indicator (When it is on, it means that the VFD is at the state of CW.)
- REV: CCW Indicator (When it is on, it means that the VFD is at the state of CCW.)
- r/min: RPM Indicator (When it is on, it means that the RPM is displayed. )
- H: Frequency Indicator (When it is on, it means that the frequency is displayed.)
- V: Voltage Indicator (When it is on, it means that the voltage is displayed.)
- A: Current Indicator (When it is on, it means that the current is displayed.)
