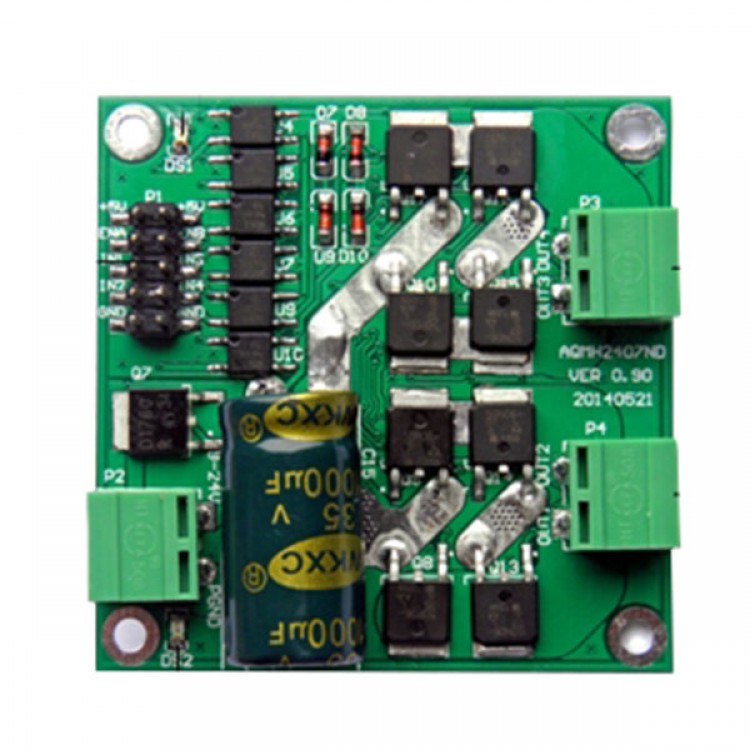

12/24V 7A 160W Dual Channel DC Motor Driving Module Board H Bridge L298 Logic
Features:
- Small size: 5.5cm×5.5cm
- Support voltage: 7V~24V, lack voltage protection
- Dual channel motor interface, each channel rated output current 7A
- Like L298 control logic, each channel all support three cable control, CW CCW
- Enabling signal can externally connect with PWM, CW CCW control signal can parallel control iwth limit switch
- Control signal adopting current driving mode, support most singlechip directly driving
- Using coupling to isolate all control signal
- Has static leak circuit
Parameters:
- Input voltage range: DC6.5---27V
- Rated input voltage: DC 12V/24V
- Input channel: 2
- Each channel rated output current: 7A
- Each peak output current: 50A
- Each channel rated output power: 84W (12V power supply), 168W (24V power supply)
- Control signal voltage: 3-6.5V
- Each channel control signal current: 3-11mA
- PWM min available pulse width: 5us
- Working emp: -25---80degree:
- Dimension: 5.5cm×5.5cm×2.0cm
