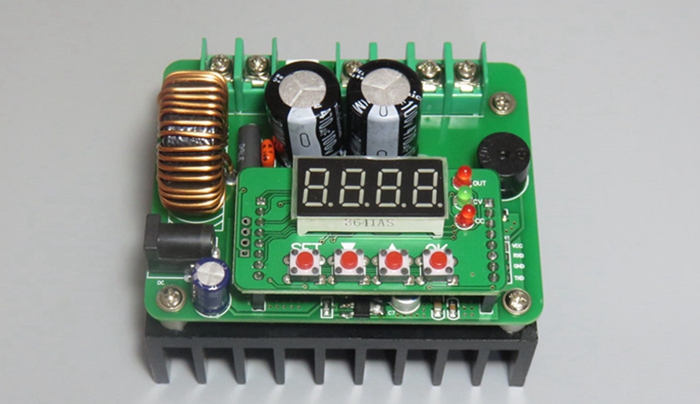

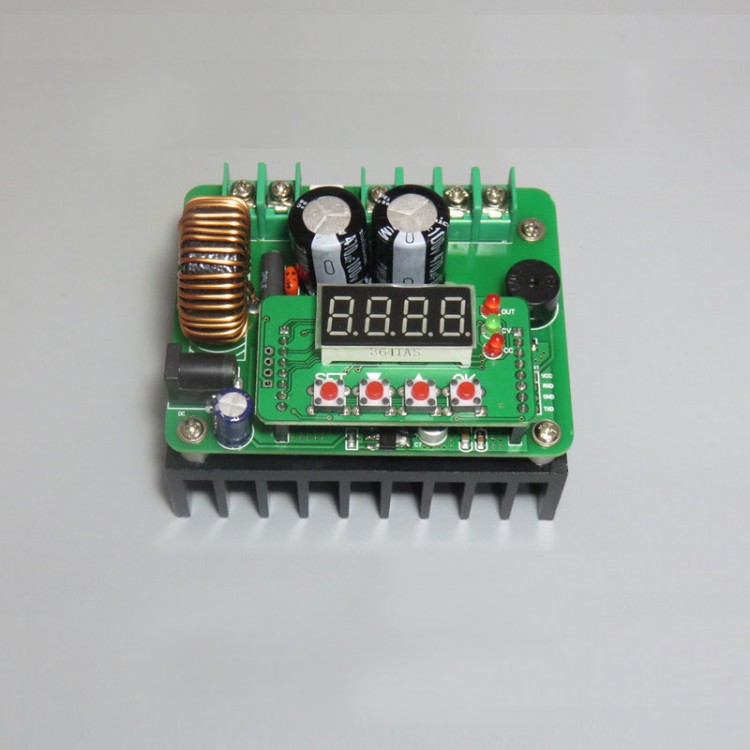

12V/24V/48/60V Battery Capacity Discharge Meter Tester Module Board PWM Constant Current Discharging

Availability: In stock, usually dispatched in 1 business day

  • Price:$19.55
  • Price in reward points: 196 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $19.16 $18.77 $18.18 $17.40 Contact US
Quantity:

12V/24V/48/60V Battery Capacity Discharge Meter Tester Module Board PWM Constant Current Discharging

Features:

- 0-60V Battery Voltage Testing Range: 12V/ 24V/ 48V/ 60V battery testing discharging module board
- Adopted Advanced Microprocessor: using the buttons to adjust the discharge cutoff voltage & discharge current accurately
- 4-digit High Brightness LED Display: makes it convenient to monitor the voltage, current, capacity and time in real-time
- PWM Constant Current Mode for Discharging: accurately test the capacity and it will have repair effect on battery
- Sound Reminder & Discharge Finishing Alarm: it will touch buzzer alarm when the voltage reaches the setting discharge cutoff voltage

Specifications:

- Voltage Testing Range: 0-60V
- Output Voltage Setting Resolution: 10mV
- Output Current Setting Resolution: 10mA
- Voltage, Current Display Accuracy: 10mV, 10mA
- Voltage Display Deviation: ±1%+20mV
- Current Display Deviation: ±2%+20mA
- Capacity Testing Range: 0.00AH-999AH
- Storage Operation: M0-M9, can storage total 10 groups of parameters
- Heat Dissipation: On-board heatsink, pay attention to ventilation
- Temperature of Operating Environment: 0-40℃
- Temperature of Storage Environment: -20 to 70℃
- Using environment: Indoor, 80% maximum humidity
- Size: 85 x 68 x 62mm (L*W*H)

Note:

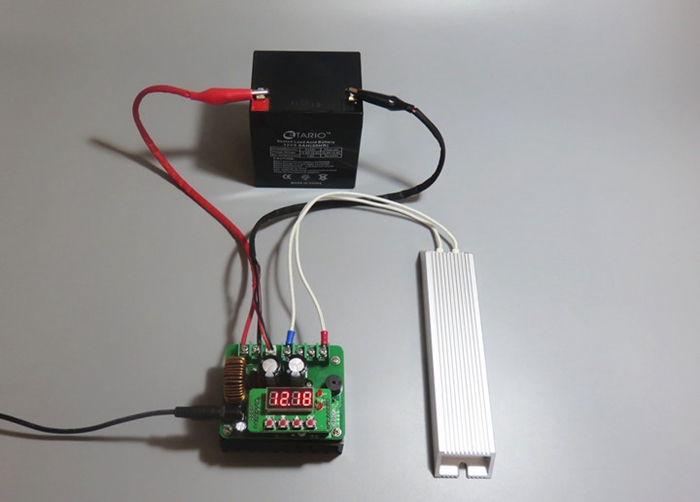

This battery capacity tester should be used with resistor(not includes in the package)

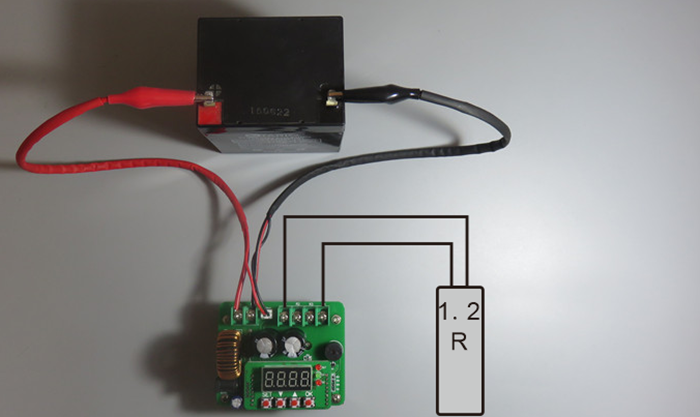

12V Battery Discharge: 1x 1.2Ω 120W resistor;

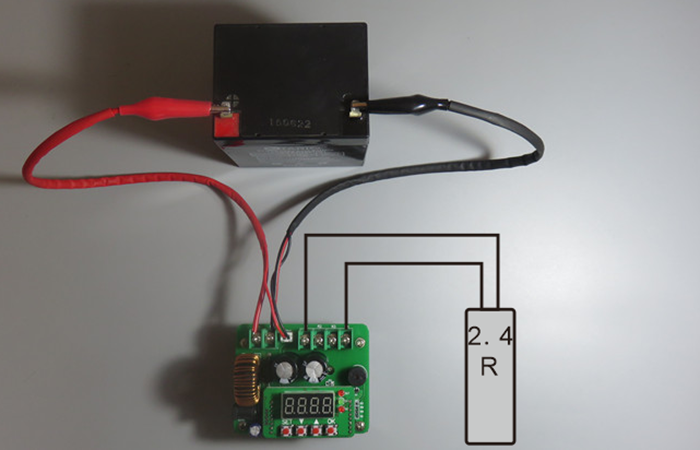

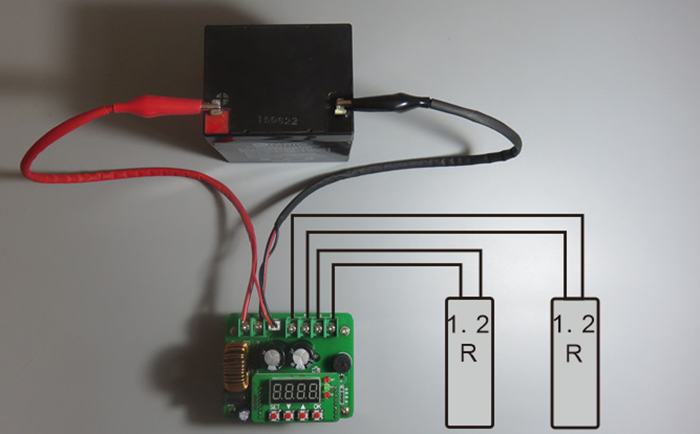

24V Battery Discharge: 1x 2.4Ω 240W/2x 1.2Ω 120W resistor;

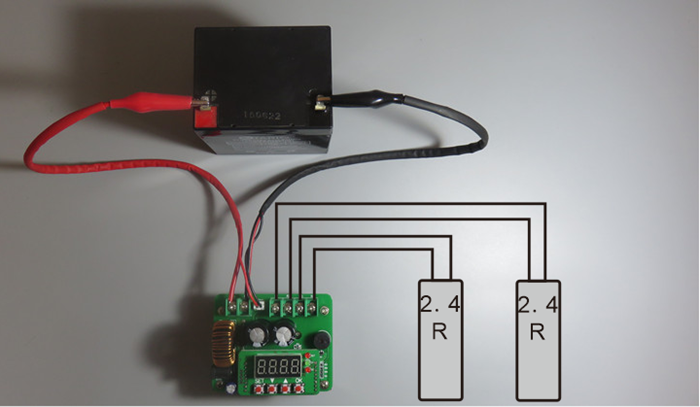

48V Battery Discharge: 2x 2.4Ω 240W resistor;
60V Battery Discharge: 1x 8Ω 450W resistor.

Package Included:
- 1 x Discharge Module Board
- 1 x 12V 1A Power Adapter
- 1 x Clip Line
