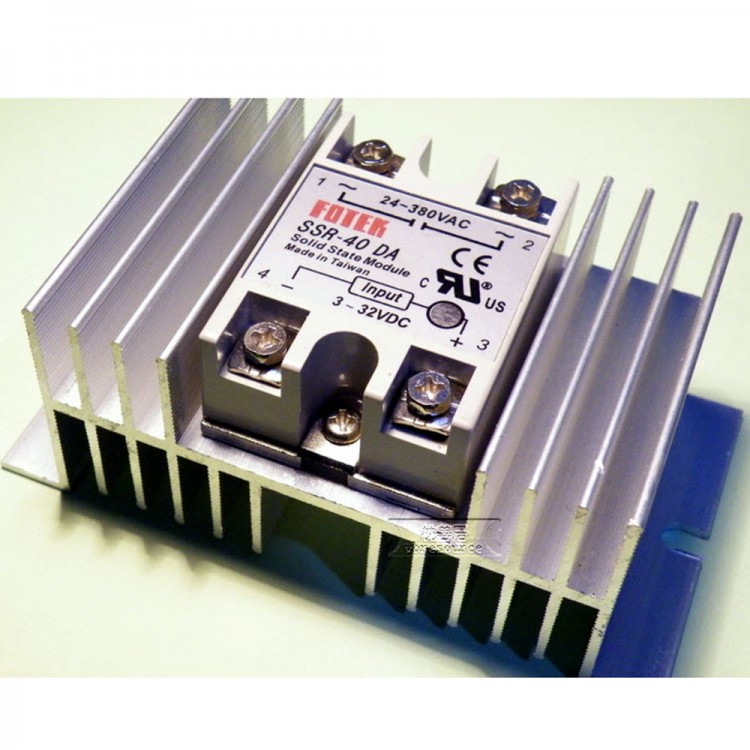

24V-380VAC Single Phase Solid State Relay DC To AC SSR-40 40A Module with Radiator
Specification:
- Control mode: DC controls AC (DC-AC)
- Load current: 40A
- Load voltage: 24-380VAC, H:90-480VAC
- Control voltage 3-32VDC
- Control current DC:3-25mA
- State leakage current is less than 2mA
- On state voltage :<= 1.5VAC
- Off time: <= 10mS
- Dielectric withstand voltage: 2500VAC
- Insulation resistance: 500M /500VDC
- Ambient temperature: -30 to +75 C
- Mounting method: bolt fixing
- Work instructions: LED
- Weight :132g
Features:
- Bidirectional thyristor output, zero voltage turn-on, zero current turn off;
- Optical isolation between input circuit and the output circuit ;
- Betweenhe input end and output ,the isolation voltage 2500V;
Package List:
- 1 x Single Phase Solid State Relay
