Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $44.39 | $43.49 | $42.13 | $40.32 | Contact US |
280MHz - 10GHz RF UWB Antenna Linearly Polarized Directional Antenna 50ohms Coplanar Antenna with SMA Female Connector
Specification:
- Working frequency: 280MHz - 10GHz
- Antenna type: linearly polarized directional antenna
- Characteristics impedance: 50ohms
- Gain: 4 - 11dBi

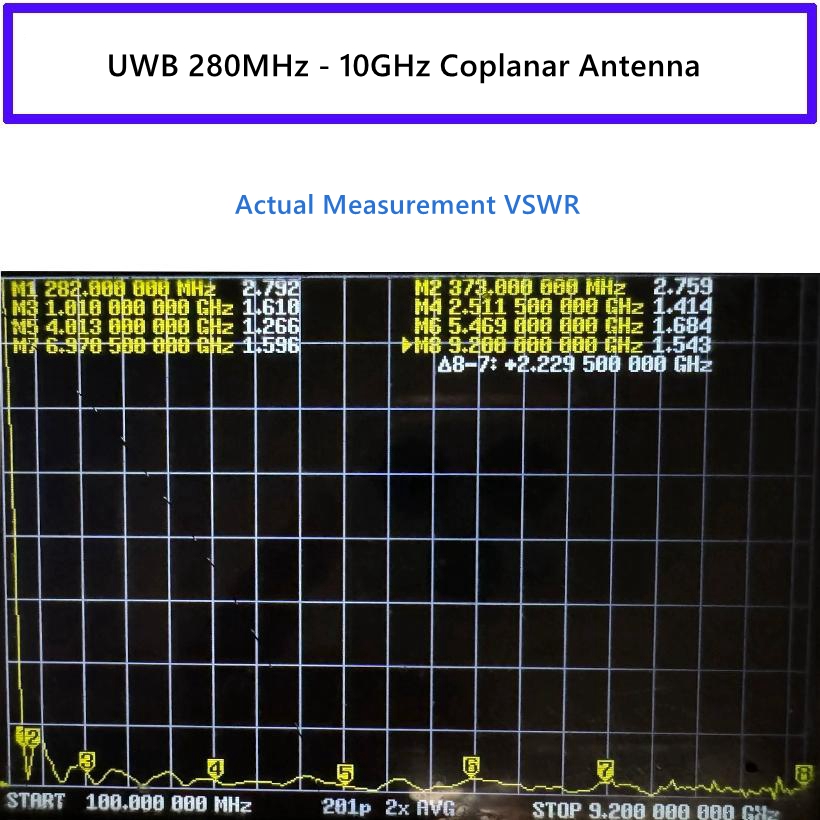

- SWR: < 1.5 Typ.

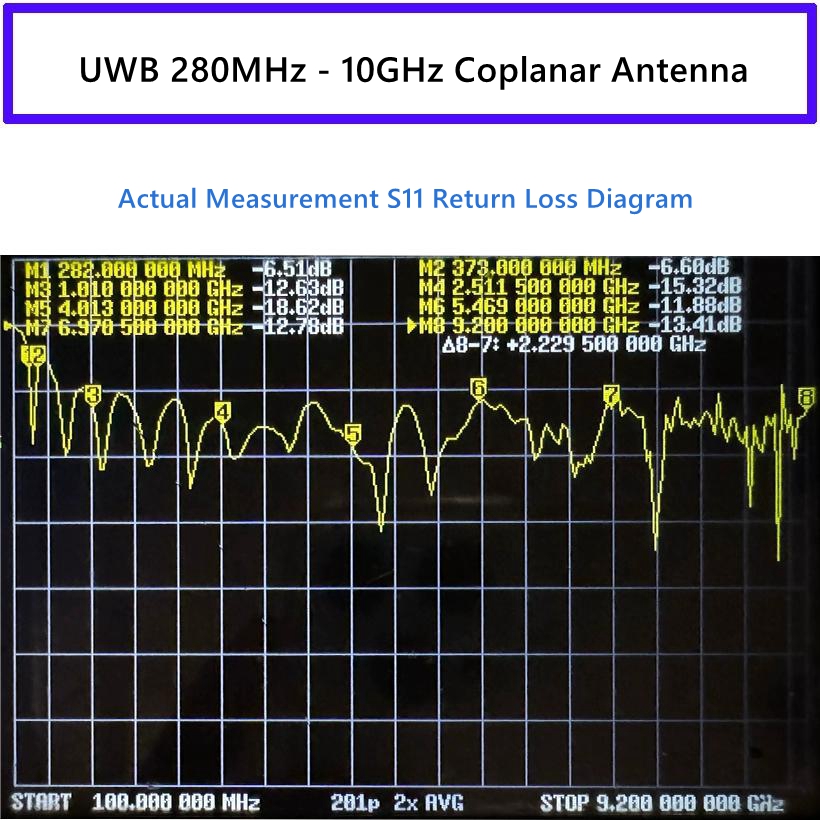

- Return loss S11: < -10dB Typ.
- Withstand maximum power: 10W
- Radiation angle: 120°< H < 75°; 93°< E < 47° (at -3dB)
- Connector type: SMA female connector
- Material: FR4

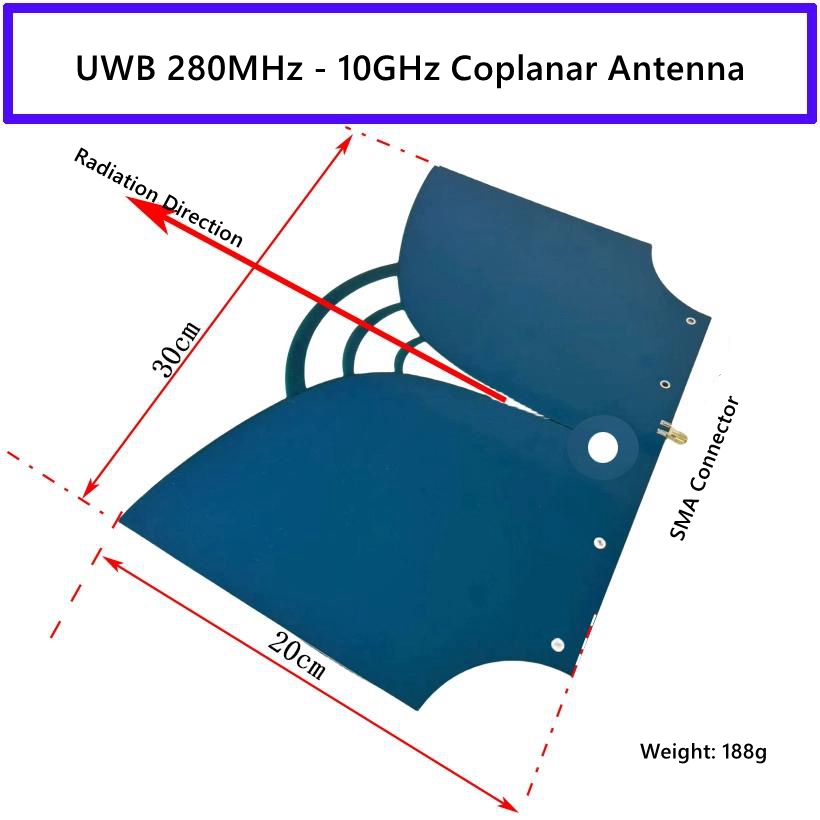

- Size: 20 x 30 x 1.6cm
- Net weight: 188g
Package Included:
- 1 x UWB Antenna
