3.5'' HDD SATA Expansion Board for Raspberry Pi 1 Model B+/ 2 Model B / 3 Model B / 3 Model B+ X830

3.5'' HDD SATA Expansion Board for Raspberry Pi 1 Model B+/ 2 Model B / 3 Model B / 3 Model B+ X830

Features:
- For Use with Raspberry Pi 1 Model B+/ 2 Model B / 3 Model B / 3 Model B+
- Operating System: for all Raspberry Pi operating systems
- Support up to 10TB 3.5-inch SATA interface mechanical hard disk HDD
- Perfect support for Raspberry Pi motherboard, no need to drive, ready to use
- Bridge controller with super speed USB 3.0 to SATA for 6.0Gb/s
- USB3.0 ultra-high speed connection PC or MAC for data transmission
- Support USB2.0 high speed connection with Raspberry Pi for data transmission
- Support wide voltage input 14~40Vdc, stable power supply for Raspberry Pi board through 40-pin pin header
- Onboard XH2.54 power output connector provides 12V and 5V power to other devices
- Ideal storage expansion solution for Raspberry Pi
- Easy to assemble by yourself
- Power supply: 14~40Vdc ±5%, more than 2.5A

Package Included:
- 1 x X830 HDD Expansion Board
- 1 x USB Data Cable
- 1 x USB Connector Board
- 1 x XH2.54 3P->2P Power Connection Wire 10cm
- 4 x M2.5*12mm Copper Pillars
- 8 x M2.5*6mm Screws
- 4 x M3*30mm Copper Pillars
- 8 x M3*8mm Screws

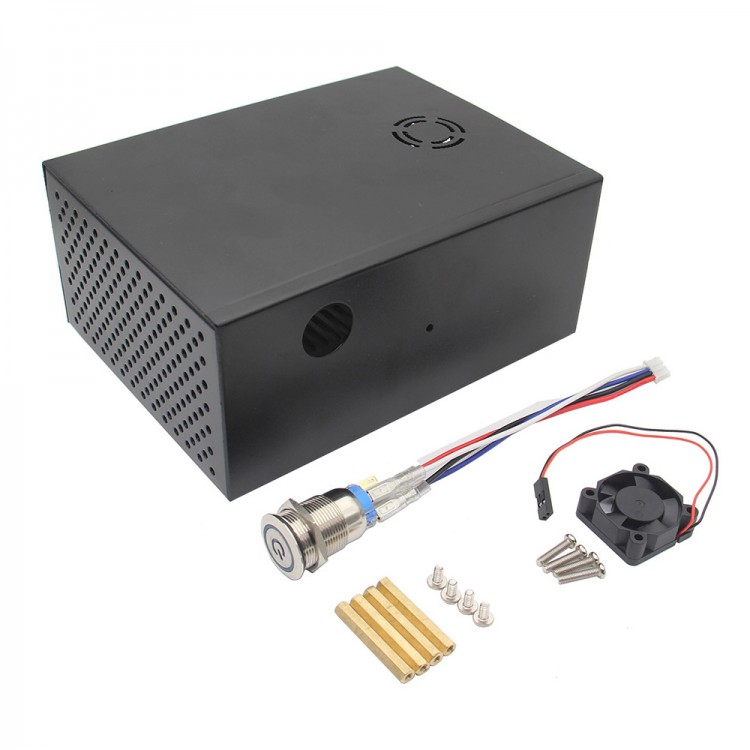

Note: Main board for Raspberry Pi in the pictures is not included. If the housing for the expansion board is needed, please contact us.
