X830 V2.0 3.5" HDD SATA Expansion Board for Raspberry Pi 1 Model B+/2 Model B/3 Model B/3 Model B+

Availability: Out Of Stock

  • Price:$36.35
  • Price in reward points: 364 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $35.62 $34.90 $33.81 $32.35 Contact US
Quantity:

X830 V2.0 3.5" HDD SATA Expansion Board for Raspberry Pi 1 Model B+/2 Model B/3 Model B/3 Model B+

Features:

- For use with Raspberry Pi 1 Model B+/ 2 Model B / 3 Model B / 3 Model B+
- Operating System: For all Raspberry Pi operating systems. Safe shutdown function tested for Raspbian, other operating systems to be tested and advised
- Supports up to 14TB 3.5-inch SATA hard disk drives (HDD)
- Supports USB booting from your HDD
- Supports safe shutdown and full poweroff
- On-board power switch convenient to control power on/off
- On-board connector allowing to connect external power switch and DIY your perfect case
- On-board power output connectors providing 12V and 5V to power other devices
- Powers the Raspberry Pi via Pi's 40-pin header - only one 12V power adapter required
- USB 3.1 Gen1 to SATA 6Gb/s bridge controller
- USB 2.0 connectivity offers plug-and-play functionality on your Raspberry Pi
- Quick file transfer with high-speed USB 3.0 connectivity from a PC or a Mac
- LED red indicator indicates powered status and blue indicator indicates drive status
- Ideal storage solution for Raspberry Pi
- For easy DIY with Raspberry Pi

Specifications:
- Power Supply Requirement: 12Vdc +/-5% , >3A
- Ports & Connectors:
  DC Jack: 5.5x2.5mm,
  USB Socket: USB 3.0 type A,
  Power Output Connector: XH2.54 2-pin
  Power Switch Connector: PH2.0 4-pin
- PCB Size 155.8mm x 118mm

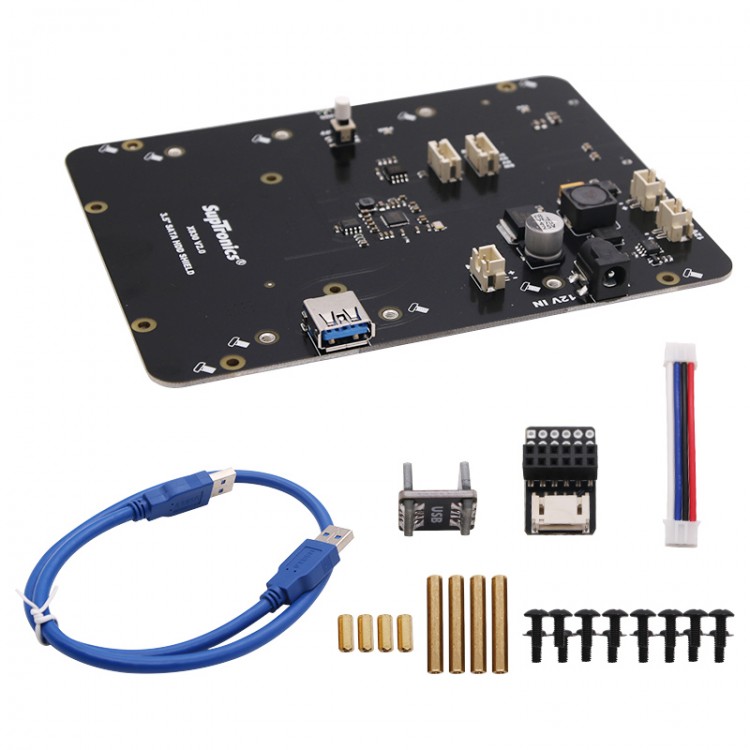

Package Included:
- 1 x HDD Expansion Board X830 V2.0
- 1 x USB Jumper Board
- 1 x GPIO Connection Board
- 1 x USB 3.0 A-Male to A-Male Data Cable
- 1 x 4-Pin GPIO Connection Wire
- 4 x Spacers M2.5 x 12mm
- 8 x Screws M2.5 x 6mm
- 8 x Screws M3 x 8mm
- 4 x Spacers M3 x 32mm

Note:
- For use with original power supply unit only.
- Main board for Raspberry Pi is not included in this package. If the housing for the expansion board is needed, please contact us.
- Please not power your Raspberry Pi via the Pi’s micro-USB socket.
