3 Phase Stepper Motor 57 Nema23 Servo Closed Loop + Motor Driver Kit 3N.m Motor CNC

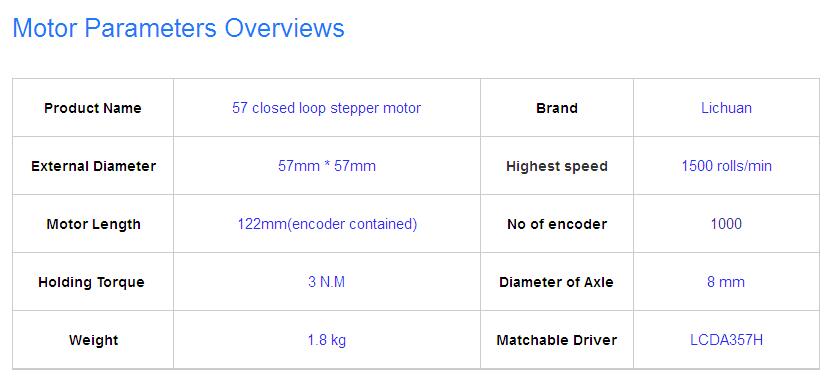

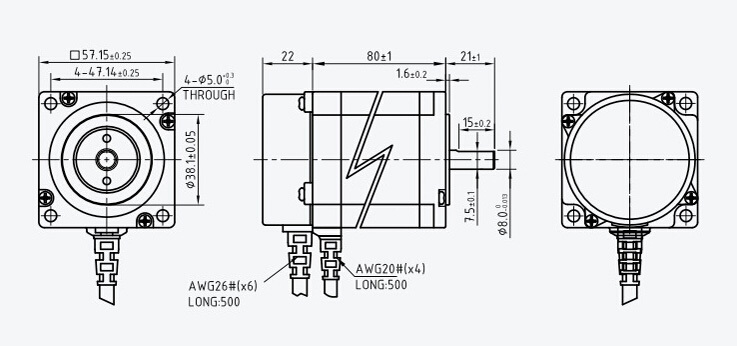

Stepper Motor:

Motor Driver:

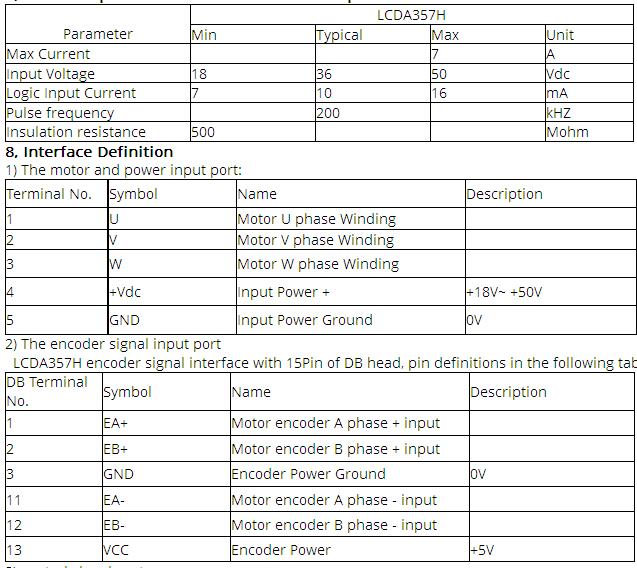

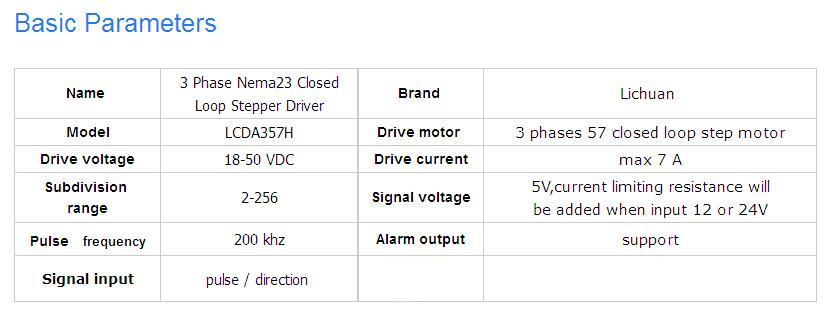

- Motor Driver Features:
- Input voltage range: 18-50 VDC
- Maximum peak current: 7A
- Subdivision range: 200-51200ppr
- Signal Input: Differential/Single-Ended, pulse/direction
- Impulse response frequency: 200KHz
- The electrical parameters of automatic tuning function
- Closed-loop vector control to ensure the motor speed high torque output, while ensuring that the motor does not lose steps
- Overvoltage, overcurrent, tracking error over poor protection

Package list:

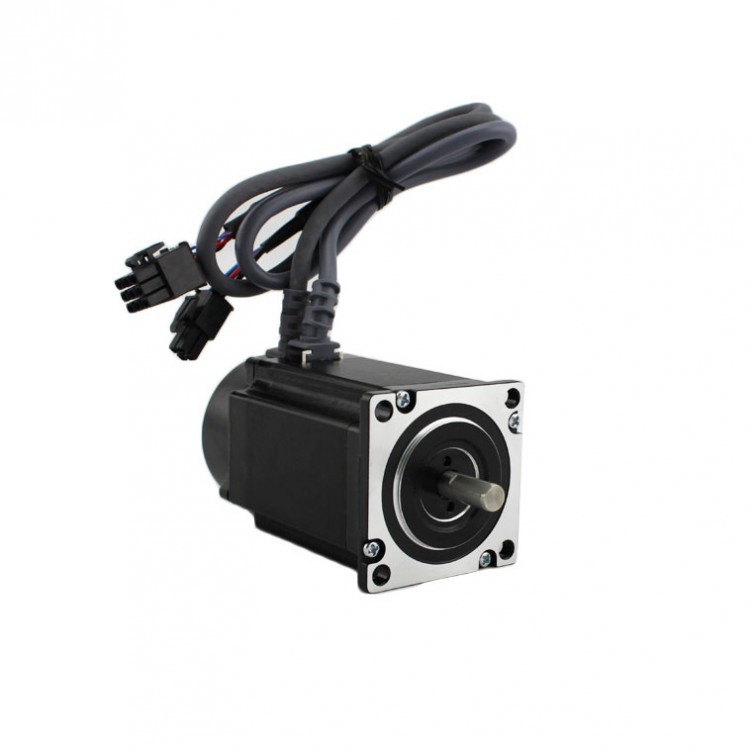

- 1 x3 phase NEMA23 Closed-loop stepper motor LC57H3100

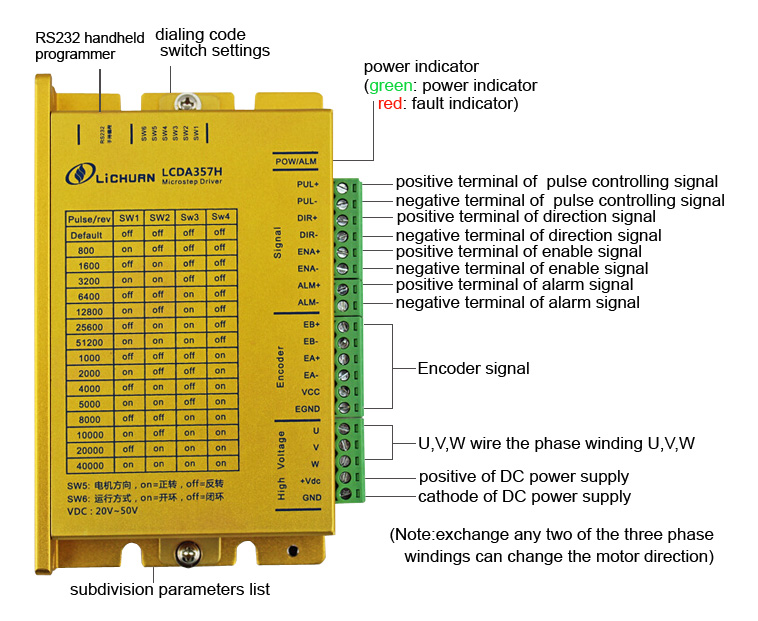

- 1 x3 phase closed loop stepper motor driver LCDA357H
