STM32 Closed Loop 57 Stepper Motor Driver 8D Shaft Kit For 3D Printing Servo Stepping Mechaduino

Availability: In stock, usually dispatched in 1 business day

  • Price:$61.15
  • Price in reward points: 612 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $59.93 $58.70 $56.87 $54.42 Contact US
Quantity:

STM32 Closed Loop 57 Stepper Motor Driver 8D Shaft Kit For 3D Printing Servo Stepping Mechaduino

Product Parameters:

- VCC: 12-30V (reference motor working voltage 24V)
- GND: power ground
- CLK: pulse input
- DIR: direction control (ground, reverse rotation)
- ENA: enable signal
- COM: Connect to 3.3V, common anode
- P2: one phase on each side of motor cable

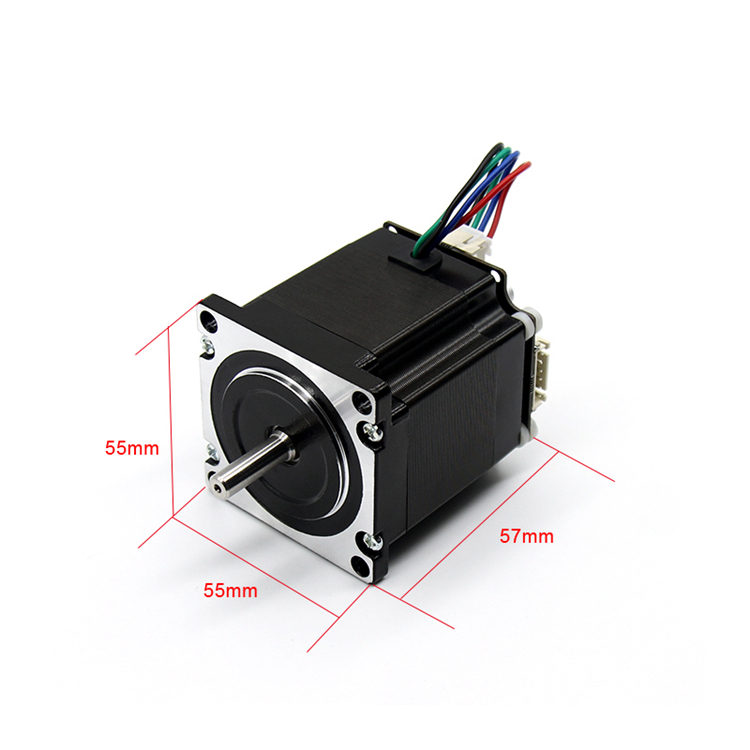

Applicable Motor Parameters:
- Product name: 57 two-phase stepper motor
- Maximum speed: 1000 rpm (recommended load within 600 rpm)
- Step angle: 1.8°
- Static moment: 1.2N.m
- Driving voltage: 24V
- Motor length: 56mm
- Rated current: 3A
- Phase position: 2.5mH
- Rotor inertia: 300g.cm²
- Phase resistance: 0.9Ω
- Control method: pulse control
- Shaft length: 22mm

Application Scenario:
1. Fine closed-loop 3D printing
2. Optical precision aiming (laser, telescope, camera gimbal, etc.)
3. Speed cycle record player
4. Force feedback/impedance control robot
5. Force feedback of game controller
6. Adjustable mechanical impedance: virtual spring, damper, etc.
7. Electric transmission device between two axes such as CNC machine tool
8. Gravity elimination (for example: offset gravity torque on the robot arm, etc.)
9. Load detection and characterization (used as a balance)
10. Paper towel/TP dispenser
11. Variable load (brake, generator, etc.)
12. Valve control (automatic garden hose, etc.)

Package Included:
- 1 x Motor Driver Board Kit

Note: The product is installed and tested by professionals, and you can use it normally when you receive goods.
