380kg.cm High Torque Servo Steel Gear DC 12V-24V with Potentiometer For Robot Mechanical Arm

Availability: In stock, usually dispatched in 1 business day

  • Price:$53.67
  • Price in reward points: 537 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $52.60 $51.52 $49.91 $47.77 Contact US
Quantity:

380kg.cm High Torque Servo Steel Gear DC 12V-24V with Potentiometer For Robot Mechanical Arm

Functions:

- Comes with a potentiometer
- Supports potentiometer & remote control
- Adjustable current and angle
- CW and CCW switching, AD & PWM switching, pulse width 1-2ms & 0.5-2.5ms
- Stable performance and smooth operation with powerful anti-interference ability
- Perfect for Futaba, JR, SANWA, Hitec and other remote control systems

Parameters:
- Working Voltage: DC12-24V
- No-Load Current: <500mA
- Maximum Torque(Actual Measurement): 380kg.cm(24V) ;1764N.cm(24V); 90kg.cm(12V); 882N.cm(12V)
- Angular Speed: 0.6S/60° at 24V; 0.6S/60° at 12V
- Rotation Angle: 300° MAX. (Adjustable)
- Input Modes:
  PWMIN is PWM pulse signal (For remote controllers, multi-way servo controllers & MCU);
  ADIN is analog voltage signal(potentiometer).
- Pulse Signal Input Range: 0.5ms-2.5ms for multi-channel controller, for 1ms-2ms RC controller, MCU programming, Arduino and the like
- Voltage Signal Input Range: 0 to +5V
- Control Accuracy: 0.5°
- Weight: 530g
- Gear Material: Steel

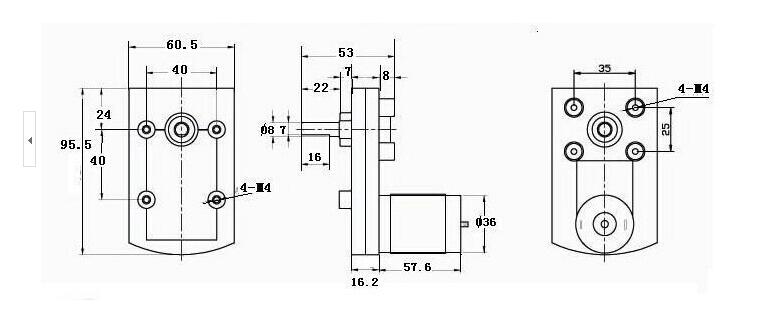

- Size: 95.5 x 60.5 x 102.6mm

Application:

- For medium to large robots, mechanical arms and other fields requiring high power and high torque control.
- Power Supply Input: DC12-24V.
- Motor Output: OUT1 to motor -; OUT2 to motor +.
- Mode Selection: Select pulse signal input or analog voltage signal input by jumper cap. PWMIN is for pulse signal input. ADIN is for analog voltage signal input.
- Analog Control Mode: Angle input signal is analog. A potentiometer is used to control the angular position of motor's axle.
- Digital Control Mode: Angle input signal is digital square wave signal with pulse width 0.5ms-2.5ms or 1ms-2ms.

Package Included:

- 1 x Servo
- 1 x Signal Cable
- 1 x Potentiometer
- 1 x Bracket
- 1 x Servo Horn
- 1 x Servo Extension Cable
