|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$87.70||$85.91||$83.23||$79.65||Contact US|

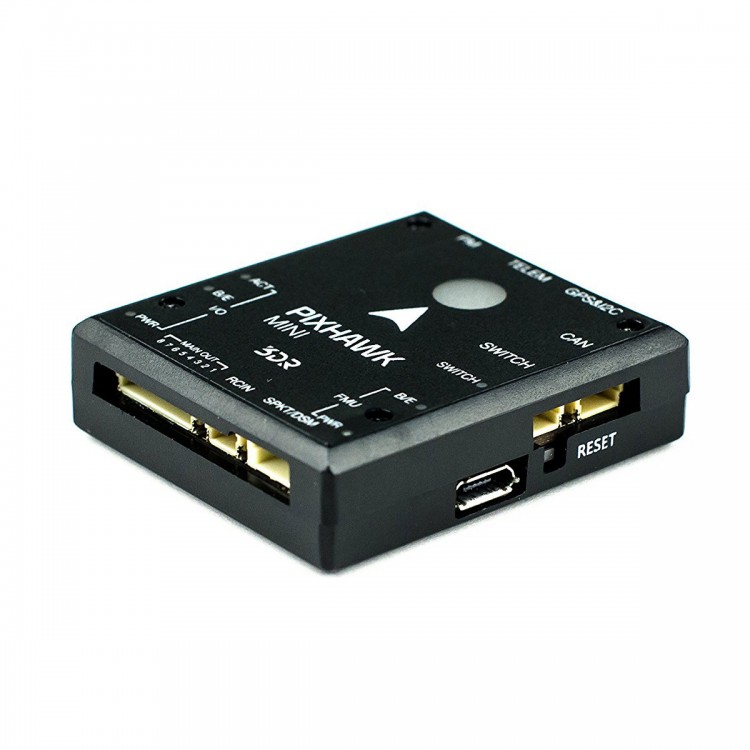

3DR Pixhawk Mini Flight Controller Multi-rotor Drone VTOL Flight Control 32 Bit ARM Rev 3 Processor
Improvements over the original Pixhawk:
-Smaller, a third of the size.
-Rev 3 processor for long term software support.
-Improved sensors, both primary and secondary IMU MPU9250 and ICM20608 for more reliable flight.
-Micro JST rather than the hard-to-use DF13 connectors.
-Integrated piezo speaker and safety switch.
-Natively supports 4S batteries with the included PDB.
-Advanced 32 bit ARM Cortex® M4 Processor running NuttX RTOS
-8 PWM/servo outputs
-Abundant connectivity options for additional peripherals (UART, I2C, CAN)
-Redundant power supply inputs and automatic failover
-Integrated safety switch and optional external safety button for easy motor activation
-Multicolor LED indicator
-Integrated multi-tone piezo audio indicator
-Micro SD card for long-time high-rate logging
-1 x 3DR Pixhawk4 Mini
-1 x Accessories Kit
