3DR Pixhawk Mini Flight Controller Multi-rotor Drone VTOL Flight Control w/ PM06 Power Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$96.41
  • Price in reward points: 964 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $94.48 $92.55 $89.66 $85.80 Contact US
Quantity:

3DR Pixhawk Mini Flight Controller Multi-rotor Drone VTOL Flight Control w/ PM06 Power Board

Improvements over the original Pixhawk:

-Smaller, a third of the size.
-Rev 3 processor for long term software support.
-Improved sensors, both primary and secondary IMU MPU9250 and ICM20608 for more reliable flight.
-Micro JST rather than the hard-to-use DF13 connectors.
-Integrated piezo speaker and safety switch.
-Natively supports 4S batteries with the included PDB.

Features:
-Advanced 32 bit ARM Cortex® M4 Processor running NuttX RTOS
-8 PWM/servo outputs
-Abundant connectivity options for additional peripherals (UART, I2C, CAN)
-Redundant power supply inputs and automatic failover
-Integrated safety switch and optional external safety button for easy motor activation
-Multicolor LED indicator
-Integrated multi-tone piezo audio indicator
-Micro SD card for long-time high-rate logging

Power Board:
PCB Current: 120A continued
UBEC Current: 3A Max
Power input: DC 7V~42V(2S~10S)
Power output: DC 5.1V~5.3V
Dimensions: 35x35x5mm
Mounting hole: 30.5mm*30.5mm
Weight: 7g

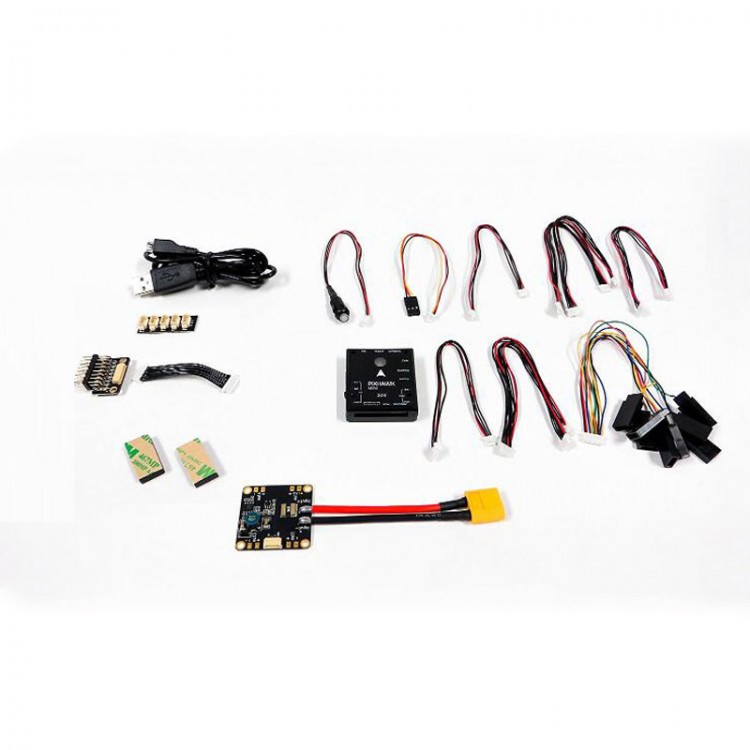

Package List:
-1 x 3DR Pixhawk4 Mini
-1 x PM06 Power Board
-1 x Accessories Kit
