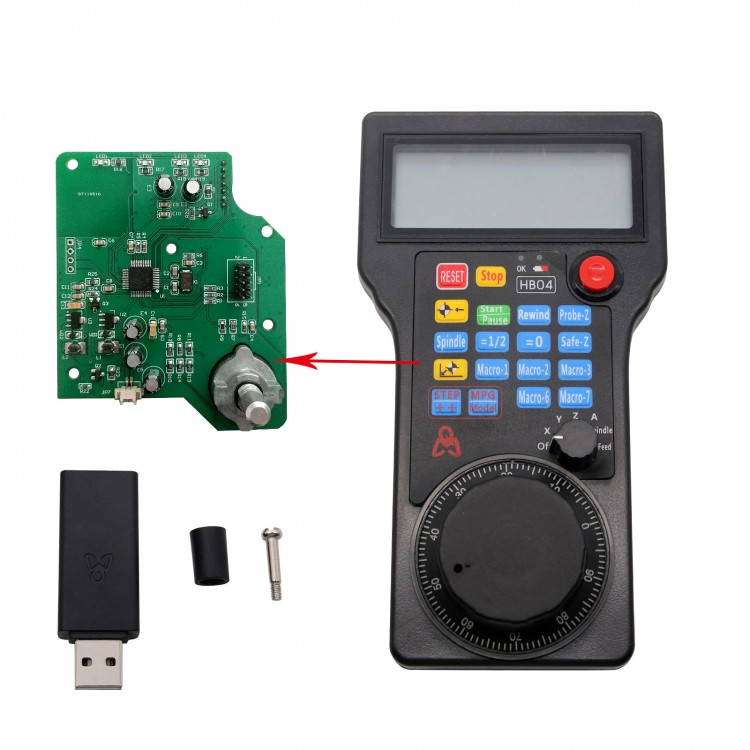

4 Axis Wireless CNC Handwheel MPG USB Open-Source DIY STM32F10x For CNC 4 Axis Milling Machine
Features:
- STM32F10x controller with hardware USB 2.0 FS, open-source hardware PCB board
- Rotary encoder (quadrature output)
- Rotary switch (7 position)
- Switch button
- Emulate L(W)HB04 and L(W)HB03 MPG
- Supports official plugins for Mach 3
- Can be used for building firmware with IAR ARM, Keil 5.x, CooCox 2.x, GCC
- Wireless operation to bring you convenience and practicality of the operation.
- 15 meter wireless transmission distance,stable and reliable data transmission.
- It max support 4 axis. the 4th axis- A axis, no A=0 function (A axis functions are not as much as the other 3 axis)
- All the buttons can be programmable.
- About the hand wheel, you move slow, the machine runs slow; also you move fast, the machine runs fast.
Rich Real-time Display of Large LCD Screen:
- Display machine status, run, pause, idle, step value
- Display X Y Z axis workplace coordinate and x y z axis machine coordinate
- Show the feed rate spindle speed
Handwheel Introduction:
- Switch band to x,will jog x.the lcd MC will show machine coordinate. The WC will show work offset coordinate.
- Switch band to y, will jog y, the lcd MC will show machine coordinate. The WC will show work offset coordinate.
- Switch band to z, will jog z, the lcd MC will show machine coordinate. The WC will show work offset coordinate.
- Switch band to a, will jog a, the lcd MC will show machine coordinate. The WC will show work offset coordinate.
- Switch band to spindle, will adjust spindle speed the lcd S: will show current spindle speed and the percent number of maximum spindle speed.
- Switch band to feed, will adjust feed speed. the lcd will show current feed speed and the percent number of maximum feed speed.
Band Switch for Easy Operation:
- Switching X-axis coordinate regulation
- Switching Y-axis coordinate regulation
- Switching Z-axis coordinate regulation
- Switch hand wheel guide
- Feed adjustment switch
- Speed control switch
Package Included:
- 1 x CNC Handwheel
- 1 x Wireless USB Receiver
- Other Accessories
Note: We can provide open source code, schematic diagrams and other development materials, and customers can DIY other flexible matching software.
