4K 60Hz HDMI Matrix Switch HDMI 4x2 KVM Matrix Supports Keyboard Mouse Speakers Headphones PC
Description:
The HDMI 4x2 KVM matrix can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. Two sets of mouse and keyboard can control devices on 4 PC ports at will;The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output ports can realize independent audio output by optical fiber or stereo headphone.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
- Support HDMI resolution up to 3840*2160/60Hz
- Support 3D video format
- Support 3 switching modes: IR remote control,button,keyboard hotkeys
- Support 4K (input) resolution turn to 2K (output) (Down scaler)
- Support 2 HDMI audio extraction, 3.5mm earphone jack and optical fiber interface output at same time
- 4 HDMI inputs switch and split to 2 HDMI displays
- For LPCM/Dolby/DTS 5.1 channel
Specifications:
- HDMI resolution: up to 3840*2160/60Hz
- Support video format: 8/10/12 bit deep color
- Support audio format: for LPCM/DTS/Dolby-AC3
- Max bandwidth: 600MHz
- Max baud rate: 3x6Gbps
- Input cable distance: 4K/30Hz ≤15M AWG26 HDMI standard cable; 4K/60Hz ≤5M HDMI 2.0 standard cable
- Output cable distance: 4K/30Hz ≤15M AWG26 HDMI standard cable; 4K/60Hz ≤5M HDMI 2.0 standard cable
- Cable length: Standard USB 2.0 A male to B male cable ≤ 2m
- HDMI Input: 4
- HDMI Output: 2
- Max working current: 800mA
- Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1.5A
- Operating temperature range: -15 to +45℃
- Operating humidity range: 5 to 90%RH (No Condensation)
- Dimensions (LxWxH): 256 x 153 x 33mm/10.1 x 6 x 1.3"
- Weight: 1208G/2.7LB

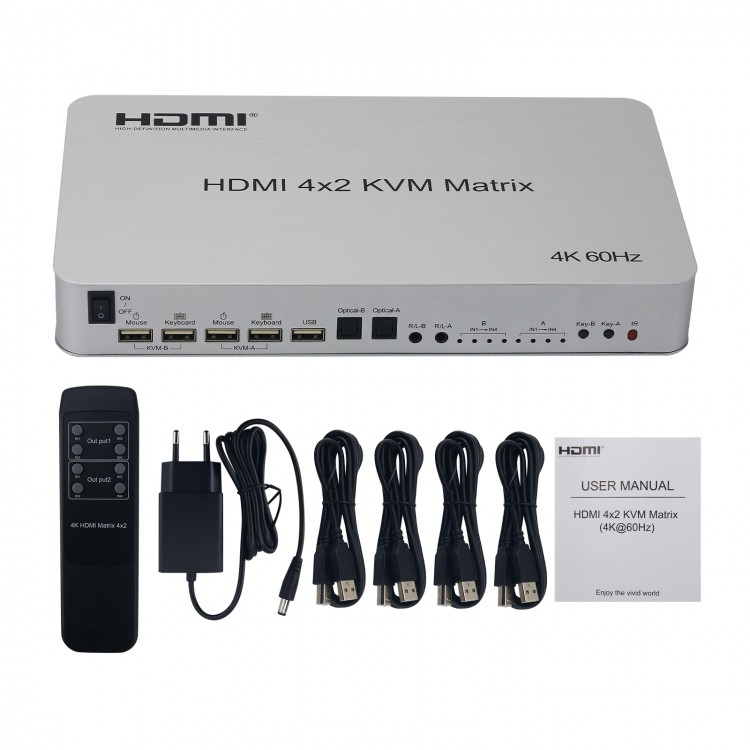

Package Included:
- 1 x HDMI Matrix 4x2
- 1 x IR Remote Control
- 1 x 5V Power Adapter
- 4 x USB 2.0 A Male to B Male Cable
- 1 x User Manual
