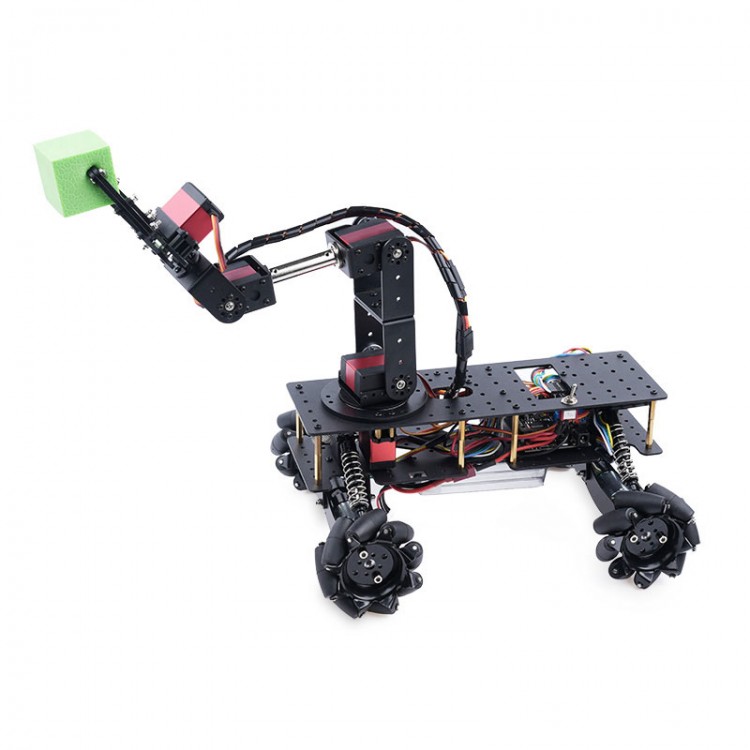

4WD Mecanum Wheel Car Shock-Absorbing Smart Car Chassis Platform (Chassis + 4DOF Robotic Arm)
Description:

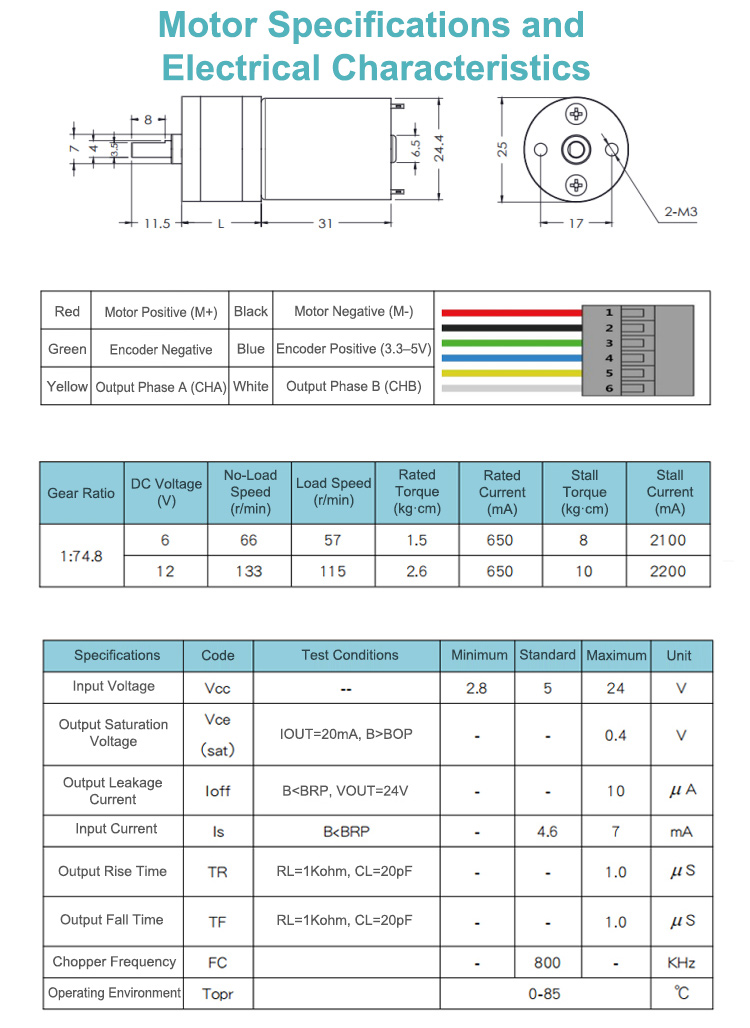

The 4WD Shock-Absorbing Smart Car uses metal, high-wear-resistant Mecanum wheels as driving wheels, ensuring long-term durability and smooth rotation thanks to internal bearings in the rollers. It is driven by GA25-370 motors with encoders, enabling real-time feedback on operating status for better control of the car's movement trajectory. A 1:74.8 gear ratio provides sufficient torque output to power the car. If gripping functionality is needed, a 4-axis serial robotic arm can be added. Controlled through inverse kinematics, the 25kg high-torque servo performs gripping operations by simply inputting object coordinates.
Features:

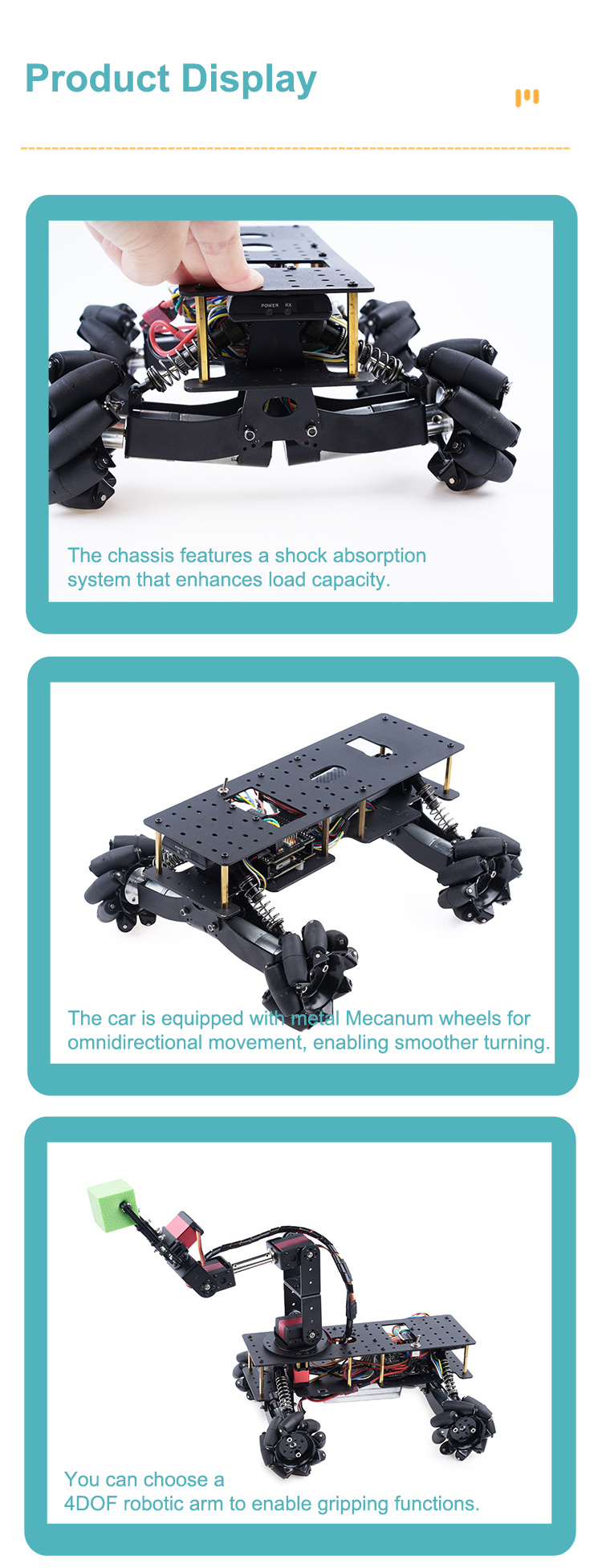

* The chassis features a shock absorption system that enhances load capacity
* The car is equipped with metal Mecanum wheels for omnidirectional movement, enabling smoother turning
Package Includes:

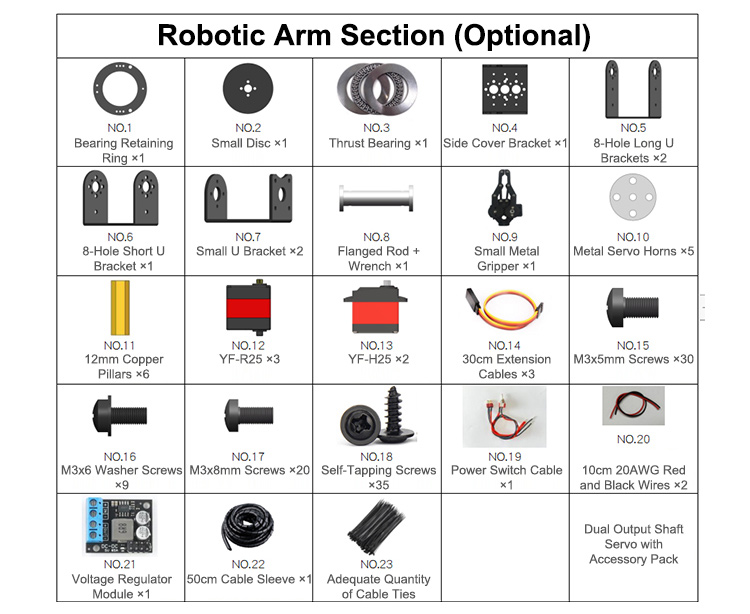

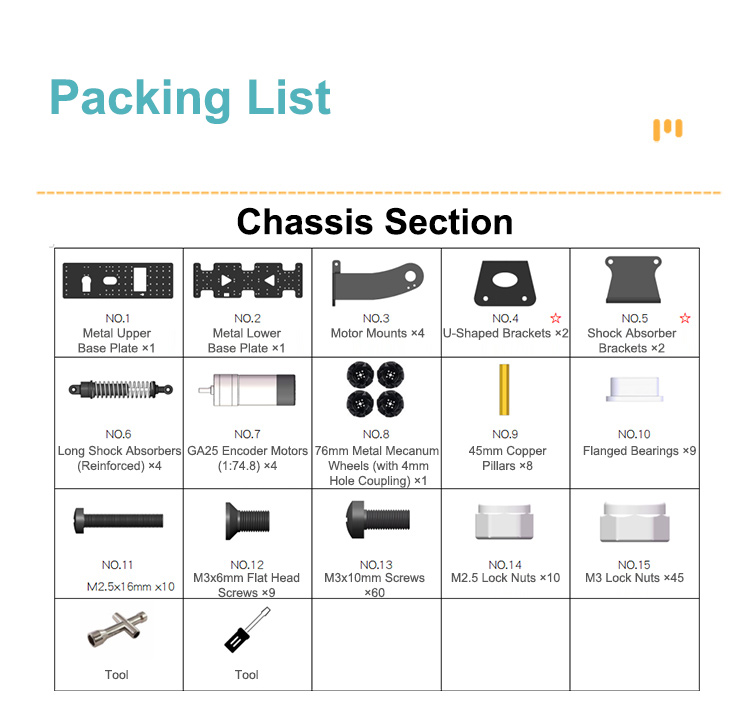

* 1 × Set of Chassis + 4DOF Robotic Arm (See picture below for details)
Packaging Details:
* Weight: 2.6kg
Note:
* Robotic arm and wireless controller are optional accessories. Corresponding versions are available for purchase in our store.
