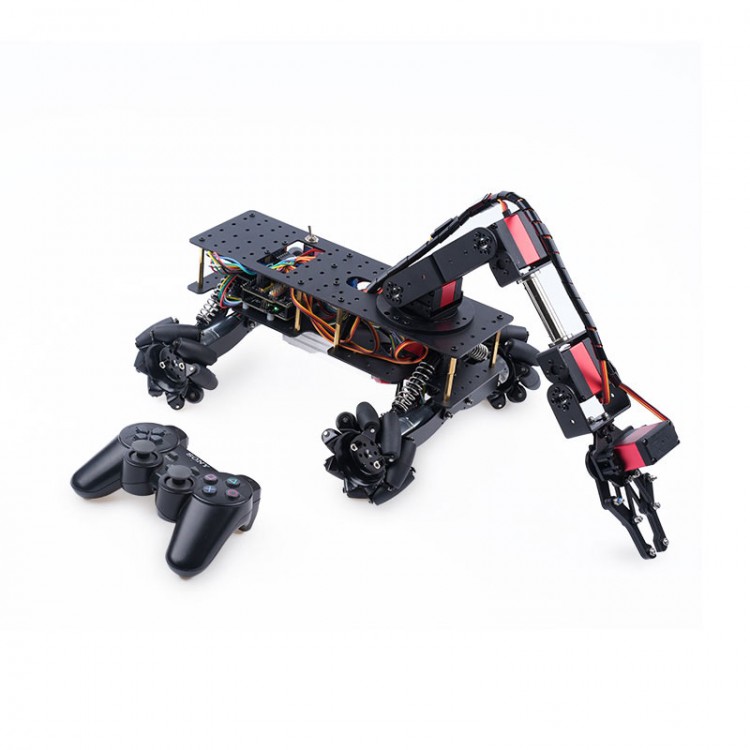

4WD Mecanum Wheel Car Smart Car Chassis (Chassis + Wireless Controller for PS2 + 4DOF Robotic Arm)

4WD Mecanum Wheel Car Smart Car Chassis (Chassis + Wireless Controller for PS2 + 4DOF Robotic Arm)

Description:

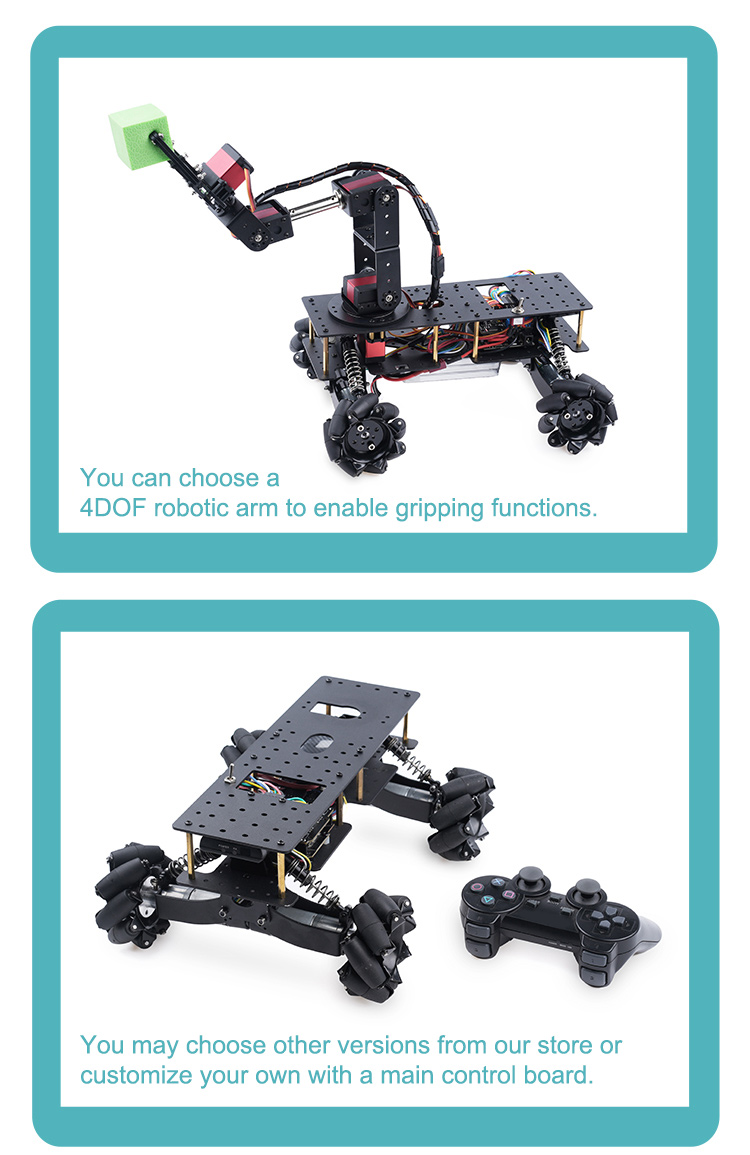

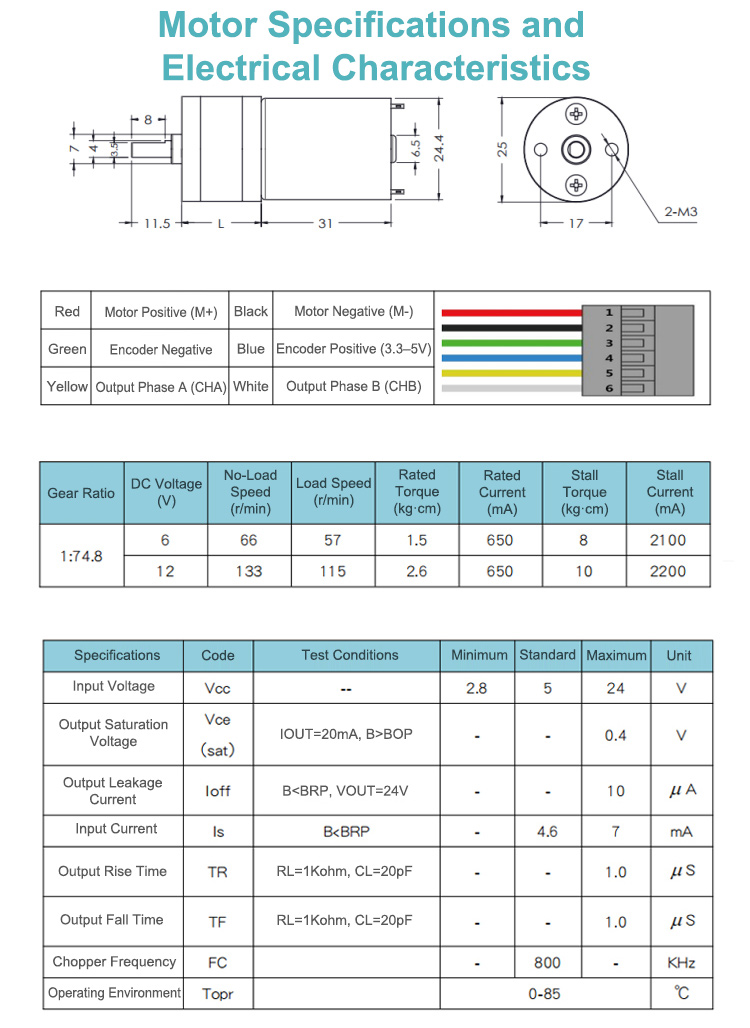

The 4WD Shock-Absorbing Smart Car uses metal, high-wear-resistant Mecanum wheels as driving wheels, ensuring long-term durability and smooth rotation thanks to internal bearings in the rollers. It is driven by GA25-370 motors with encoders, enabling real-time feedback on operating status for better control of the car's movement trajectory. A 1:74.8 gear ratio provides sufficient torque output to power the car. If gripping functionality is needed, a 4-axis serial robotic arm can be added. Controlled through inverse kinematics, the 25kg high-torque servo performs gripping operations by simply inputting object coordinates.

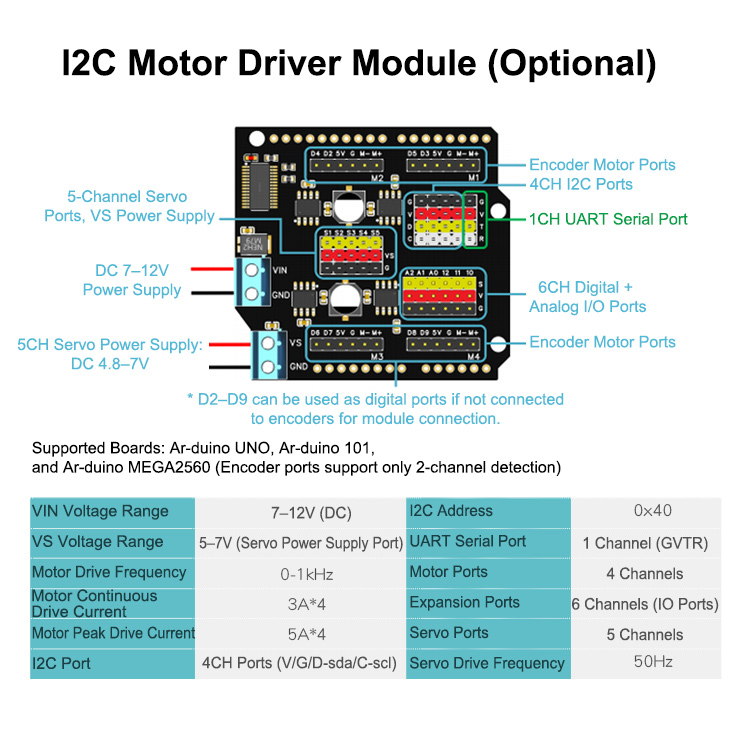

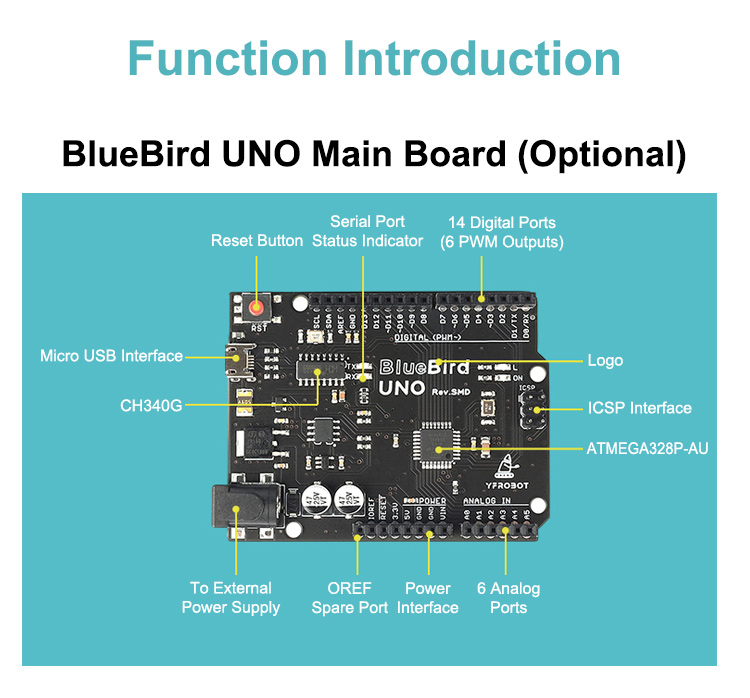

It uses an I2C 4-channel motor driver to save control ports and facilitate encoder signal monitoring. A model aircraft battery provides stable power supply, and the Ar-duino controller is simple and user-friendly, allowing quick prototyping and model building.

Features:

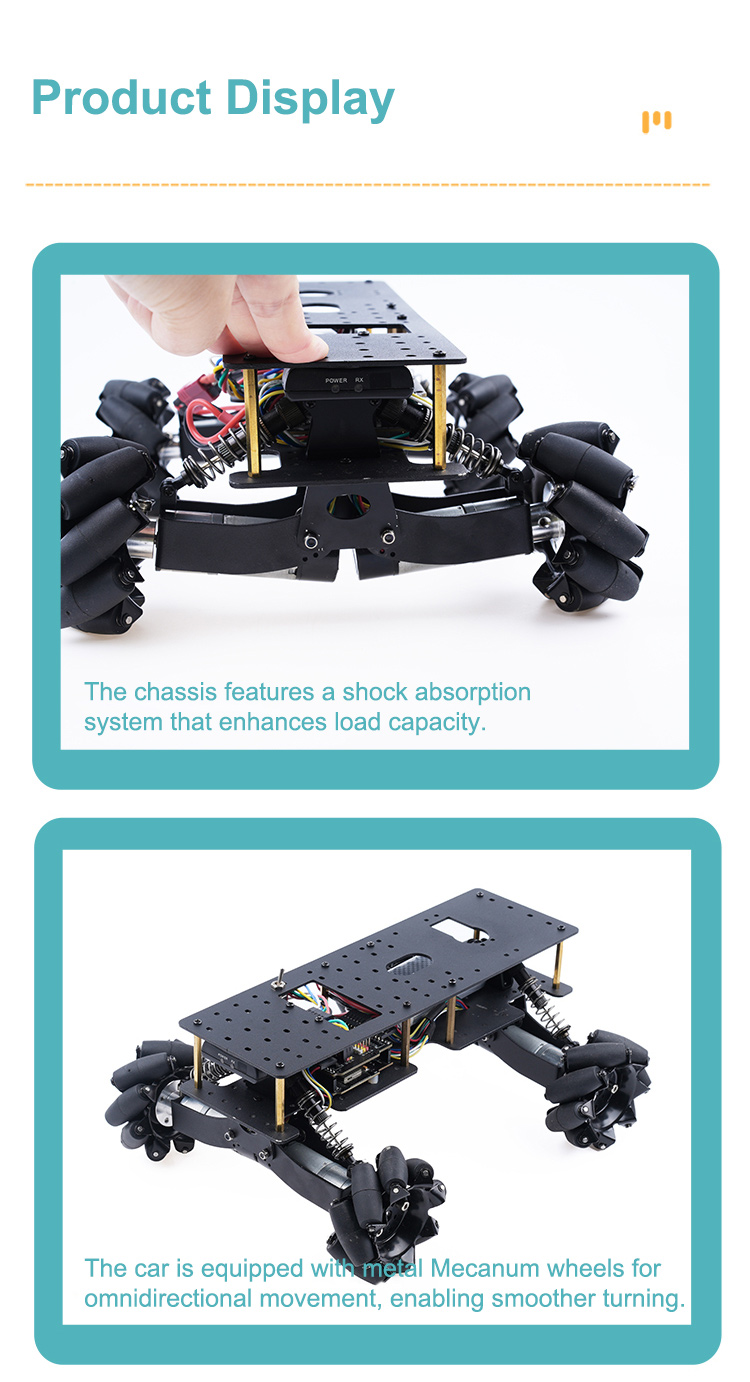

* The chassis features a shock absorption system that enhances load capacity
* The car is equipped with metal Mecanum wheels for omnidirectional movement, enabling smoother turning

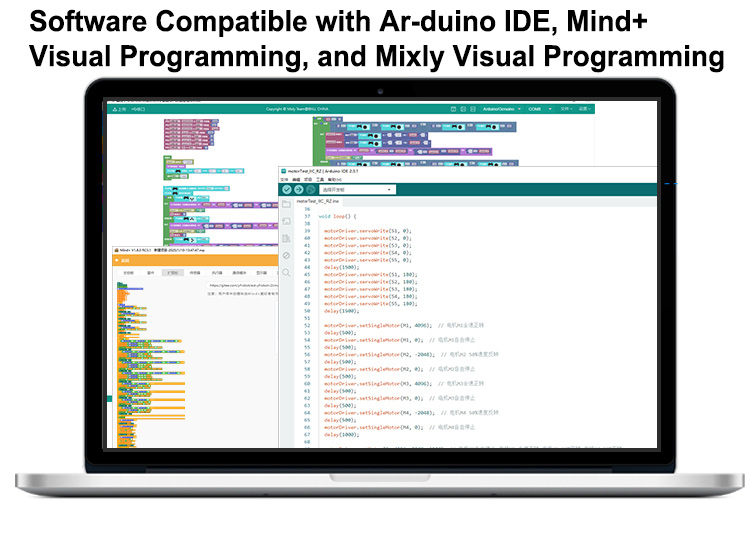

* Software is compatible with Ar-duino IDE, Mind+ visual programming, and Mixly visual programming

Package Includes:

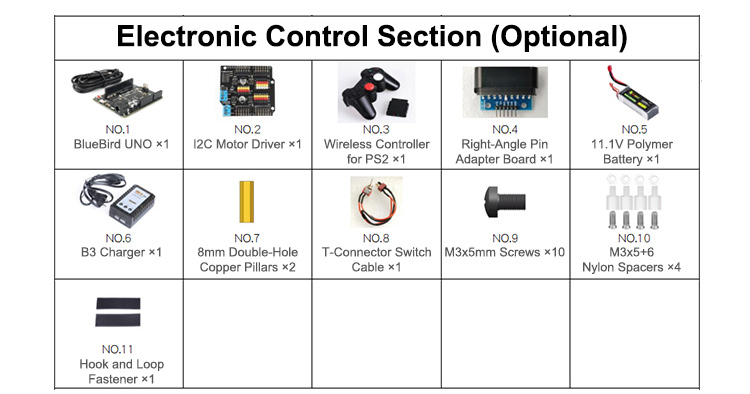

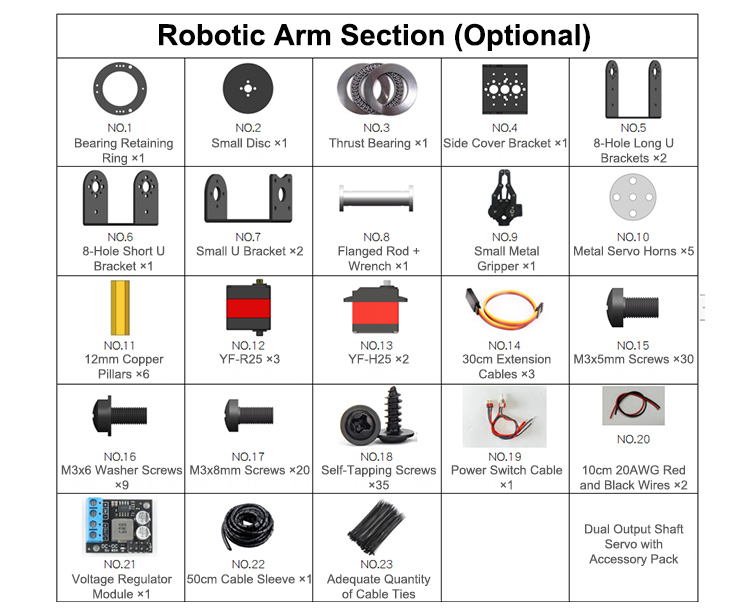

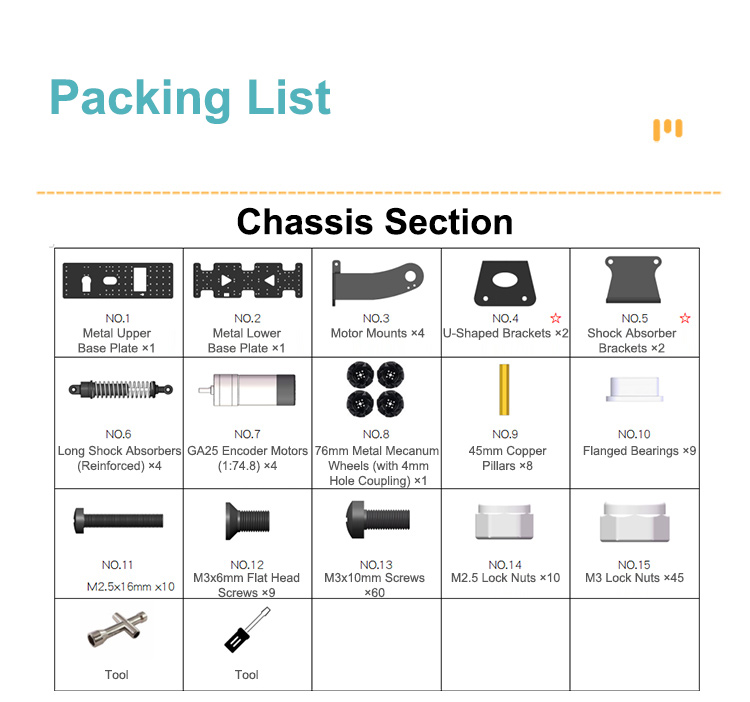

* 1 × Set of Chassis + Wireless Controller for PS2 + 4DOF Robotic Arm (See picture below for details)

Packaging Details:
* Weight: 3.1kg

Note:

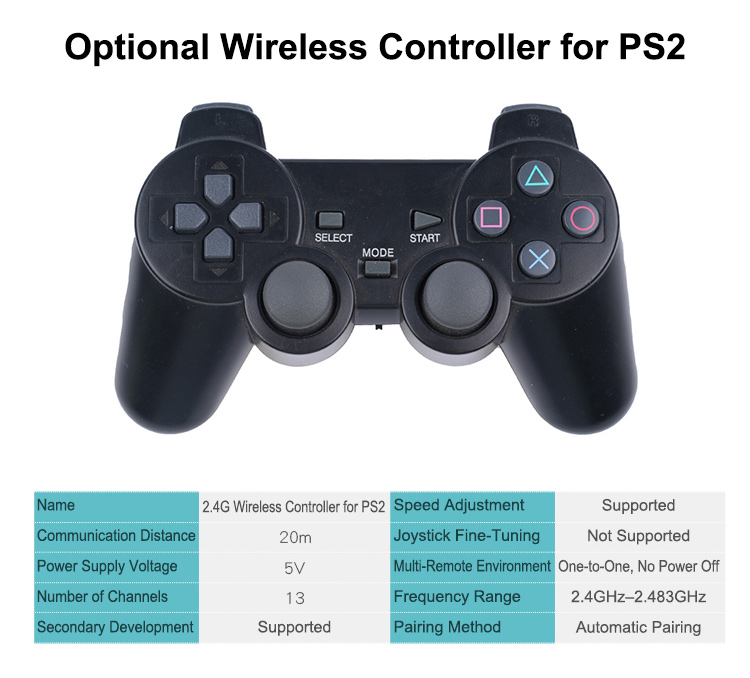

* Robotic arm and wireless controller are optional accessories. Corresponding versions are available for purchase in our store.
