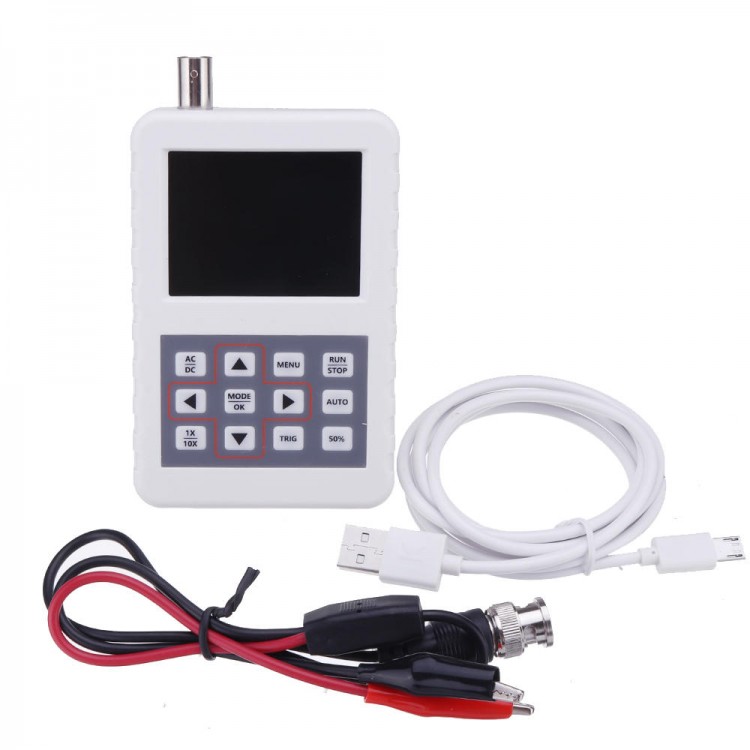

ADS2031H Mini Digital Oscilloscope 30MHz 200MS/s Sampling Rate w/ 2.4" Color LCD Screen 320*240

ADS2031H Mini Digital Oscilloscope 30MHz 200MS/s Sampling Rate w/ 2.4" Color LCD Screen 320*240

Features:
- Memory compression technology, waveform refresh screen does not flicker
- Afterglow display technology
- 2.4 inch color display screen
- ADS2031H: 30MHz analog bandwidth @200MS/s sampling rate
- Fast waveform storage
- Built-in 16M storage space enables storage of 500 waveform pictures
- Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions
- High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V
- Up to 11 parameters measurement: VPP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Time
- At any time, the waveform display (pause function) is frozen
- Equipped with high efficiency AUTO button
- Complete triggering function (single, normal, automatic)
- Day mode and night mode
- Ultra small volume, easy to carry

Specifications:
- Analog bandwidth: 30MHz (ADS2031H)
- Maximum real-time sampling rate: 200MS/s (ADS2031H)
- Vertical sensitivity: 50 mV/div ~ 200 V/div
- Horizontal time base range: 50S/div ~ 250nS/div
- Maximum input voltage: 40 V (1X probe), 800 V (10X probe)
- Storage depth: 40KB
- Input resistance: 1M
- ADC precision: 8bits
- Coupling mode: AC/DC
- Trigger mode: Single, Normal, Automatic
- Trigger edge: Ascending/descending edge
- External trigger voltage: 0-40 V
- Display Screen: 2.4 inch @ 320*240
- Size: 107 x 70 x 24mm
- Weight: 150g

Package Included:
- 1 x Handheld Oscilloscope
- 1 X Crocodile Clamp Probe
- 1 x Micro USB Data Cable
- 1 x User Manual
